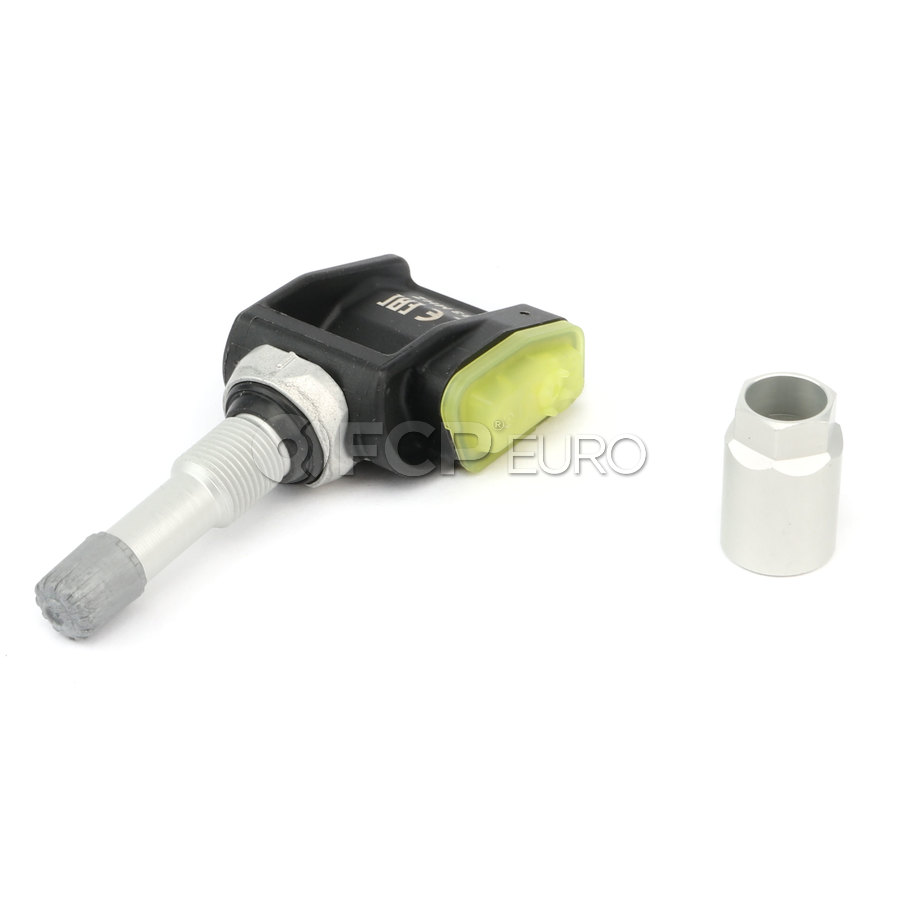

Mercedes TPMS Sensor - Schrader 0009050030

TPMS Relearn Procedure for Mercedes Benz Vehicles Factory Equipped with the Schrader 28214 OEM TPMS Sensor

1) Switch on the ignition

2) Press the left arrow or right arrow button on the multifunction steering wheel to select the menu Service.

3) Press the up arrow or down arrow button to select Tire Pressure.

4) Press the OK button. The current inflation pressure for each tire appears in the multifunction display or the following message appears in the multifunction display: Tire pressure will be displayed after driving a few minutes.

5) Press the down arrow button. The following message appears in the multifunction display: Use current pressure as new reference values. Press 'OK' to confirm.

6) Press the OK button. The following message appears in the multifunction display: Tire Press. Monitor Restarted

After driving for 10-15 minutes, the system verifies that the current tire inflation pressure are within the system's specified range. Afterwards the current tire inflation pressures are accepted as reference values.

7) If you wish to cancel, press the up arrow or return button to exit the menu screen.

Any other relearn instructions can be found at TPMSdirect.
