More Mercedes Cooling Fan Controller - Gates 0255453232
Gates
SKU: GAT-FCM124

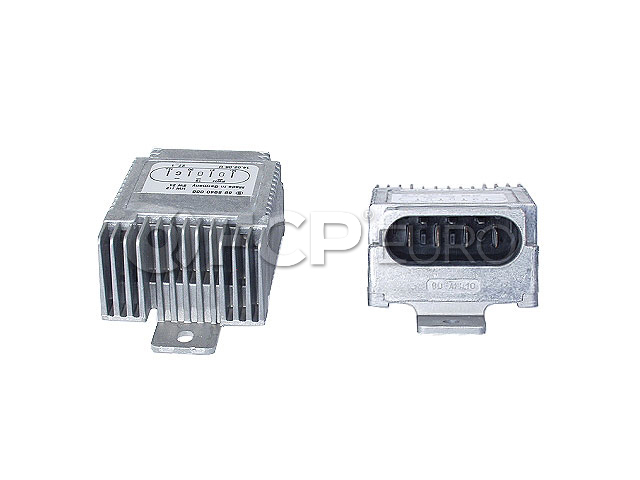

Mercedes Cooling Fan Controller - Gates 0255453232

E300, E320, E430, E55 AMG

Save for later
Backordered
No ETA
Price each: $405.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.

Thanks for signing up!

We will let you know when this product is back in stock.
Email Me When Available
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
GAT-FCM124
FCP Euro ID:
685653
GTIN / UPC:
00770075713128
Made in:
China
Quality:
Aftermarket

OE Numbers

0255453232, 025545323228, 0275458032, 0235456832, 0225456232, 0255453332, 025545333228

MFG Numbers

FCM124

Product Information

Recommended cooling fan test procedures

  • With the key on, press both auto buttons on the climate control head for more than 10 seconds. This is the auto command for high speed.

  • Use a Digital Multimeter (DMM) for voltage testing at the connector on the fan control unit. Pin 3 Red/Black (RD/BK) should be Battery Positive Voltage (B+) at all times.

  • Pin 6 Black/Red (BK/RD) should be B+ with the key in the on position (#2).

  • Pin 2 Brown (BN) should be constant ground.

  • Pin 5 Yellow/Blue (YE/BL) should be the control signal from the Powertrain Control Module (PCM), depending on the control signal from the Signal Activation Module (SAM), the voltage will vary between 2 V (low speed) and 11 V (high speed) approximately.

  • Check current draw on the cooling fan when jumping power and ground to it. Should be no more than 25 amps.

  • If all voltage and checks are OK, perform Diagnostic Trouble Code (DTC) and actual values test on the climate control head.

About Gates

Gates Corporation is the world’s leading manufacturer of power transmission belts and a premier global manufacturer of fluid power products. Their highly engineered products are critical components used in diverse industrial and automotive applications. Gates understands that the cost of failure is very high relative to the cost of their products. As an engineering leader with a strong foundation in research and development, Gates is committed to advancing the science of motion performance by developing safe, forward-thinking products, services, systems, and solutions. The company is Headquartered in Denver, Colorado, and employs over 14,000 people across 106 locations in 30 countries. Their core values are Integrity, Accountability, Initiative, Collaboration, Curiosity, and Quality.

Fits These Cars

Mercedes-Benz E300

  • 1996 Mercedes-Benz E300 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.0L L6 606.912 Diesel
  • 1997 Mercedes-Benz E300 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.0L L6 606.912 Diesel
  • 1998 Mercedes-Benz E300 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.0L L6 606.962 Diesel
  • 1999 Mercedes-Benz E300 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.0L L6 606.962 Diesel

Mercedes-Benz E320

  • 1996 Mercedes-Benz E320 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.2L L6 104.995 Gas
  • 1997 Mercedes-Benz E320 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.2L L6 104.995 Gas
  • 1998 Mercedes-Benz E320 4Matic Engine Cooling Fan Controller
    Automatic AWD Sedan 3.2L V6 112.947 Gas
  • 1998 Mercedes-Benz E320 4Matic Engine Cooling Fan Controller
    Automatic AWD Wagon 3.2L V6 112.947 Gas
  • 1998 Mercedes-Benz E320 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.2L V6 112.947 Gas
  • 1998 Mercedes-Benz E320 Engine Cooling Fan Controller
    Automatic RWD Wagon 3.2L V6 112.947 Gas
  • 1999 Mercedes-Benz E320 4Matic Engine Cooling Fan Controller
    Automatic AWD Sedan 3.2L V6 112.941 Gas
  • 1999 Mercedes-Benz E320 4Matic Engine Cooling Fan Controller
    Automatic AWD Wagon 3.2L V6 112.941 Gas
  • 1999 Mercedes-Benz E320 Engine Cooling Fan Controller
    Automatic RWD Sedan 3.2L V6 112.941 Gas
  • 1999 Mercedes-Benz E320 Engine Cooling Fan Controller
    Automatic RWD Wagon 3.2L V6 112.941 Gas

Mercedes-Benz E420

  • 1997 Mercedes-Benz E420 Engine Cooling Fan Controller
    Automatic RWD Sedan 4.2L V8 119.985 Gas

Mercedes-Benz E430

  • 1998 Mercedes-Benz E430 Engine Cooling Fan Controller
    Automatic RWD Sedan 4.3L V8 113.940 Gas
  • 1999 Mercedes-Benz E430 Engine Cooling Fan Controller
    Automatic RWD Sedan 4.3L V8 113.940 Gas
  • 2000 Mercedes-Benz E430 4Matic Engine Cooling Fan Controller
    Automatic AWD Sedan 4.3L V8 113.940 Gas
  • 2000 Mercedes-Benz E430 Engine Cooling Fan Controller
    Automatic RWD Sedan 4.3L V8 113.940 Gas
  • 2001 Mercedes-Benz E430 4Matic Engine Cooling Fan Controller
    Automatic AWD Sedan 4.3L V8 113.940 Gas
  • 2001 Mercedes-Benz E430 Engine Cooling Fan Controller
    Automatic RWD Sedan 4.3L V8 113.940 Gas
  • 2002 Mercedes-Benz E430 4Matic Engine Cooling Fan Controller
    Automatic AWD Sedan 4.3L V8 113.940 Gas
  • 2002 Mercedes-Benz E430 Engine Cooling Fan Controller
    Automatic RWD Sedan 4.3L V8 113.940 Gas

Mercedes-Benz E55 AMG

  • 1999 Mercedes-Benz E55 AMG Engine Cooling Fan Controller
    Automatic RWD Sedan 5.5L V8 113.984 Gas
  • 2000 Mercedes-Benz E55 AMG Engine Cooling Fan Controller
    Automatic RWD Sedan 5.5L V8 113.984 Gas
  • 2001 Mercedes-Benz E55 AMG Engine Cooling Fan Controller
    Automatic RWD Sedan 5.5L V8 113.984 Gas
  • 2002 Mercedes-Benz E55 AMG Engine Cooling Fan Controller
    Automatic RWD Sedan 5.5L V8 113.984 Gas
