Mahle
SKU: MAH-08306N0

BMW Piston Ring Set - Mahle 11251437077

323Ci, 323i, 323is, 325i, 325is, 328Ci, 328i, & more

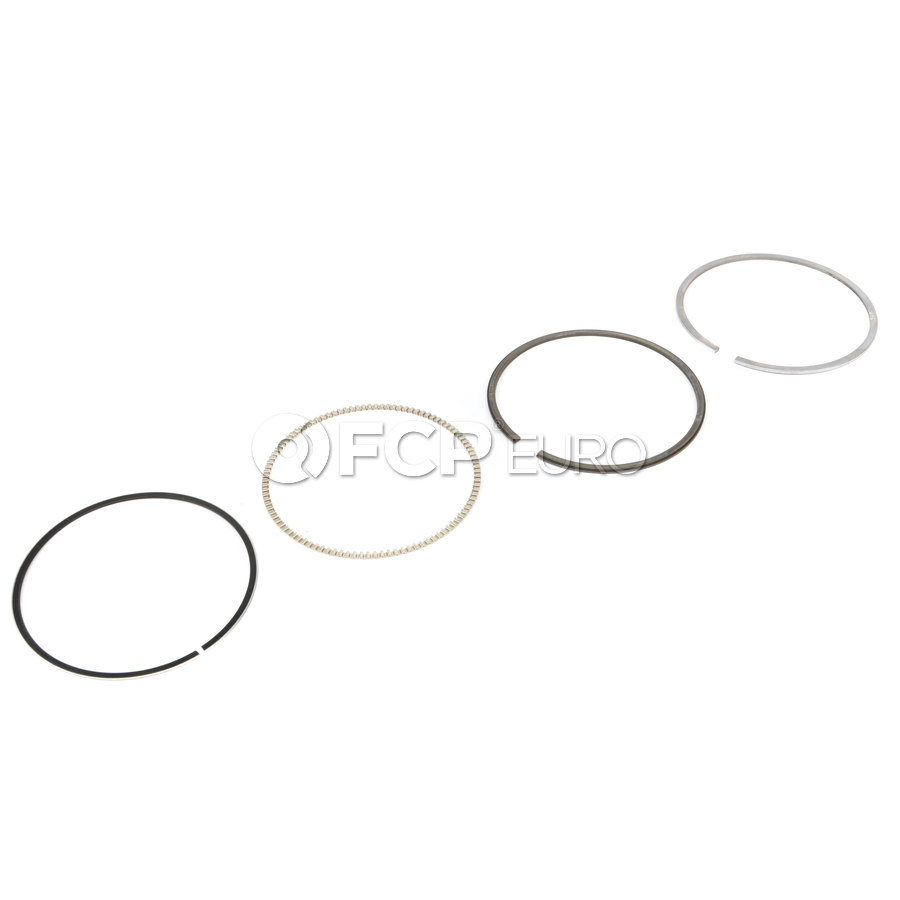

One piston ring set services one piston, includes compression, wiper, and oil control rings, 83.980mm



Available
Ships in 1 business day
Price each: $36.19
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
MAH-08306N0
FCP Euro ID:
637525
GTIN / UPC:
4009026577844
Made in:
Portugal
Quality:
OEM

OE Numbers

11251437077, 11251738736

MFG Numbers

08306N0

Product Information

The purpose of piston rings vary based on their installed position but generally, they are responsible for combustion chamber sealing (compression), oil control, and heat transfer. The three types of piston rings are as follows:

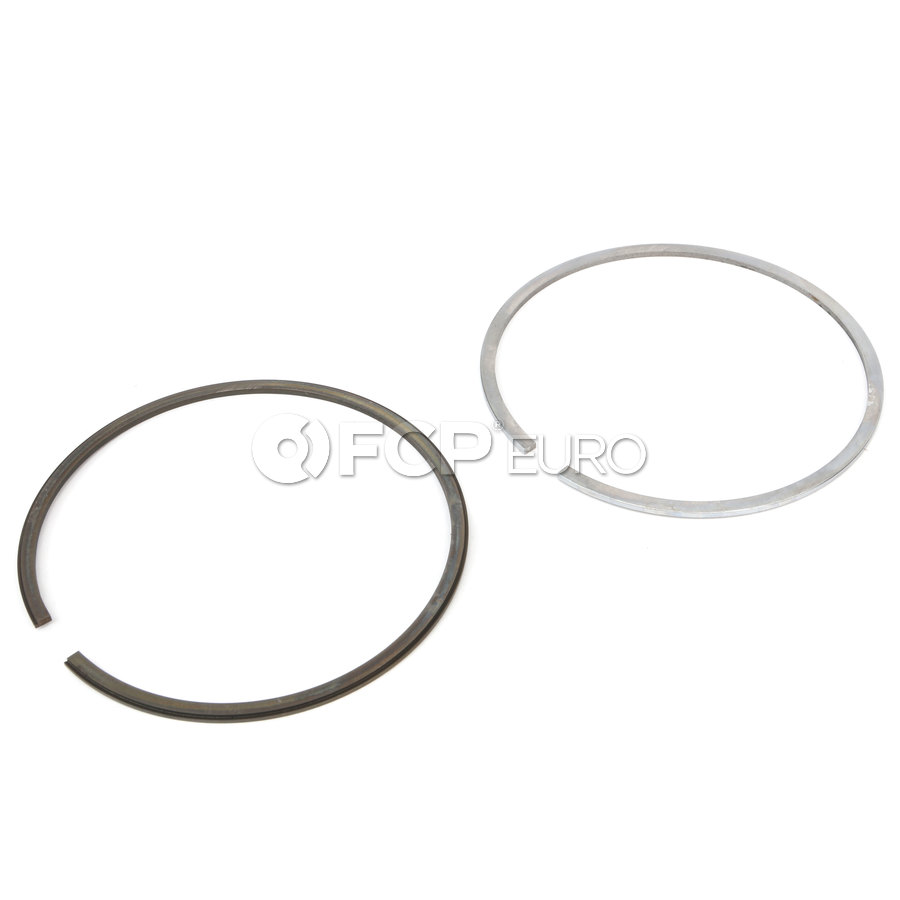

Compression ring (top): The compression ring is the closest ring to combustion gases and is exposed to the greatest amount of chemical corrosion and the highest operating temperature. The compression ring transfers a majority of the heat from the piston to the cylinder wall/engine block.

Wiper ring/secondary compression ring (middle): The wiper ring, sometimes called the scraper ring, Napier ring, or backup compression ring, is the next ring away from the cylinder head on the piston. The wiper ring provides a consistent thickness of oil film to lubricate the running surface of the compression ring.

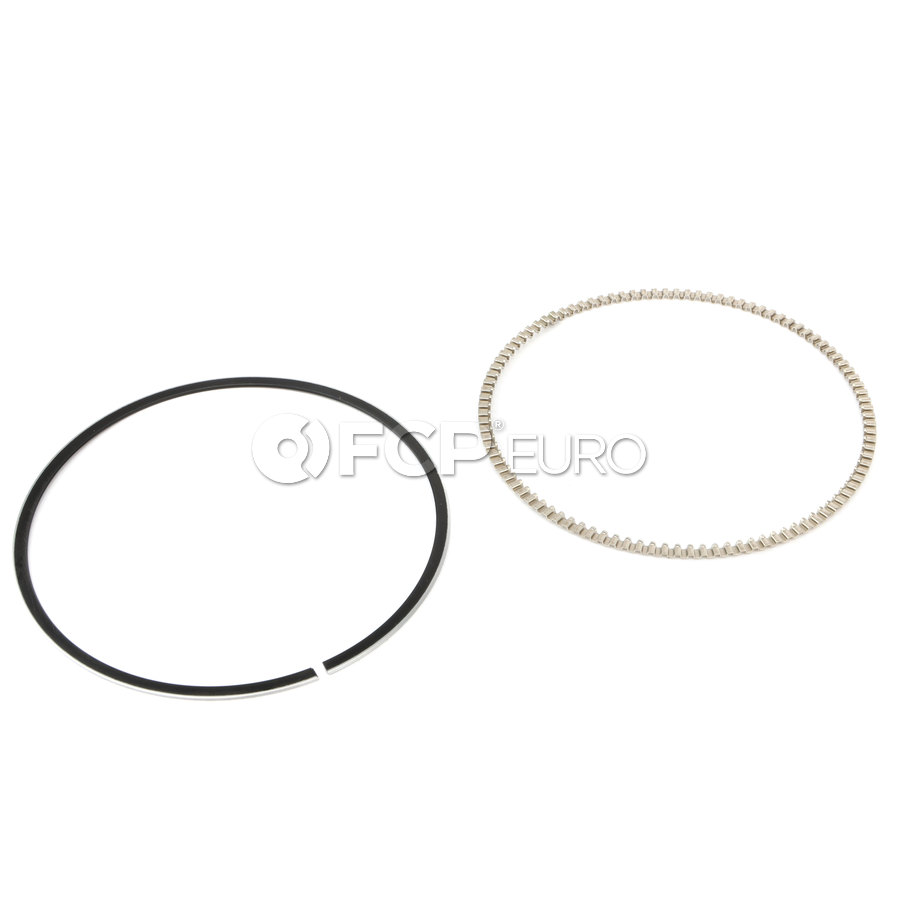

Oil control ring (bottom)- An oil ring includes two thin rails or running surfaces. Holes or slots cut into the radial center of the ring allow the flow of excess oil back to the oil reservoir. The oil control ring also has the most amount of surface pressure generally in order to control oil film.

Engine Piston Ring

An engine piston ring set consists of multiple rings that fit into grooves around each piston. Their main roles are to seal the combustion chamber, regulate oil consumption by scraping excess oil from cylinder walls, and transfer heat from the piston to the cylinder wall. Typically, a set includes compression rings (for sealing combustion gases) and oil control rings (for managing lubrication).

Engine Piston Ring Failure Symptoms
  • Excessive exhaust smoke (blue or gray), caused by oil leaking into the combustion chamber.
  • Loss of compression and power, leading to poor acceleration and misfires.
  • High oil consumption, requiring frequent top-ups due to oil burning inside the cylinders.

About Mahle

Mahle began in 1920 when pistons made of heavy gray cast iron were being used in internal combustion engines for automobiles and there was a need for a new design. The Mahle brothers countered this trend by producing light-alloy pistons at their small, newly established company however the technology was still finicky and problems come up frequently. They soon determined that they needed to come up with a solution to keep dirt and dust out of the engine so they eventually developed air and oil filters as well. Their perseverance paid off and the light-alloy pistons began to take over the market. Today, half of all automobiles produced worldwide contain MAHLE components. MAHLE offers an extensive range of parts for everyone including pistons, cylinder liners, piston ring sets, bearings, assemblies, valves, valve train components, and air, oil, fuel, and cabin air filters. Their catalog and online database of aftermarket engine components is an indispensable reference.

MAHLE Aftermarket is the world’s leading manufacturer of more than 100,000 OE and aftermarket parts, including MAHLE gaskets, engine bearings, turbochargers, thermostats, pistons and piston rings, valves, engine air and fluid filters, heavy-duty engine components, and rotating electric components such as starters, electric motors, and alternators.

Fits These Cars

BMW 325i

  • 1992 BMW 325i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50 Gas
    Notes: From 9/1992, 83.980 mm, Standard
  • 1992 BMW 325i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50 Gas
    Notes: From 9/1992, 83.980 mm, Standard
  • 1993 BMW 325i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M20 Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 325i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M20 Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 325i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 325i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 325i Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 325i Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 325i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 325i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 325i Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 325i Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 325i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 325i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard

BMW 325is

  • 1992 BMW 325is Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M50 Gas
    Notes: From 9/1992, 83.980 mm, Standard
  • 1992 BMW 325is Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M50 Gas
    Notes: From 9/1992, 83.980 mm, Standard
  • 1993 BMW 325is Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 325is Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 325is Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 325is Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 325is Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 325is Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard

BMW 525i

  • 1993 BMW 525i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 525i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 525i Engine Piston Ring Set
    Automatic RWD Wagon 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1993 BMW 525i Engine Piston Ring Set
    Manual RWD Wagon 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 525i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 525i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 525i Engine Piston Ring Set
    Automatic RWD Wagon 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1994 BMW 525i Engine Piston Ring Set
    Manual RWD Wagon 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 525i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 525i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 525i Engine Piston Ring Set
    Automatic RWD Wagon 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard
  • 1995 BMW 525i Engine Piston Ring Set
    Manual RWD Wagon 2.5L L6 M50TU Gas
    Notes: 83.980 mm, Standard

BMW 328i

  • 1996 BMW 328i Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1996 BMW 328i Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1996 BMW 328i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1996 BMW 328i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 328i Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 328i Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 328i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 328i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 328i Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 328i Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 328i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 328i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 328i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 328i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard

BMW 328is

  • 1996 BMW 328is Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1996 BMW 328is Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 328is Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 328is Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 328is Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 328is Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328is Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 328is Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard

BMW 528i

  • 1997 BMW 528i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1997 BMW 528i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 528i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 528i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 528i Engine Piston Ring Set
    Automatic RWD Wagon 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 528i Engine Piston Ring Set
    Manual RWD Wagon 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 528i Engine Piston Ring Set
    Automatic RWD Sedan 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 528i Engine Piston Ring Set
    Manual RWD Sedan 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 528i Engine Piston Ring Set
    Automatic RWD Wagon 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 528i Engine Piston Ring Set
    Manual RWD Wagon 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard

BMW 323i

  • 1998 BMW 323i Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 323i Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 323i Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 323i Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 323i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 323i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323i Engine Piston Ring Set
    Automatic RWD Sedan 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323i Engine Piston Ring Set
    Manual RWD Sedan 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323i Engine Piston Ring Set
    Automatic RWD Wagon 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323i Engine Piston Ring Set
    Manual RWD Wagon 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard

BMW 323is

  • 1998 BMW 323is Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW 323is Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 323is Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW 323is Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard

BMW Z3

  • 1998 BMW Z3 Roadster Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1998 BMW Z3 Roadster Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW Z3 Coupe Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW Z3 Coupe Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW Z3 Roadster Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW Z3 Roadster Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW Z3 Roadster Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 1999 BMW Z3 Roadster Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW Z3 Coupe Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW Z3 Coupe Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW Z3 Roadster Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW Z3 Roadster Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW Z3 Roadster Engine Piston Ring Set
    Automatic RWD Convertible 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW Z3 Roadster Engine Piston Ring Set
    Manual RWD Convertible 2.8L L6 M52TU Gas
    Notes: 83.980 mm, Standard

BMW 323Ci

  • 2000 BMW 323Ci Engine Piston Ring Set
    Automatic RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323Ci Engine Piston Ring Set
    Manual RWD Convertible 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323Ci Engine Piston Ring Set
    Automatic RWD Coupe 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 323Ci Engine Piston Ring Set
    Manual RWD Coupe 2.5L L6 M52 Gas
    Notes: 83.980 mm, Standard

BMW 328Ci

  • 2000 BMW 328Ci Engine Piston Ring Set
    Automatic RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard
  • 2000 BMW 328Ci Engine Piston Ring Set
    Manual RWD Coupe 2.8L L6 M52 Gas
    Notes: 83.980 mm, Standard

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by a customer
Is this a set for one piston or 1 engine (6 pistons)?
Answer (Posted by FCP Euro Products Team)
Piston ring sets service one piston.

FCP Euro Lifetime Replacement Guarantee

Every auto part you buy from FCP Euro is guaranteed for life, for as long as you own the vehicle. Our Lifetime Replacement Guarantee covers everything we sell, including wear-and-tear items like brake pads, gaskets, brake rotors, filters, and wiper blades!

Review our guarantee for complete details about the program.
