BMW Piston Ring Set - Genuine BMW 11257549510
  • Open uri20150723 29837 3gcglu
  • Open uri20150723 29837 1mhgveh
  • Open uri20150723 29837 1ye7kn0
  • Open uri20150723 10156 tblqd0
  • Open uri20150724 9309 1xjt3o6

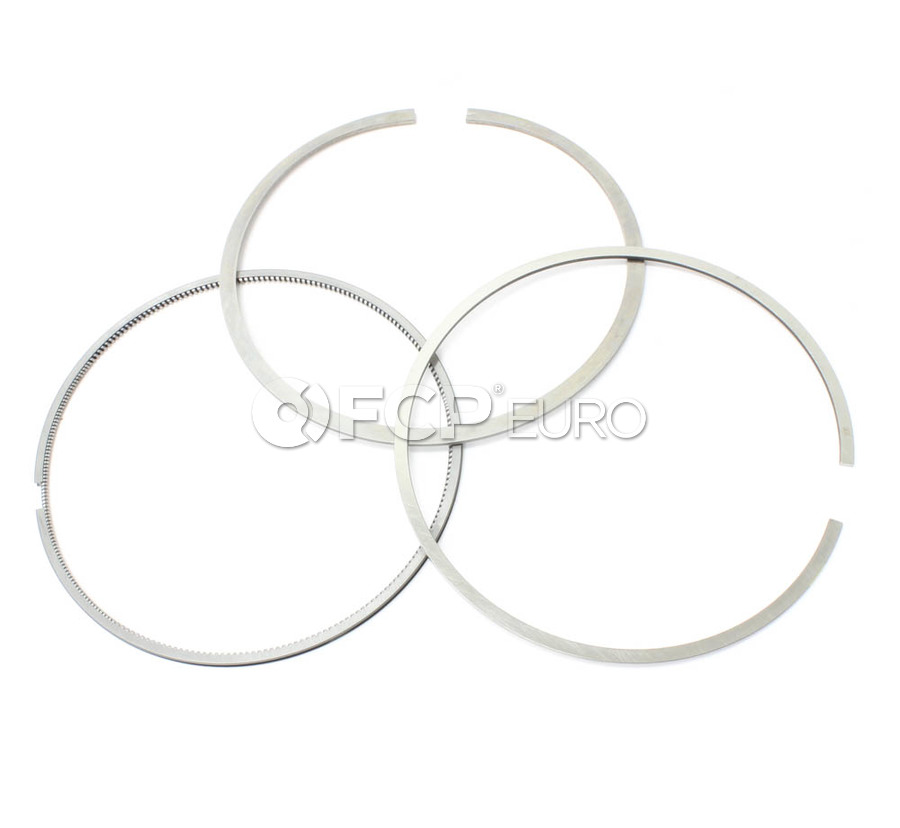

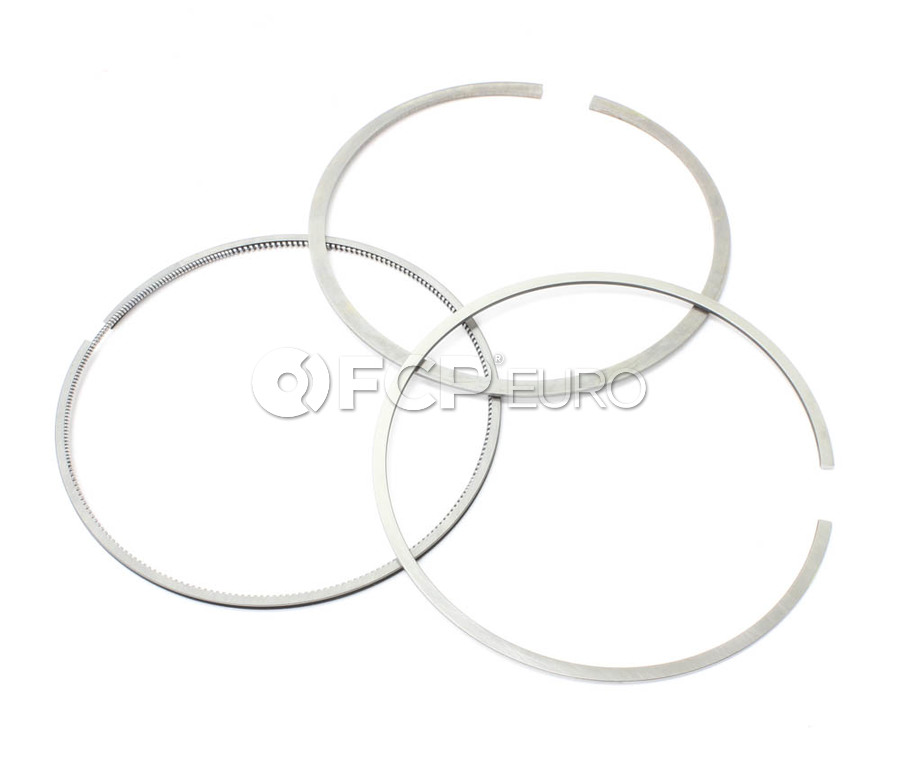

One piston ring set require per piston, includes compression ring, wiper ring, and oil ring

Piston rings seal the piston inside the cylinder bore. Generally speaking when doing an engine rebuild you will want to install new piston rings. There are three unique piston rings used in most applications. Each piston ring has it's own task.

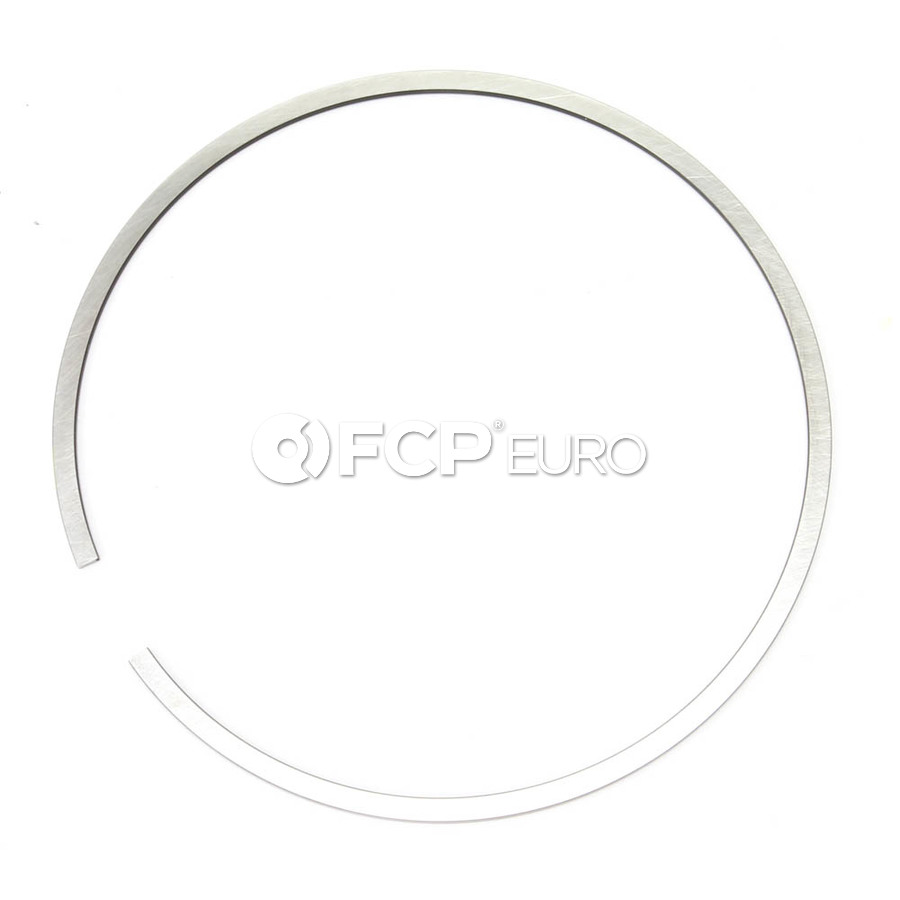

Compression ring:
The compression ring is the ring located at the top of the piston. Because of it's position it receives a majority of the abuse from the combustion process. The compression ring actually transfer about 70% of the heat in the cylinder to the engine block.

Wiper ring/secondary compression ring
The wiper ring, also known as the scraper ring or secondary compression ring, optimizes the distribution of oil film on the cylinder walls. it is also the secondary compression ring but sees significantly less stress from the combustion process. It is located in the second position on the piston.

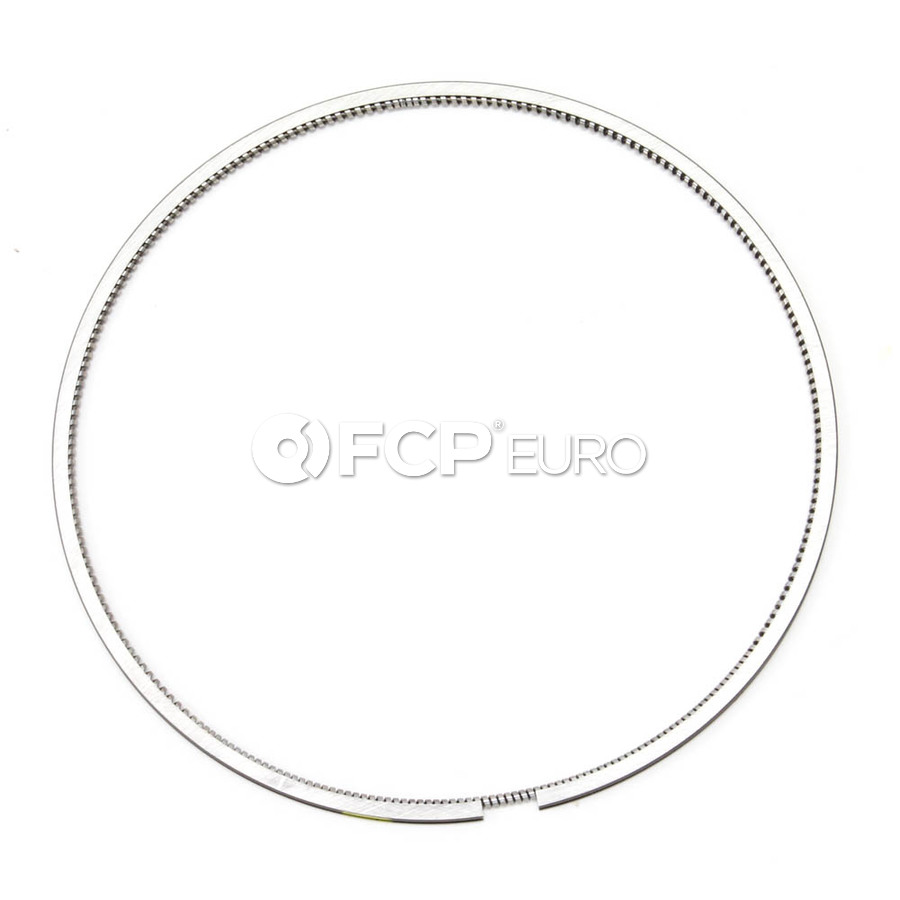

Oil ring
The oil ring works within the engine to lubricate the cylinder, cylinder walls, pistons, rings, and wrist pins. This ring keeps out out of the combustion process and also aid in thermal control by directing oil around the piston and other moving parts within the cylinder. This ring is located at the bottom of the piston

Fits These Cars:

2004 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8
2005 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8
2006 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8
2007 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8
2008 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8
2009 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8, Sub model: xDrive48i
2010 BMW X5 Engine Piston Ring Set
Engine base: 4.8L V8, Sub model: xDrive48i
2006 BMW 750Li Engine Piston Ring Set
Engine base: 4.8L V8
2007 BMW 750Li Engine Piston Ring Set
Engine base: 4.8L V8
2008 BMW 750Li Engine Piston Ring Set
Engine base: 4.8L V8
2006 BMW 750i Engine Piston Ring Set
Engine base: 4.8L V8
2007 BMW 750i Engine Piston Ring Set
Engine base: 4.8L V8
2008 BMW 750i Engine Piston Ring Set
Engine base: 4.8L V8
2006 BMW 550i Engine Piston Ring Set
Engine base: 4.8L V8
2007 BMW 550i Engine Piston Ring Set
Engine base: 4.8L V8
2008 BMW 550i Engine Piston Ring Set
Engine base: 4.8L V8
2009 BMW 550i Engine Piston Ring Set
Engine base: 4.8L V8
2010 BMW 550i Engine Piston Ring Set
Engine base: 4.8L V8
2006 BMW 650i Engine Piston Ring Set
Engine base: 4.8L V8
2007 BMW 650i Engine Piston Ring Set
Engine base: 4.8L V8
2008 BMW 650i Engine Piston Ring Set
Engine base: 4.8L V8
2009 BMW 650i Engine Piston Ring Set
Engine base: 4.8L V8
2010 BMW 650i Engine Piston Ring Set
Engine base: 4.8L V8
2007 BMW Alpina B7 Engine Piston Ring Set
Engine base: 4.4L V8
2008 BMW Alpina B7 Engine Piston Ring Set
Engine base: 4.4L V8
Product match fitment

BMW Piston Ring Set - Genuine BMW 11257549510

Brand:
Genuine bmw logoGenuine BMW
SKU #:
BMW-11257549510
Part:
Engine Piston Ring Set
OE Numbers:
11257549510, 11257543324
FCP ID:
222926
$103.99 MSRP: $125.99
Make sure this part fits.
Select your vehicle
Qty:
Available
Ships within 1 business day
  • Guaranteed to Fit, Guaranteed for Life We guarantee the fit and quality of our parts for life. If it doesn’t meet your expectations send it back for a replacement or refund. Learn more
  • Fitment Verified This product application guide has been tested to ensure it will accurately fit the cars outlined in our fitment guide.
  • Shop With Confidence We respect your privacy; we always keep your information confidential.
  • What If I Need to Return This Item? Not a problem! If you are not happy with your purchase, we will gladly help you exchange or return your items, provided you follow the guidelines outlined in our Returns Policy.
Give Us a Call
(877) 634-0063
Whether you have technical questions for our ASE certified staff or you need help fulfilling an order, we're here to help you.
Email Us Live Chat

Customer Reviews

Write a Review No reviews yet. Would you like to be the first one?
Keep me posted
Sign up for Special Offers, News, & Promos from FCP.
