Elring
BMW Engine Oil Filter Housing Gasket Kit - 11428637821KT7
X3
Comprehensive oil filter housing reseal kit including all gaskets required.
Description
Details
- SKU:
- KIT-11428637821KT7
- FCP Euro ID:
- Quality:
- Aftermarket
OE Numbers
- 11428637821, 11427537293, 11428637820, 11427525335, 12618611273, 12612367061, 12617620512, 12617568480, 12611710509, 12610150684, 12611730160, NUC100280L, 17222245358, 17220154348, 17211709461, 11422242686, 17228604345, 17222245036, 12310392568, 11427540759, 11427540758, 11427540763, 11427542983
MFG Numbers
- 632.090, 596.450, ELP0140P, 17222245358-EC, HWK0004, 1895001150

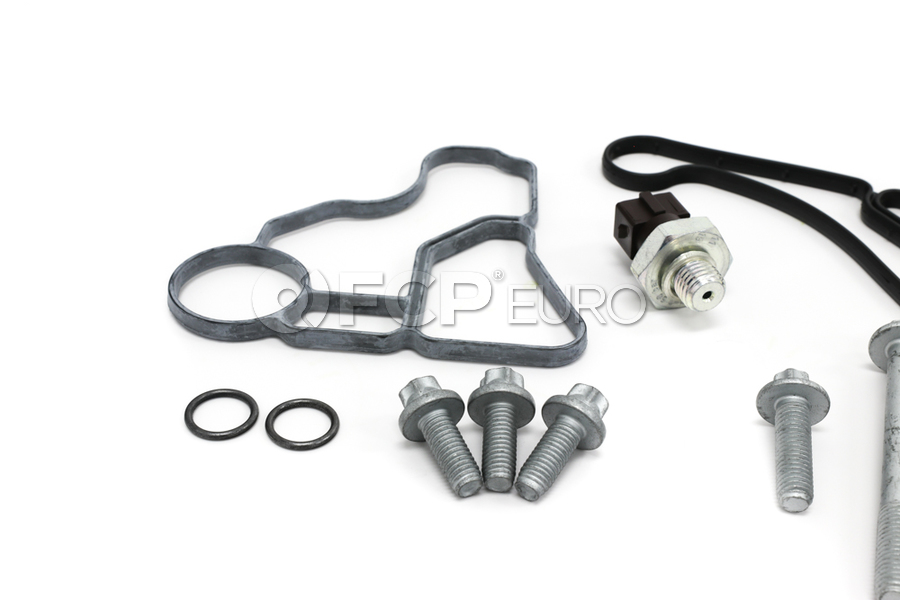

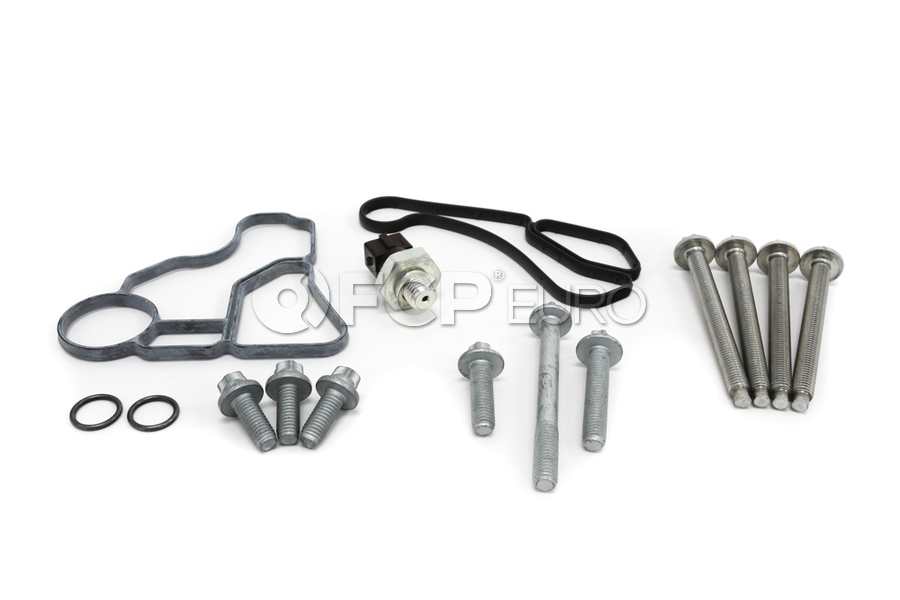

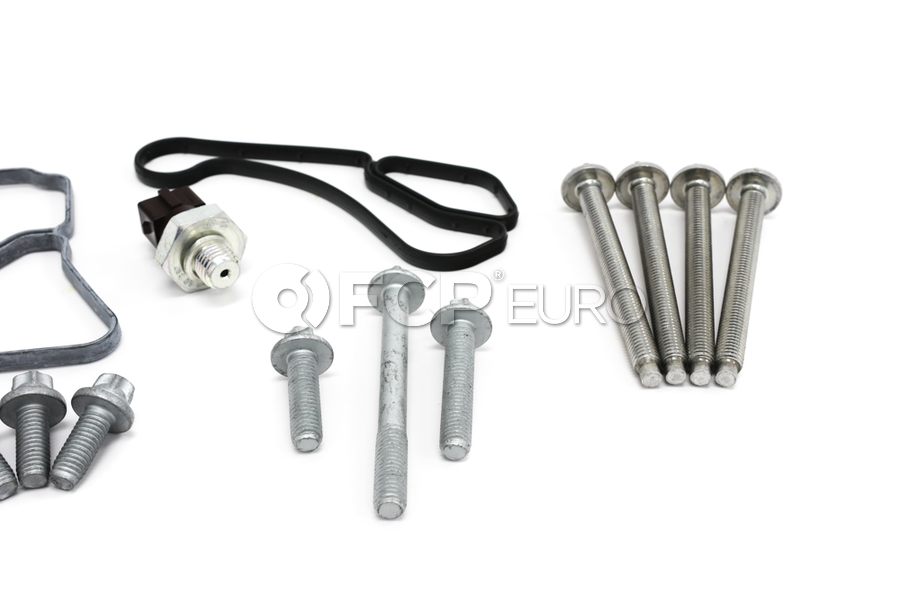

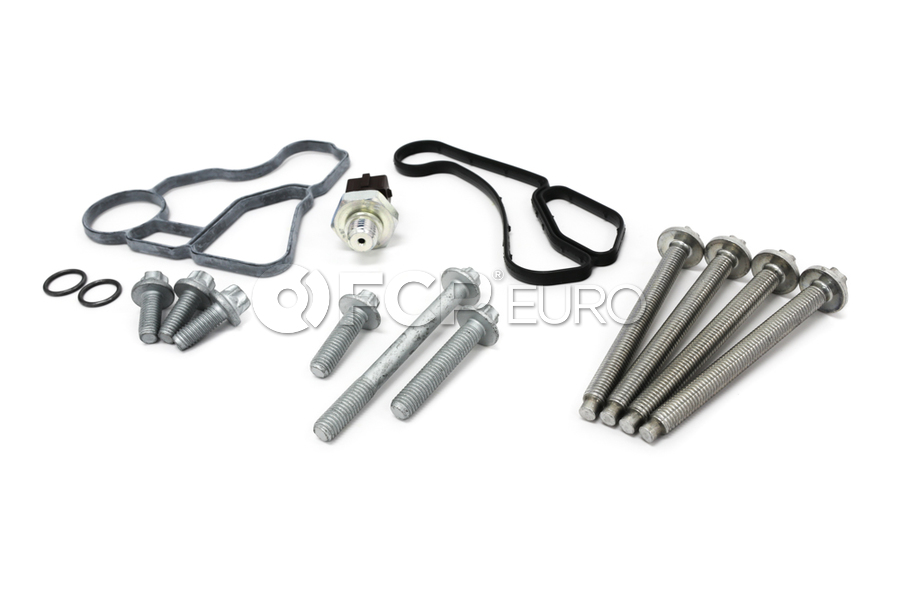

This Kit Includes
| Qty | Part | SKU | Brand | Price |
|---|---|---|---|---|
| 1 | Engine Oil Filter Housing Gasket | ELR-632090 |
Elring
|
$13.20 |
| 1 | Engine Oil Cooler Gasket | ELR-596450 |
Elring
|
$12.74 |
| 1 | Engine Oil Pressure Switch | CRP-ELP0140P |
Rein
|
$5.45 |
| 2 | Engine Oil Cooler Line O-Ring | CRP-17222245358EC |
CRP
|
$3.24 |
| 1 | Alternator Bolt | CRP-HWK0004 |
Rein
|
$11.72 |
| 1 | Engine Oil Filter Housing Bolt | EKO-1895001150 |
OE Supplier
|
$45.99 |
Product Information
Oil filter housing gasket leaks are a major issue on BMW's N5X family of engines. Outside of making a mess of the engine, it can also lead to a majorly expensive repair if the issue is not addressed. It is known that oil leaks from the oil filter housing gasket can cause the serpentine belt to swell and slip off the crank pulley. Because of the design of the crank pulley, the belt can only slip off behind the pulley between the engine block. If this happens the belt will be shredded and forced through the front crank seal. This is a preventable problem by repairing an oil filter housing leak.
The seal that causes this problem, to begin with, is a soft rubber seal that sits in the filter housing and seals it to the cylinder head. Over time this seal becomes brittle and shrinks losing its ability to make a leak-free seal. This, in turn, allows oil to leak down the side of the engine. Bad oil filter housing leaks can cause a lot of issues later on if not addressed as soon as possible. FCP Euro recommends inspecting the oil filter housing and general cleanliness of the engine bay on a regular basis.
Please note: Oil filter housing bolts to cylinder head should be torqued to 22Nm (~16 ft lbs) and the oil cooler to oil filter housing bolts should be torqued to 16Nm (~12 ft lbs). The rearward oil filter housing bolt can only be removed using a universal E10 e torx socket (CTA-2476). The replacement alternator mounting bolts are included in order to make room for removal of the oil filter housing as well as clean up oil that has collected behind and under the alternator. These aluminum mounting bolts are torqued to 10Nm (~7 ft lbs) + 180°.
About Elring
Elring was founded in 1879 by Paul Lechler. Elring "the original" is their trademark, because as an OEM (Original Equipment Manufacturer) to so many automobile manufacturers, there is a chance Elring provided the original gasket. Elring is widely known as an OEM replacement provider of quality parts for European model vehicles. They are mainly producers of gaskets, seals, and other high end supporting components. With locations around the globe, Elring is already established as one of the greatest producers of parts for European vehicles including luxury makes such as BMW, Mercedes, Audi, Volvo and many others. Elring - "Das Original".
As an automotive supplier, ElringKlinger has become a trusted partner to its customers – with a firm commitment to shaping the future of mobility. Be it optimized combustion engines, high-performance hybrids, or environmentally-friendly battery and fuel cell technology, ElringKlinger provides innovative solutions for all types of drive systems. ElringKlinger’s lightweighting concepts help to reduce the overall weight of vehicles. As a result, vehicles powered by combustion engines consume less fuel and emit less CO2, while those equipped with alternative propulsion systems benefit from an extended range. In response to increasingly complex combustion engine technology, the Group also continues to make refinements with regard to gaskets in order to meet the highest possible standards. This is complemented by solutions centered around thermal and acoustic shielding technology. Additionally, the Group‘s portfolio includes products made of the high-performance plastic PTFE which are also marketed to industries beyond the automotive sector. These efforts are supported by a dedicated workforce of more than 10,000 employees at 45 ElringKlinger Group locations around the globe.
The Elring aftermarket brand offers an all-embracing package: original equipment quality, functional reliability, and premium, end-to-end service. This includes, for example, sales and technical training, service information, exploded-view drawings for trucks and vans, monthly newsletters focusing on engine sealing solutions, an online sealing compound wizard, professional installation videos, the Elring Academy, the training truck, and much more besides.
Original Elring products are acknowledged among dealers, mechanics, and customers around the globe. These products include cylinder-head and sealing systems, oil seals and valve stem seals, sealing compounds, and threadlockers as well as cylinder-head bolt and complete gasket sets – for full- and partial servicing.
Fits These Cars
BMW X3
-
2007 BMW X3 3.0si Engine Oil Filter Housing Gasket KitAutomatic AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2007 BMW X3 3.0si Engine Oil Filter Housing Gasket KitManual AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2008 BMW X3 3.0si Engine Oil Filter Housing Gasket KitAutomatic AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2008 BMW X3 3.0si Engine Oil Filter Housing Gasket KitManual AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2009 BMW X3 xDrive30i Engine Oil Filter Housing Gasket KitAutomatic AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2009 BMW X3 xDrive30i Engine Oil Filter Housing Gasket KitManual AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2010 BMW X3 xDrive30i Engine Oil Filter Housing Gasket KitAutomatic AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A) -
2010 BMW X3 xDrive30i Engine Oil Filter Housing Gasket KitManual AWD Sport Utility 3.0L L6 N52 Gas
Notes: w/ High speed synchronisation (S840A)
