Genuine BMW
BMW Fuse Box - Genuine BMW 12907543668
525i, 530i, 545i, 550i, 645Ci, 650i

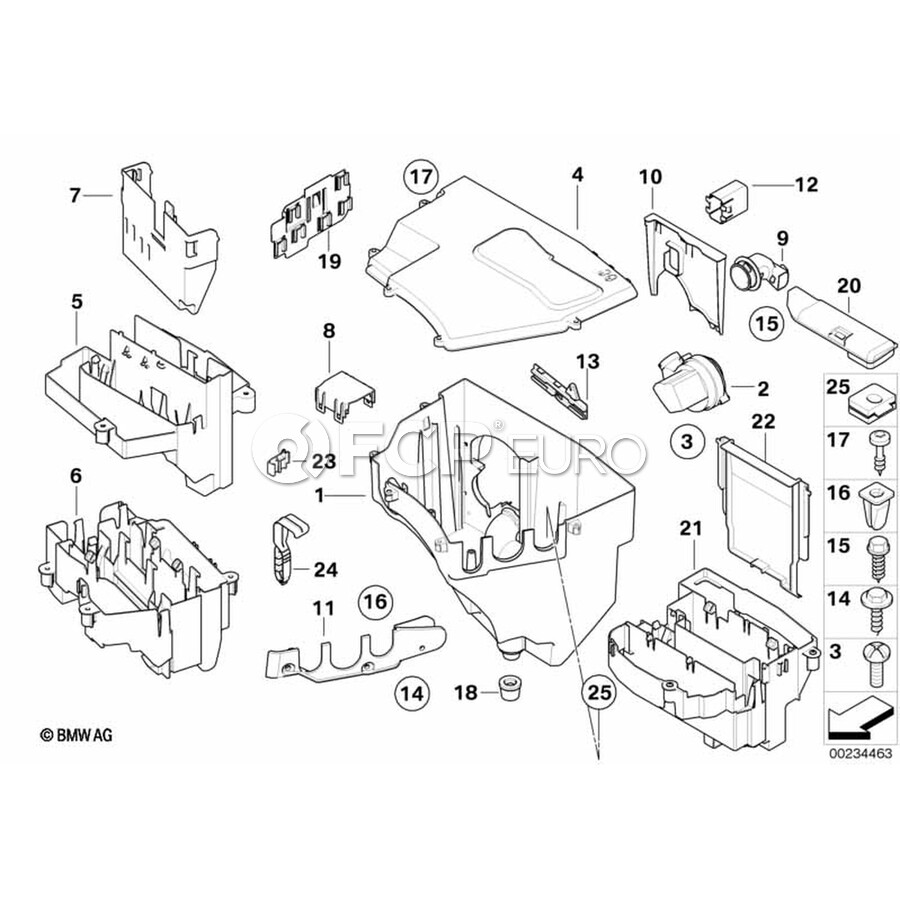

Position 1 in the diagram
Description
Details
- SKU:
- BMW-12907543668
- FCP Euro ID:
- 770433
- Quality:
- Genuine
OE Numbers
- 12907543668
MFG Numbers
- 12907543668
Product Information
BMW Fuse Box diagram for 525i, 530i, 545i, 550i, 645Ci, 650i
An fuse box is a central hub that houses the fuses, relays, and sometimes circuit breakers that protect a vehicle’s electrical circuits. Most vehicles have at least two fuse boxes: one in the engine compartment (for high-power systems like cooling fans, ABS, and headlights) and one inside the cabin (for accessories like the radio, power windows, and interior lights).
Fuse Box Failure Symptoms- Multiple electrical components stop working – several systems fail at once due to fuse box issues.
- Burnt or melted fuse box – visible damage or burning smell from overheated connections.
- Intermittent electrical problems – flickering lights, accessories cutting in and out, or random failures.
About Genuine BMW
The original parts used by BMW to build your car are available as replacement parts under the “Genuine BMW” brand. When ordering a Genuine BMW part you are guaranteed to get the same part that you would pick up from your local dealerships part department. Genuine BMW parts have been built to BMW’s stringent standards and are the same quality of the original parts used to build your Ultimate Driving Machine.
You may not realize this, but the parts that make up your BMW are not necessarily manufactured by BMW. No cause for concern, as BMW designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for BMW for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine BMW parts box and find an OEM branded part inside, simply with the addition of a BMW logo.
Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.
Fits These Cars
BMW 525i
-
2005 BMW 525i Fuse BoxAutomatic RWD Sedan 2.5L L6 M54 Gas
Notes: CONTROL MODULE BOX, Lower housing -
2005 BMW 525i Fuse BoxManual RWD Sedan 2.5L L6 M54 Gas
Notes: CONTROL MODULE BOX, Lower housing
BMW 530i
-
2005 BMW 530i Fuse BoxAutomatic RWD Sedan 3.0L L6 M54 Gas
Notes: CONTROL MODULE BOX, Lower housing -
2005 BMW 530i Fuse BoxManual RWD Sedan 3.0L L6 M54 Gas
Notes: CONTROL MODULE BOX, Lower housing
BMW 545i
-
2005 BMW 545i Fuse BoxAutomatic RWD Sedan 4.4L V8 N62 Gas
Notes: CONTROL MODULE BOX, Lower housing -
2005 BMW 545i Fuse BoxManual RWD Sedan 4.4L V8 N62 Gas
Notes: CONTROL MODULE BOX, Lower housing
BMW 645Ci
-
2005 BMW 645Ci Fuse BoxAutomatic RWD Convertible 4.4L V8 N62 Gas
Notes: CONTROL MODULE BOX -
2005 BMW 645Ci Fuse BoxManual RWD Convertible 4.4L V8 N62 Gas
Notes: CONTROL MODULE BOX -
2005 BMW 645Ci Fuse BoxAutomatic RWD Coupe 4.4L V8 N62 Gas
Notes: CONTROL MODULE BOX -
2005 BMW 645Ci Fuse BoxManual RWD Coupe 4.4L V8 N62 Gas
Notes: CONTROL MODULE BOX
BMW 650i
-
2006 BMW 650i Fuse BoxAutomatic RWD Convertible 4.8L V8 N62B48B Gas
Notes: CONTROL MODULE BOX, 4.8 liter -
2006 BMW 650i Fuse BoxManual RWD Convertible 4.8L V8 N62B48B Gas
Notes: CONTROL MODULE BOX, 4.8 liter -
2006 BMW 650i Fuse BoxAutomatic RWD Coupe 4.8L V8 N62B48B Gas
Notes: CONTROL MODULE BOX, 4.8 liter -
2006 BMW 650i Fuse BoxManual RWD Coupe 4.8L V8 N62B48B Gas
Notes: CONTROL MODULE BOX, 4.8 liter
