Genuine BMW
SKU: BMW-11247834310

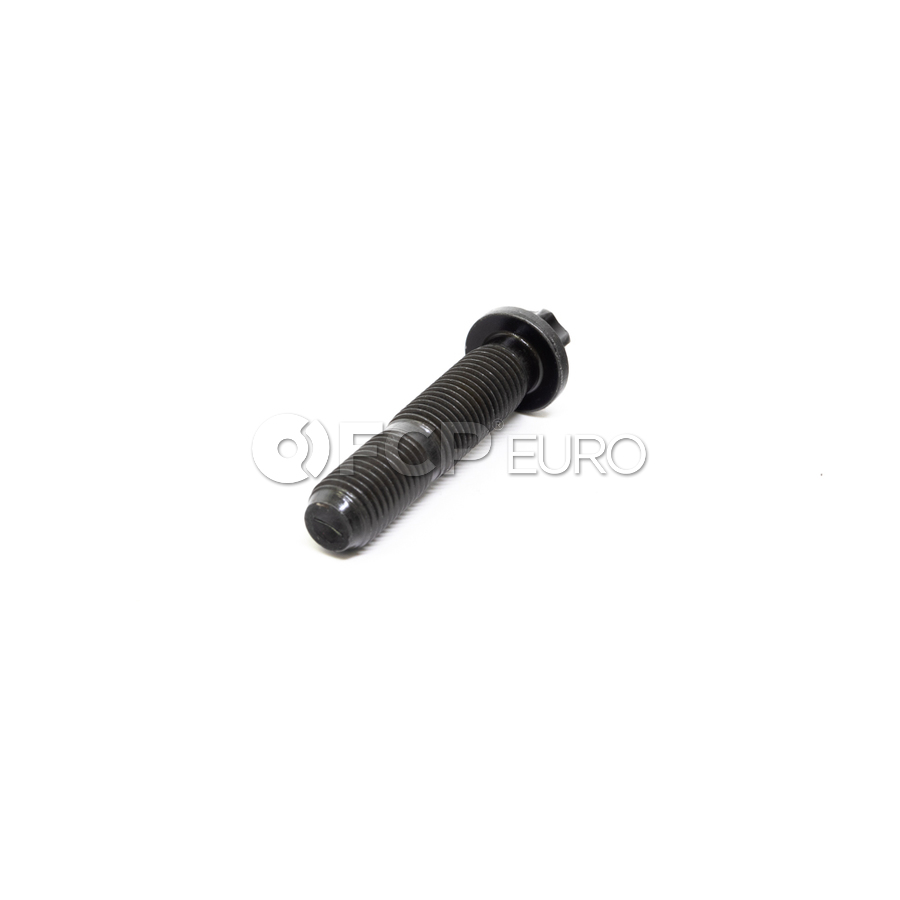

BMW Connecting Rod Bolt - Genuine BMW 11247834310

M3, Z3, Z4



Available
In Stock
Price each: $8.16
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
BMW-11247834310
FCP Euro ID:
211812
Made in:
Germany
Quality:
Genuine

OE Numbers

11247834310

MFG Numbers

N/A

Product Information

M10x1.25mm E12 torx bolt, secures the connecting rod end cap to the connecting rod, one time use only

This bolt is designed to secure the rod bearing cap to the connecting rod. When replacing rod bearings this bolt will need to be replaced. Please note that around 2/2003 BMW switched the connecting rods on S54 engines. Originally equipped connecting rods used a double hex M11x1.25mm. This bolt is to be reused and cannot be replaced. Later built S54 engines use an E12, M10x1.25 bolt which can only be used with updated connecting rods. This bolt must be replaced with each use.

Note: The torquing procedure is a 3 step process typical of any torque to yield bolt:

First sequence:
1) Jointing torque - 5 Nm (~4 ft lbs)
2) Setting torque - 30 Nm (~15 ft lbs)
3) Angle of rotation - 105 ° in single stroke
4) Back off bolt approximately one turn and then re tighten again in second sequence

Second sequence:
1) Jointing torque - 5 Nm (~4 ft lbs)
2) Setting torque - 30 Nm (~15 ft lbs)
3) Angle of rotation - 105 ° in single stroke
4) Back off bolt approximately one turn and then re-tighten again in third sequence

Third sequence:
1) Jointing torque - 5 Nm (~4 ft lbs)
2) Setting torque - 30 Nm (~15 ft lbs)
3) Angle of rotation - 105 ° in single stroke

About Genuine BMW

The original parts used by BMW to build your car are available as replacement parts under the “Genuine BMW” brand. When ordering a Genuine BMW part you are guaranteed to get the same part that you would pick up from your local dealerships part department. Genuine BMW parts have been built to BMW’s stringent standards and are the same quality of the original parts used to build your Ultimate Driving Machine.

You may not realize this, but the parts that make up your BMW are not necessarily manufactured by BMW. No cause for concern, as BMW designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for BMW for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine BMW parts box and find an OEM branded part inside, simply with the addition of a BMW logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

BMW M3

  • 2001 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2001 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2002 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2002 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2003 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
    Notes: Up to 2/2003, Only applies to connecting rod set p/n 11247834437
  • 2003 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
    Notes: Up to 2/2003, Only applies to connecting rod set p/n 11247834437
  • 2004 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2004 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2005 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2005 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2006 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2006 BMW M3 Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas

BMW Z3

  • 2001 BMW Z3 M Coupe Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2001 BMW Z3 M Roadster Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2002 BMW Z3 M Coupe Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods
  • 2002 BMW Z3 M Roadster Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
    Notes: Only applies to connecting rod set p/n 11247834437, will not work with originally equipped connecting rods

BMW Z4

  • 2006 BMW Z4 M Coupe Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2006 BMW Z4 M Roadster Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2007 BMW Z4 M Coupe Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2007 BMW Z4 M Roadster Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2008 BMW Z4 M Coupe Engine Connecting Rod Bolt
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2008 BMW Z4 M Roadster Engine Connecting Rod Bolt
    Manual RWD Convertible 3.2L L6 S54 Gas
