OE Supplier
SKU: KIT-11617533400KT4

BMW Cold Climate PCV Breather System Kit - OE Supplier 11617533400KT4

X3



Available
Ships in 1 business day
Price each: $282.33
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
KIT-11617533400KT4
FCP Euro ID:
Quality:
OEM

OE Numbers

11157532629, 11617504536, 11431740045, 23211202752, 11617502761, 11611735479, 11611726323, 13543412292, 13547504729, 11431717666, 11430306594, 11611437453, 11617533399, 11617533400, 11617533398

MFG Numbers

ABV0131, 11431740045, 780.154, 359390, 40-76014-20, ABV0124, AS821M

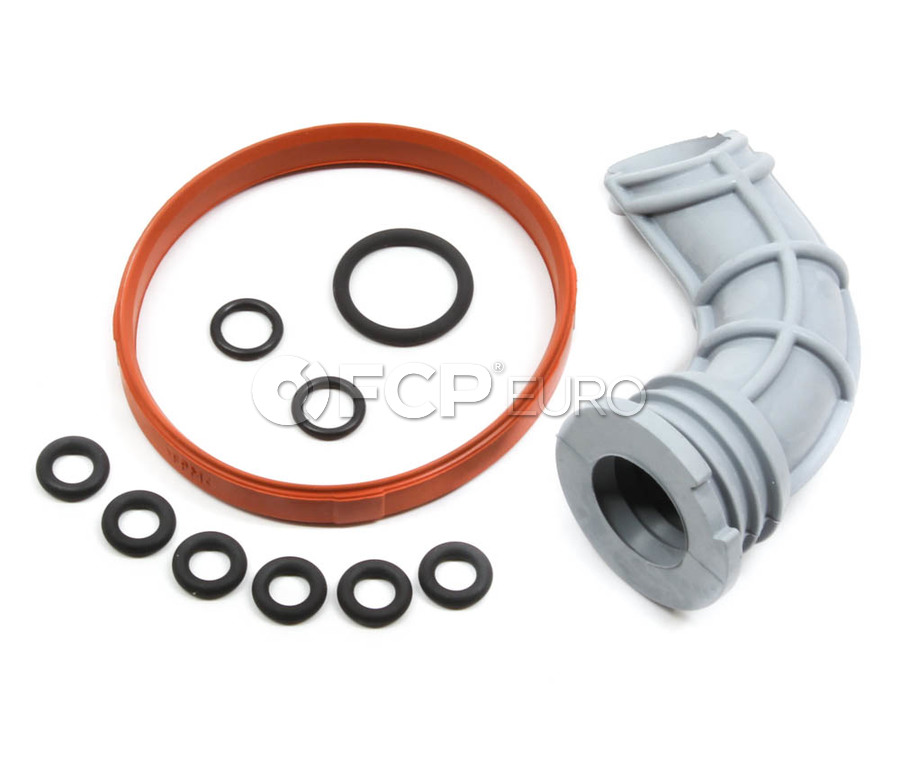

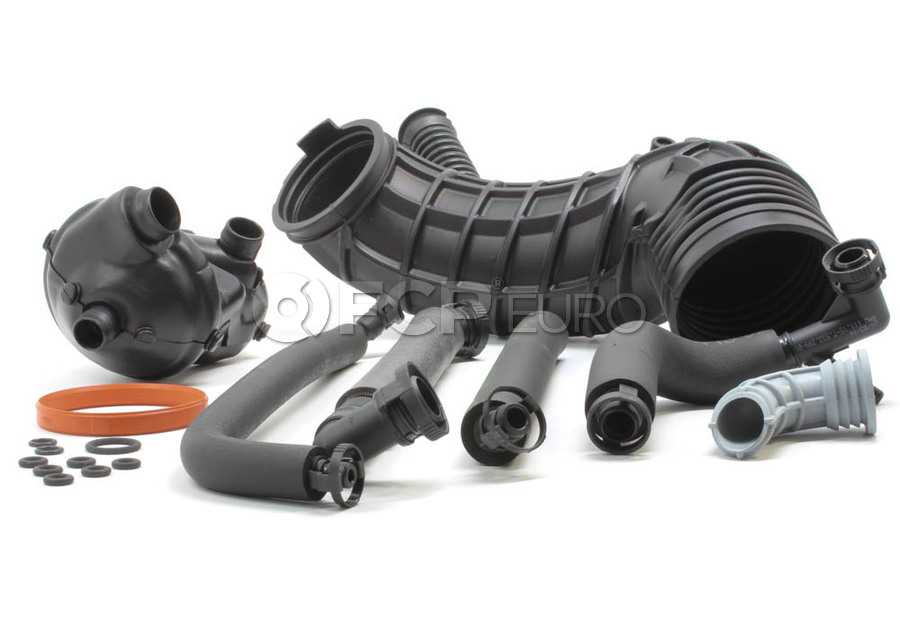

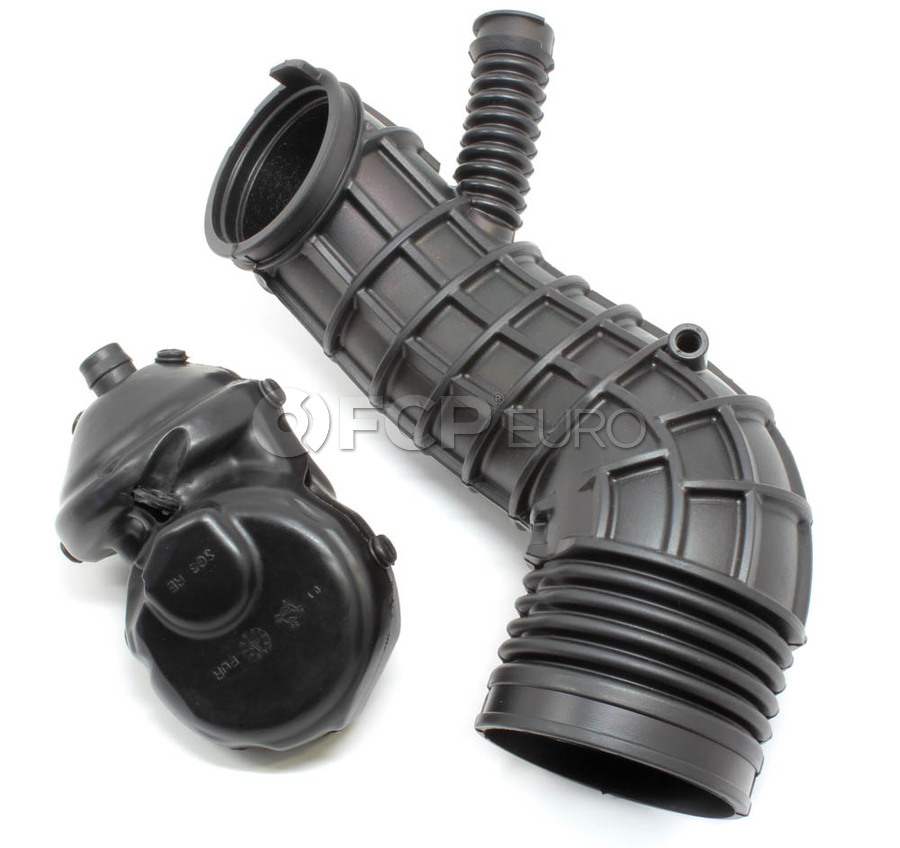

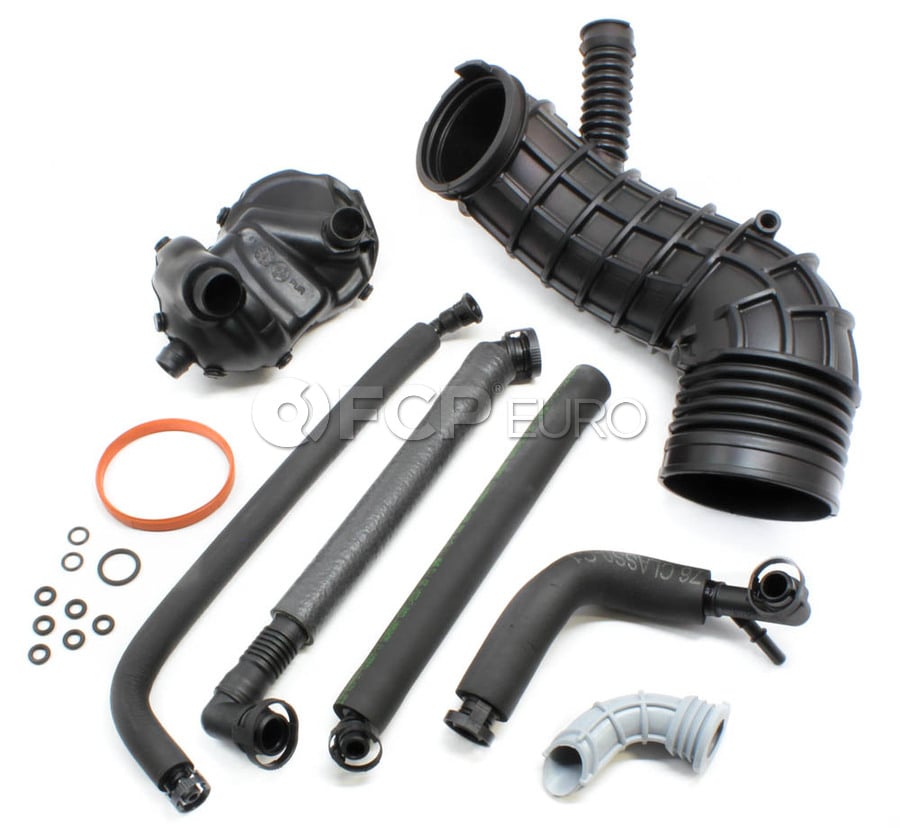

This Kit Includes

Qty Part SKU Brand Price
1 Engine Crankcase Breather Hose CRP-ABV0131 $12.59
1 Engine Crankcase Breather Hose BMW-11617504536 $43.90
1 Engine Oil Dipstick O-Ring OES-11431740045 $1.19
6 Engine Air Distribution Hose ELR-780154 $2.64
1 Engine Air Intake Hose BMW-13543412292 $72.58
1 Fuel Injection Throttle Body Mounting Gasket ELR-359390 $7.62
2 Engine Oil Dipstick O-Ring OES-11431717666 $1.18
1 Fuel Injection Idle Air Control Valve Gasket BMW-11611437453 $19.18
1 Engine Oil Separator Hose CRP-ABV0124 $28.86
1 Engine Crankcase Vent Valve HEN-AS821M $43.75
1 Engine Crankcase Breather Hose BMW-11617533398 $48.84

Product Information

A comprehensive cold climate PCV kit for your M54B30 powered X3

This PCV kit features all of the cold climate version insulated hoses and valve. This system is standard on most vehicles sold in regions where it is significantly colder than normal. The idea of the insulation is to help prevent condensation inside the hoses from freezing and destroying the system inside out. BMW's breather systems have had this problem especially when the car is driven short distances in cold weather and is never allowed to reach operating temperature.

The plastic in these components deteriorates over time and eventually will crack or break. This will cause vacuum leaks and other detrimental issues which can cause engine damage and poor performance.

Note: This is approved for vehicles with Cold Climate Package. It can be installed on BMW's that don't have the cold climate package and this is often an upgrade over the standard system.

Engine Crankcase Breather Hose Kit

An engine crankcase breather hose is a primary component of an engine’s positive crankcase ventilation system, funneling pressurized air from the engine crankcase to the air/oil separator, also known as the PCV valve. The PCV valve, or air/oil separator, is designed to capture and remove oil vapors from the pressurized crankcase air, allowing them to drain back to the engine, while the pressurized air is fed to the intake side of the engine and utilized as part of normal combustion.

An engine develops positive crankcase pressure as a byproduct of the overall combustion process. Because of the combination of pressure, heat, and the air/oil-vapor mixture traveling to the PCV valve, the engine crankcase breather hose is a common failure item within the PCV system and is crucial to your car’s engine’s performance and emissions compliance.

Engine Crankcase Breather Hose Kit Failure Symptoms
  • Cracks breaks, leaks: Over time, your engine crankcase breather hose can be easily damaged because of constant exposure to oil vapors, heat, and pressure from the engine. The engine oil can slowly break down the plastic or rubber materials, eventually causing an air leak. This can happen naturally, or because it is damaged from external contact.
  • Broken connectors: Plastic can become brittle over time, especially when exposed to heat and oil, and it’s easy to break one of the securing clips or connectors for a PCV hose, either during removal or during other services.
  • Broken or damaged hose: Soft rubber or brittle plastic, depending on the material of the hose, can result in an obvious hole or split in an engine crankcase breather hose, usually accompanied by one of the other faults listed below.
  • Check Engine Light: Excessive unmetered air from a failed engine crankcase breather hose can result in a CEL for an air intake leak fault or other airflow-related diagnostic trouble codes.
  • Misfire: A severe air intake leak can cause rough running and an engine misfire, a common side effect of a bad engine crankcase breather hose or PCV Valve
  • Oil residue on or around the hose or adjacent components: As engine crankcase vapors escape from a faulty engine crankcase breather hose, the hose, engine block, and adjacent components are likely to become visibly soiled with oil residue and moisture. In the most severe cases, you will smell burning or burnt oil, and you may need to degrease the area to determine the exact cause of the oil residue.

Additional Information

How To Replace a BMW 330xi PCV System, M52TU and M54

About OE Supplier

OE Supplier parts are produced by a manufacturer that meets high quality standards and produces at least one part for a vehicle manufacturer. FCP recommends OE & OEM replacement parts as one of the best options in terms of quality and price. Typically all OE manufacturers adhere to stringent quality control and are known to be exceptional quality. OE Supplier parts will often be packaged in a white box with familiar name brand markings and logos on the part itself.

Fits These Cars

BMW X3

  • 2004 BMW X3 3.0i Engine Crankcase Breather Hose Kit
    Automatic AWD Sport Utility 3.0L L6 M54 Gas
  • 2004 BMW X3 3.0i Engine Crankcase Breather Hose Kit
    Manual AWD Sport Utility 3.0L L6 M54 Gas
  • 2005 BMW X3 3.0i Engine Crankcase Breather Hose Kit
    Automatic AWD Sport Utility 3.0L L6 M54 Gas
  • 2005 BMW X3 3.0i Engine Crankcase Breather Hose Kit
    Manual AWD Sport Utility 3.0L L6 M54 Gas
  • 2006 BMW X3 3.0i Engine Crankcase Breather Hose Kit
    Automatic AWD Sport Utility 3.0L L6 M54 Gas
  • 2006 BMW X3 3.0i Engine Crankcase Breather Hose Kit
    Manual AWD Sport Utility 3.0L L6 M54 Gas
