More BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899
BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899 BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899 BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899 BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899 BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899 BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899 BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899
Rogue Engineering
SKU: ROG-RE899

BMW Billet Aluminum Subframe Reinforcement Brace - Rogue Engineering RE.899

M3

Made from 6061 billet aluminum and grey aluminum anodized for corrosion resistance, the modular design allows for easier installation and servicing of rear-end components in the future

Save for later
Available
Ships in 4 business days
MAP
Price each: $595.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
ROG-RE899
FCP Euro ID:
888336
Made in:
United States
Quality:
Performance

OE Numbers

33312229899

MFG Numbers

RE.899

Product Information

An integral part of the E46 M3 is the rear chassis "V-Brace" (BMW # 33-31-2-229-899) found on all 2001-06 Convertibles and Coupe (including the CSL). This brace attaches to the outward points of the rear chassis and the area near the rear subframe carrier. Since some of these vehicles are now over 20 years old, we have been seeing more and more of them start to rust away.

The OE V-brace is made from 38mm x 12mm (1.5" x 0.5") hollow square steel tubing with pressed ends and is welded to a junction plate; joining them with welds holding the arms at a specific angle. Since the arms are hollow, it helps keep the overall weight down, but does little to prevent corrosion since it is difficult to paint/coat a hollow tube.

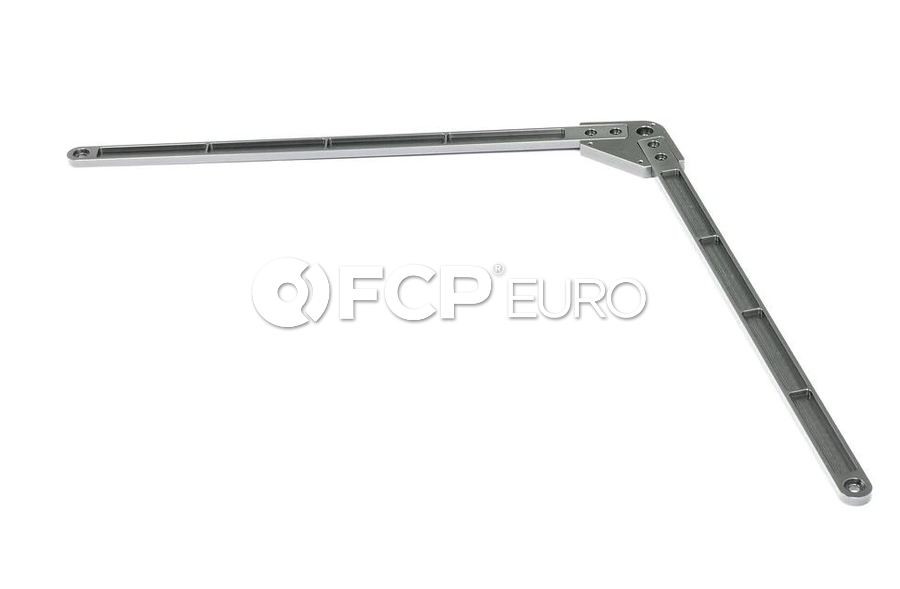

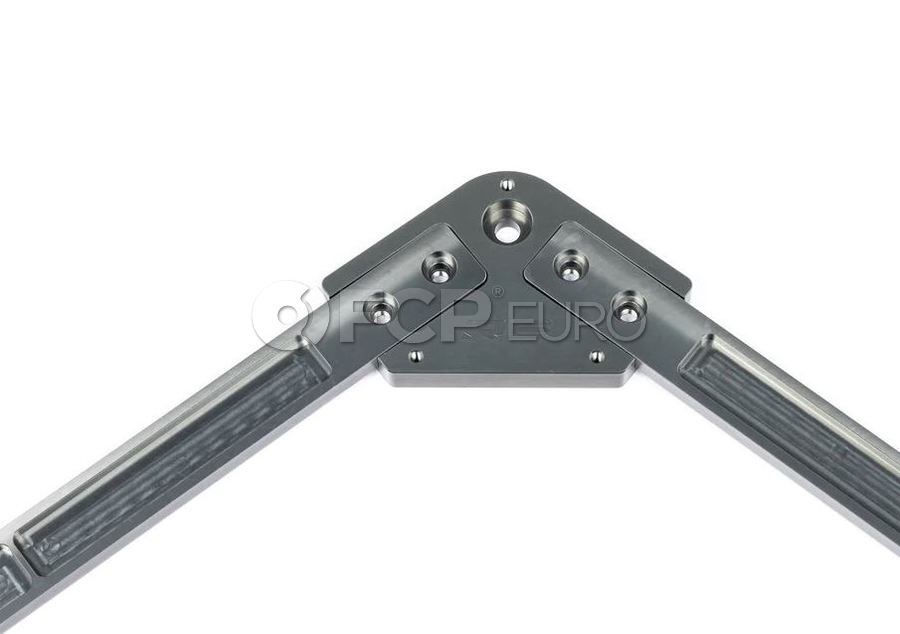

After Rogue Engineering weighed the material, manufacturing, and cost options, they made a fully CNC ACQ 6061-T6 aluminum replacement. The concept is to machine two identical arms (one part number) and have them joined with a "junction plate". The arms would be secured to the plate with Grade 8.8 grade hardware and the entire assembly would include replacement Grade 10.9 hardware to replace the original OEM hardware.

Features:

  • CNC'd 6061-T6 construction, secured with Grade 8.8 socket head cap screws. Included are replacement Grade 10.9 hardware to fit in the factory locations.
  • At about 4 lbs fully assembled weight compared to 6.25 lbs for the OEM brace; about a 35% weight savings.
  • Anodized gray finish
  • Modular design allows for one arm to be removed in case of exhaust removal requirement.

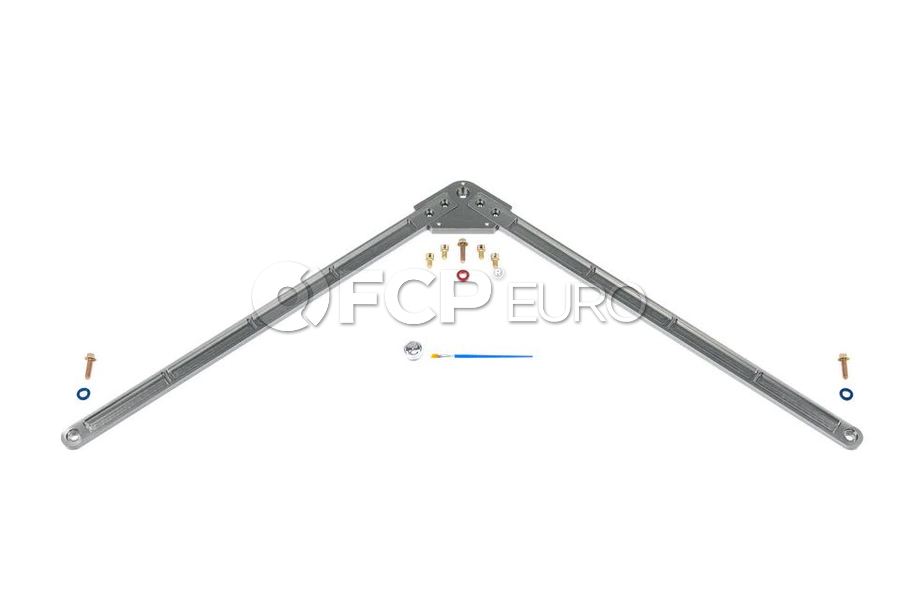

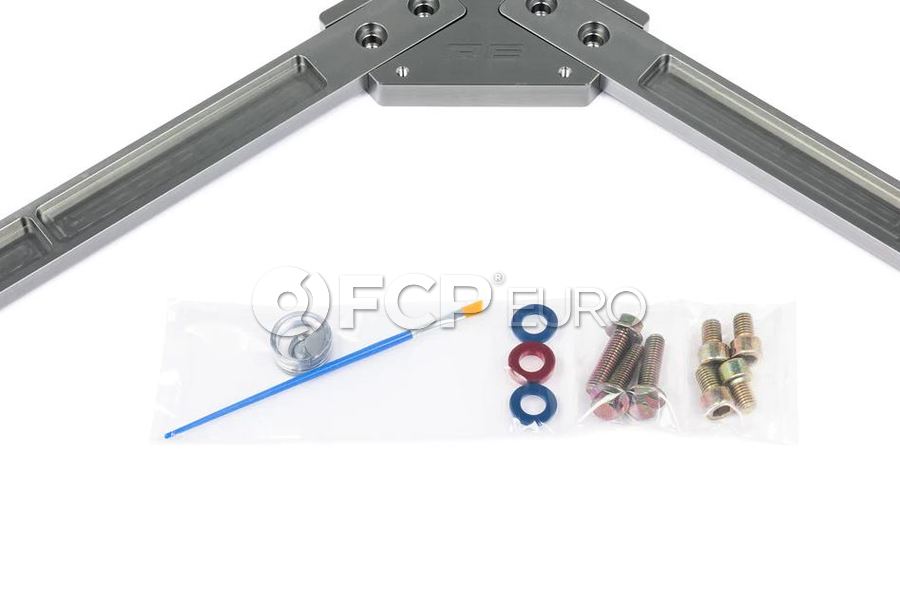

Included in the kit:

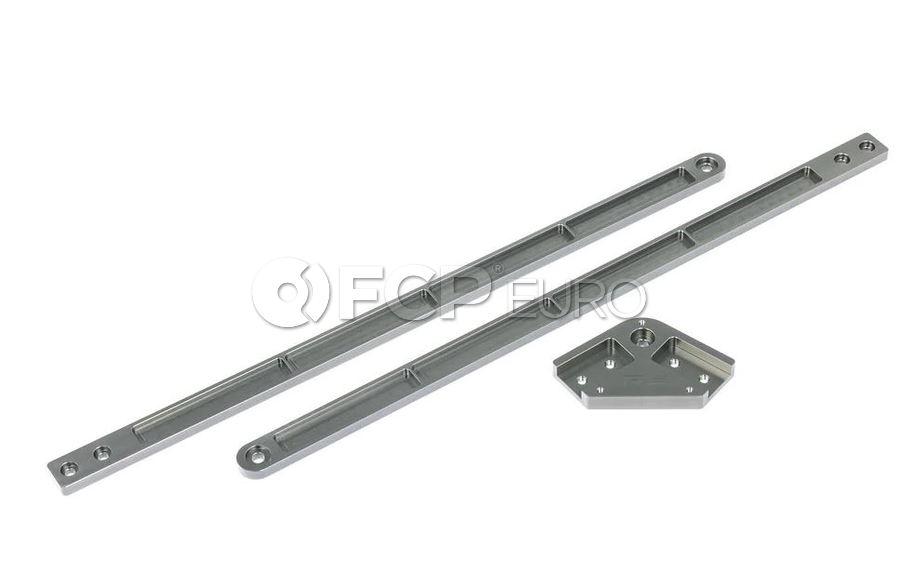

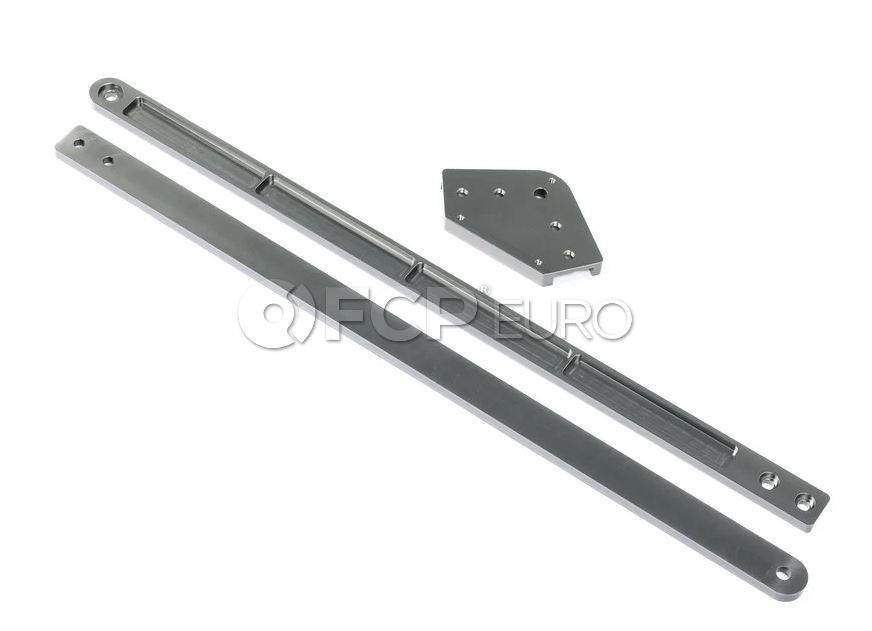

  • x2 arms of the brace assembly (they are identical)

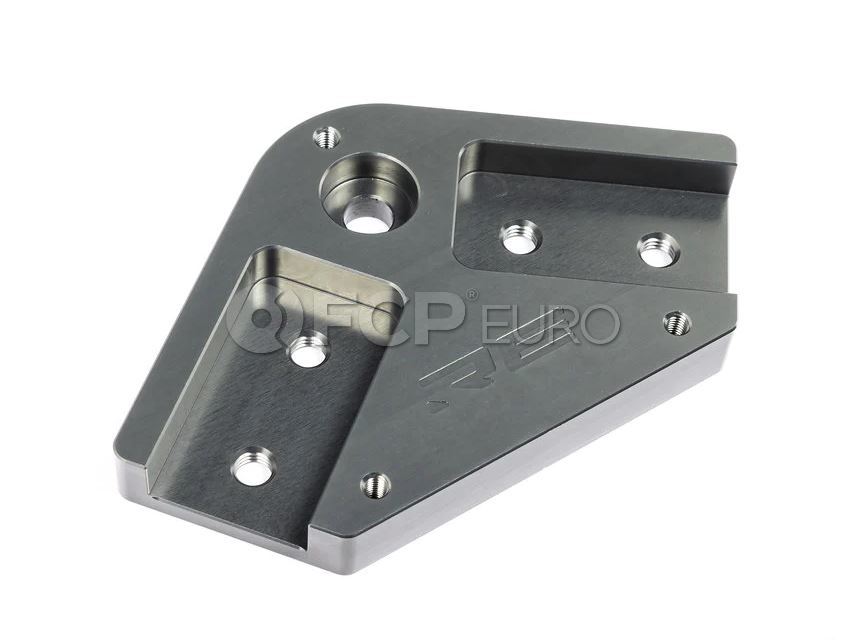

  • x1 junction plate
  • x1 red spacer (this goes BETWEEN the brace and the chassis!)
  • x2 blue spacers (these go BETWEEN the brace and the chassis!)
  • x4 M10 socket head cap screws
  • x3 M10 flanged hex head bolts

Fits These Cars

BMW M3

  • 2001 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2001 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2002 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2002 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2003 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2003 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2004 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2004 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2005 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2005 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Coupe 3.2L L6 S54 Gas
  • 2006 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Convertible 3.2L L6 S54 Gas
  • 2006 BMW M3 Suspension Subframe Reinforcement Bracket (Rear)
    Manual RWD Coupe 3.2L L6 S54 Gas
