Genuine BMW
BMW Belt Tensioner Assembly - Genuine BMW 11287571852
Z4
Description
Details
- SKU:
- BMW-11287571852
- FCP Euro ID:
- 222980
- Made in:
- Slovakia
- Quality:
- Genuine
OE Numbers
- 11287571852
MFG Numbers
- N/A
Product Information

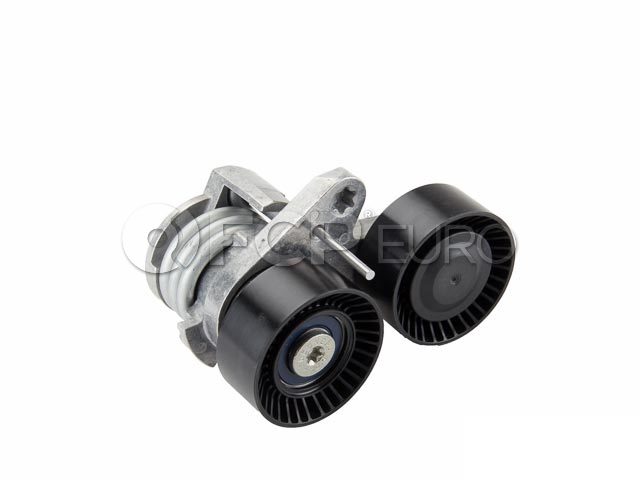

Tensioner for A/C, power steering, and alternator
If your BMW's belt is squeaking it could be due to a worn-out belt. However, under other circumstances, it could be the belt tensioner that has begun to fail. If the belt tensioner is not properly holding tension then the belt will not be secured properly over the other pulley. Replacing your BMW's tensioner can usually fix the problem.
Torque spec for the included bolt is 40 Nm (30 ft-lbs).
Please note: The cap for the pulley where the mounting bolt goes through is not included. Generally, it is reused from the existing tensioner. If you would like to order a new one please see p/n 11281435114.
Accessories such as alternators, power steering pumps, water pumps, and A/C compressors are commonly powered by an accessory drive belt, also sometimes called a serpentine belt. For these to all function correctly, an accessory drive belt tensioner applies the proper amount of tension on the belt to keep it from slipping and ensure the entire system is running smoothly.
There are three main styles of accessory belt tensioners, the most popular being the “Automatic” tensioner. An automatic accessory drive belt tensioner is spring-loaded to maintain constant tension on the belt. Some European cars use a hydraulic-style tensioner, which is slightly more complicated but less prone to bouncing or vibrations if one of the accessories is not in top shape. Finally, a manual accessory drive belt tensioner uses a screw and an arm that needs to be manually adjusted. These are usually found on classic cars and need to be checked as part of regular maintenance.
When an automatic tensioner is failing, you will notice an abnormal amount of bouncing or vibration, usually in conjunction with a bad pulley bearing. Hydraulic tensioners will fail similarly, by losing their ability to damp the vibrations in the system and begin to bounce. Sometimes they can also leak, although the amount of fluid in a hydraulic tensioner is small, so it would be hard to detect. If your belt system is bouncing or wobbling due to slack in the tensioner, replace the tensioner and associated components to do a full belt service.
Accessory Drive Belt Tensioner Assembly Failure Symptoms- Slack in the belt: If the accessory drive belt tensioner is going bad, you will notice the belt bounce and hop due to the inability of the tensioner to apply even constant pressure.
- Pulley Bearing Failure: Many accessory drive belt tensioners have a pulley integrated into the assembly. If the pulley bearing goes bad, it will cause inconsistent or excess resistance on the belt which will inhibit the ability of the tensioner to apply constant tension on the accessory drive belt
- False positives: Occasionally if another component is going bad within the accessory drive belt system, such as a power steering pump or A/C compressor, it can cause intermittent drag on the system that will appear as a faulty belt tensioner. If your belt is not running smoothly, check all the other accessories and idler pulleys to make sure they are smooth.
About Genuine BMW
The original parts used by BMW to build your car are available as replacement parts under the “Genuine BMW” brand. When ordering a Genuine BMW part you are guaranteed to get the same part that you would pick up from your local dealerships part department. Genuine BMW parts have been built to BMW’s stringent standards and are the same quality of the original parts used to build your Ultimate Driving Machine.
You may not realize this, but the parts that make up your BMW are not necessarily manufactured by BMW. No cause for concern, as BMW designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for BMW for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine BMW parts box and find an OEM branded part inside, simply with the addition of a BMW logo.
Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.
Fits These Cars
BMW Z4
-
2009 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2009 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2010 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2010 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2011 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2011 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2011 BMW Z4 sDrive35is Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2012 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2012 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2012 BMW Z4 sDrive35is Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2013 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2013 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2013 BMW Z4 sDrive35is Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2014 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2014 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2014 BMW Z4 sDrive35is Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2015 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2015 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2015 BMW Z4 sDrive35is Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2016 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
-
2016 BMW Z4 sDrive35i Accessory Drive Belt Tensioner AssemblyManual RWD Convertible 3.0L L6 N54B30A Gas
-
2016 BMW Z4 sDrive35is Accessory Drive Belt Tensioner AssemblyAutomatic Dual Clutch RWD Convertible 3.0L L6 N54B30A Gas
