Auto Trans Solenoid Kit (6HP19 6HP26) - ZF 1068298044
  • 1068 298 044 1

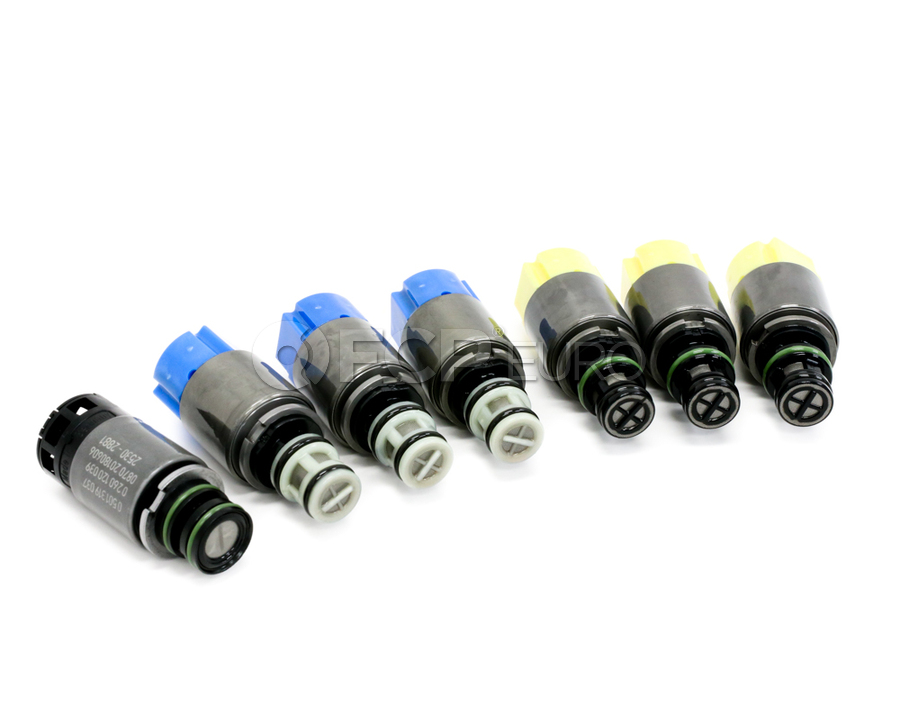

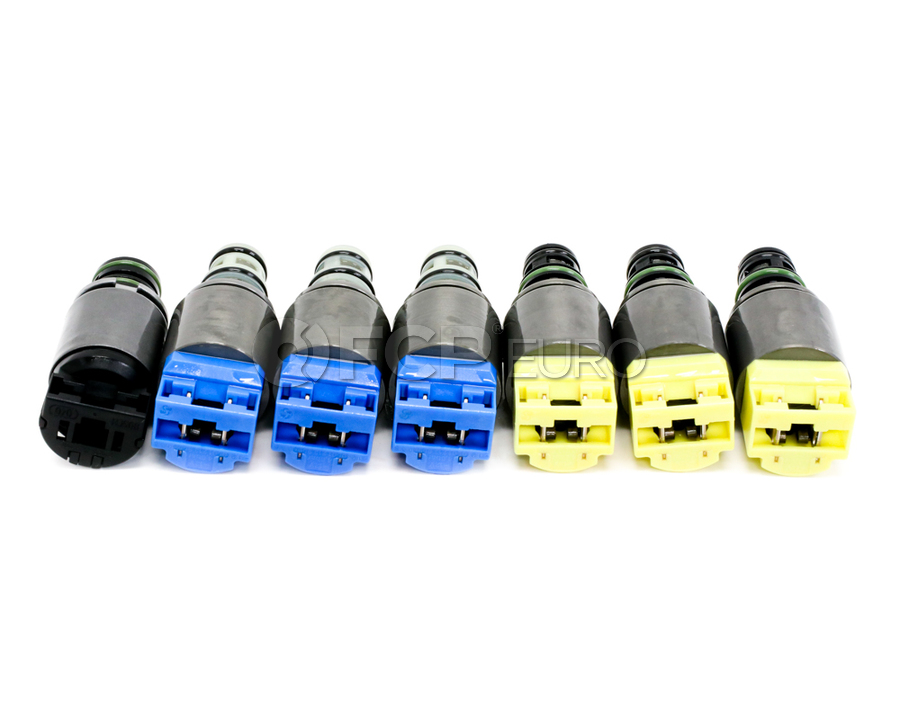

Complete shift solenoid kit for 6HP19, 6HP26, and 6HP32 transmissions, featuring three yellow solenoids, three blue solenoids, and one black solenoid

If your ZF automatic is having solenoid control problems you can replace the troubled solenoids individually and save the expense of replacing an entire valve body.

Please note: Internal parts of transmissions vary even though the transmission might appear to be the same on the outside. For the correct kit you will need to match your transmission main parts list with a main parts list in the tables below:

This solenoid kit will fit 6HP19 transmissions of the following main part lists:
1071 010 005 - 1071 010 006 - 1071 010 007 - 1071 010 020 - 1071 010 021 - 1071 010 022 - 1071 010 023 - 1071 010 024 - 1071 010 025 - 1071 010 027 - 1071 010 029 - 1071 010 033 - 1071 010 048 - 1071 010 049

This solenoid kit will fit 6HP19x transmissions of the following main part lists:
1071 020 006 - 1071 020 007

This solenoid kit will fit 6HP19A transmissions of the following main part lists:
1071 040 009 - 1071 040 010 - 1071 040 013 - 1071 040 014 - 1071 040 015 - 1071 040 016 - 1071 040 019 - 1071 040 020 - 1071 040 021 - 1071 040 022 - 1071 040 023 - 1071 040 024 - 1071 040 026 - 1071 040 027 - 1071 040 028 - 1071 040 033 - 1071 040 034 - 1071 040 035 - 1071 040 037 - 1071 040 038 - 1071 040 039 - 1071 040 040 - 1071 040 043 - 1071 040 044 1071 040 052 - 1071 040 059 - 1071 040 063 - 1071 040 064 - 1071 040 065 - 1071 040 066 - 1071 040 067 - 1071 040 077 - 1071 040 078 - 1071 040 079 - 1071 040 107 - 1071 040 112 - 1071 040 113 - 1071 040 114

This solenoid kit will fit 6HP26 transmissions of the following main part lists:
1068 010 030 - 1068 010 031 - 1068 010 032 - 1068 010 033 - 1068 010 036 - 1068 010 037 - 1068 010 038 - 1068 010 039 - 1068 010 043 - 1068 010 044 - 1068 010 045 - 1068 010 046 - 1068 010 050 - 1068 010 063 - 1068 010 064 - 1068 010 065 - 1068 010 066 - 1068 010 067 - 1068 010 069 - 1068 010 070 - 1068 010 071 - 1068 010 073 - 1068 010 075 - 1068 010 076 - 1068 010 077 - 1068 010 078 - 1068 010 079 - 1068 010 085 - 1068 010 086 - 1068 010 091 - 1068 010 093 - 1068 010 094 - 1068 010 095 - 1068 010 100 - 1068 010 101 - 1068 010 102 - 1068 010 103 - 1068 010 104 - 1068 010 105 - 1068 010 107 - 1068 010 111 - 1068 010 110 - 1068 010 112 - 1068 010 113 - 1068 010 114 - 1068 010 115 - 1068 010 116 - 1068 010 117 - 1068 010 118 - 1068 010 119 - 1068 010 120 - 1068 010 121 - 1068 010 122 - 1068 010 128 - 1068 010 129 - 1068 010 130 - 1068 010 131 - 1068 010 135 - 1068 010 136 - 1068 010 137 - 1068 010 138 - 1068 010 148 - 1068 010 150 - 1068 010 151 - 1068 010 153 - 1068 010 154 - 1068 010 155 - 1068 010 160 - 1068 010 161 - 1068 010 162 - 1068 010 163 - 1068 010 164 - 1068 010 165 - 1068 010 170 - 1068 010 174 - 1068 010 175 - 1068 010 176 - 1068 010 177 - 1068 010 178 - 1068 010 181 - 1068 010 182 - 1068 010 185 - 1068 010 189 - 1068 010 190 - 1068 010 196 - 1068 010 197 - 1068 010 198 - 1068 010 201 - 1068 010 202 - 1068 010 203 - 1068 010 204 - 1068 010 205 - 1068 010 206 - 1068 010 207 - 1068 010 208 - 1068 010 210 - 1068 010 211 - 1068 010 214 - 1068 010 215 - 0168 010 216 - 1068 010 217 - 1068 010 219

This solenoid kit will fit 6HP26x transmissions of the following main part lists:
1068 020 002 - 1068 020 003 - 1068 020 004 - 1068 020 011 - 1068 020 014 - 1068 020 018 - 1068 020 020 - 1068 020 027 - 1068 020 029 - 1068 020 030 - 1068 020 034 - 1068 020 035 - 1068 020 036 - 1068 020 038 - 1068 020 039 - 1068 020 043 - 1068 020 044 - 1068 020 045 - 1068 020 046 - 1068 020 047 - 1068 020 051 - 1068 020 052 - 1068 020 053 - 1068 020 054 - 1068 020 055 - 1068 020 057 - 1068 020 058 - 1068 020 059 - 1068 020 060 - 1068 020 061 - 1068 020 064 - 1068 020 065 - 1068 020 066 - 1068 020 068 - 1068 020 069 - 1068 020 070 - 1068 020 071 - 1068 020 072 - 1068 020 074 - 1068 020 075 - 1068 020 080 - 1068 020 086 - 1068 020 087 - 1068 020 089 - 1068 020 090 - 1068 020 091 - 1068 020 092

This solenoid kit will fit 6HP26A61 transmissions of the following main part lists:
1068 030 014 - 1068 030 015 - 1068 030 017 - 1068 030 018 - 1068 030 024 - 1068 030 027 - 1068 030 029 - 1068 030 030 - 1068 030 031 - 1068 030 032 - 1068 030 033 - 1068 030 035 - 1068 030 036 - 1068 030 037 - 1068 030 038 - 1068 030 048 - 1068 030 049 - 1068 030 056 -1068 030 072 - 1068 030 073 - 1068 030 078

This solenoid kit will fit 6HP32 transmissions of the following main part lists:
1070 010 019 - 1070 010 020

This solenoid kit will fit 6HP32A transmissions of the following main part lists:
1070 020 007 - 1070 020 008

Fits These Cars:

Product match fitment

Auto Trans Solenoid Kit (6HP19 6HP26) - ZF 1068298044

Brand:
Zf logoZF
SKU #:
ZFS-106829804401
Part:
Auto Trans Valve Body Solenoid
FCP ID:
397171
$539.99 MSRP: $648.99
Please make sure this is an exact part number match.
Qty:
Available
Ships within 1 business day
  • Guaranteed to Fit, Guaranteed for Life We guarantee the fit and quality of our parts for life. If it doesn’t meet your expectations send it back for a replacement or refund. Learn more
  • Fitment Verified This product application guide has been tested to ensure it will accurately fit the cars outlined in our fitment guide.
  • Shop With Confidence We respect your privacy; we always keep your information confidential.
  • What If I Need to Return This Item? Not a problem! If you are not happy with your purchase, we will gladly help you exchange or return your items, provided you follow the guidelines outlined in our Returns Policy.
Give Us a Call
(877) 634-0063
Whether you have technical questions for our ASE certified staff or you need help fulfilling an order, we're here to help you.
Email Us Live Chat

Customer Reviews

Write a Review Average rating:
5.0 based on 1 review(s)
By: Ismail
Fri, Mar 13 at 6:32AM
E60 523i Shifting Gear Problem

I bought it for my customer and he was overwhelm that this part only need replacing as he thought, he need to replace the whole transmission gearbox which is too expensive. Now his car run awesomely without any problem. Thank you FCP
