Nissens
SKU: NSN-940058

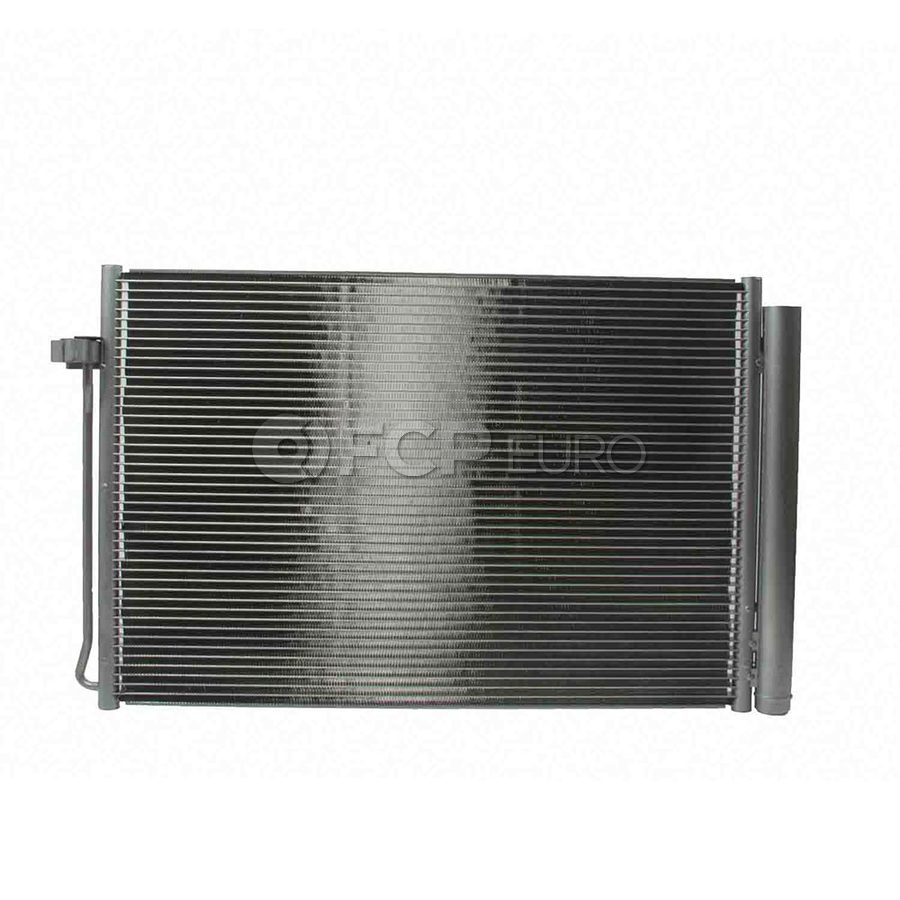

BMW A/C Condenser - Nissens 64509239992

X5, X6

Ensure your vehicle's A/C system is blowing cool



Available
In Stock
Price each: $215.99
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
To ensure fitment and browse only products that fit, please select a vehicle first.

Description

Details

SKU:
NSN-940058
FCP Euro ID:
418398
GTIN / UPC:
05707286252073
Made in:
China
Quality:
Aftermarket

OE Numbers

64509239992, 64536972553

MFG Numbers

940058

Product Information

Over time your vehicle's A/C system will lack in performance and will require some level of maintenance. The A/C Condenser is in charge of turning refrigerant gas into liquid to ensure your system stays cool. When this unit fails, it can cause your A/C system to feel warm, cause refrigerant leaks, and render your A/C system inoperative. A common failure point on the A/C condenser is physical damage like cracks and leaks, caused by road-borne debris.

A/C Condenser

The A/C condenser is effectively a radiator for your vehicle's A/C system, designed to vent heat from the air conditioner's refrigerant. The A/C condenser is usually mounted to or near the main radiator in the front of the vehicle. Its function is to cool the high-pressure hot gas refrigerant coming from the compressor, condensing it back into a liquid. The cooled liquid leaves the condenser and flows through the A/C receiver drier on its way to the evaporator, where the evaporation process provides cool air to the cabin. A/C condensers are typically made completely out of aluminum and are fairly lightweight and delicate. Both sides of the A/C condenser are connected to the high and low-pressure pipes using bolted fittings and O-rings. Due to the high-pressure nature of the A/C system, even the most minor leak can cause complete A/C failure.

The most common reason for failure in A/C Condensers is from road debris, such as rocks or dirt, which causes punctures or bent fins. A punctured condenser will vent the refrigerant in the system, usually 134a, fairly quickly leading to immediate failure. Bent fins will not typically lead to condenser failure, but will reduce the effective cooling capacity due to reduced airflow.

Internal blockage is another common failure mode, mostly in older or higher-mileage vehicles that have not had regular A/C services. A blockage is usually caused by internal corrosion as a result of water accumulation in the system. The corrosion grows and clogs the narrow passages, leading to reduced efficiency and sometimes even cracks and leaks. Leaks can be hard to find, especially when the A/C condenser is peppered from thousands of miles of highway exposure. The best way to find a leak in your A/C system is to charge it with an oil containing reactive UV dye after a thorough engine bay cleaning, and running the air conditioning. If there is a leak, it will be easily viewed using a UV (black light) flashlight as a bright neon reflection.

A/C Condenser Failure Symptoms
  • Internal blockage: If the A/C system is rarely or never serviced, the A/C receiver drier will become saturated and allow water that has made it into the system to circulate along with the refrigerant. Water and R134a combine to create a corrosive acid, which causes corrosion buildup in the narrow passageways of the A/C condenser and evaporator, reducing efficiency and sometimes causing the A/C to stop working altogether.
  • External impact damage: The A/C Condenser is a lightweight aluminum assembly positioned right in the front of the car. It’s common to take a beating with prolonged high-speed miles, especially in the winter when the area uses rock salt on the roads. Even a pinhole leak is enough to eventually empty the A/C system, and leaks will not be readily identifiable without A/C dye.

About Nissens

Over the years, Nissens has invested significant resources in research on and development of engine cooling and climate system components for the automotive segment. More than 95 years of thermal know-how and manufacturing experience mean that we are able to meet the needs for a comprehensive range of high-quality spare parts, while at the same time, being a market educator for technical insight into the systems field.

As a market-leading manufacturer of most essential thermal system components, Nissens offers a comprehensive product portfolio with up to 97% car park coverage. Covering everything from the fast-moving to the more exotic parts of the European, Asian, and American vehicle brands, Nissens is the ideal choice for quality, range, and expertise.

Every time it involves your thermal systems, Nissens is right there with you - contributing to the comfort and safety of your journey.

Fits These Cars

BMW X5

  • 2007 BMW X5 3.0si A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N52B30A Gas
  • 2007 BMW X5 4.8i A/C Condenser
    Automatic AWD Sport Utility 4.8L V8 N62B48B Gas
  • 2008 BMW X5 3.0si A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N52B30A Gas
  • 2008 BMW X5 4.8i A/C Condenser
    Automatic AWD Sport Utility 4.8L V8 N62B48B Gas
  • 2009 BMW X5 xDrive30i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N52B30A Gas
  • 2009 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 M57T2D30 Diesel
  • 2009 BMW X5 xDrive48i A/C Condenser
    Automatic AWD Sport Utility 4.8L V8 N62B48B Gas
  • 2010 BMW X5 xDrive30i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N52B30A Gas
  • 2010 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 M57T2D30 Diesel
  • 2010 BMW X5 xDrive48i A/C Condenser
    Automatic AWD Sport Utility 4.8L V8 N62B48B Gas
  • 2011 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 M57T2D30 Diesel
  • 2011 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2012 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 M57T2D30 Diesel
  • 2012 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2013 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 M57T2D30 Diesel
  • 2013 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2014 BMW X5 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2014 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N57D30T Diesel
  • 2014 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2015 BMW X5 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2015 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N57D30T Diesel
  • 2015 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2016 BMW X5 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2016 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N57D30T Diesel
  • 2016 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2016 BMW X5 xDrive40e A/C Condenser
    Automatic AWD Sport Utility 2.0L L4 N20B20A Plug-in hybrid ev-gas (phev)
  • 2017 BMW X5 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2017 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N57D30T Diesel
  • 2017 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2017 BMW X5 xDrive40e A/C Condenser
    Automatic AWD Sport Utility 2.0L L4 N20B20A Plug-in hybrid ev-gas (phev)
  • 2018 BMW X5 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2018 BMW X5 xDrive35d A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N57D30T Diesel
  • 2018 BMW X5 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2018 BMW X5 xDrive40e A/C Condenser
    Automatic AWD Sport Utility 2.0L L4 N20B20A Plug-in hybrid ev-gas (phev)

BMW X6

  • 2008 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N54B30A Gas
  • 2009 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N54B30A Gas
  • 2010 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N54B30A Gas
  • 2011 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2012 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2013 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2014 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2015 BMW X6 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2015 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2016 BMW X6 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2016 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2017 BMW X6 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2017 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2018 BMW X6 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2018 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas
  • 2019 BMW X6 sDrive35i A/C Condenser
    Automatic RWD Sport Utility 3.0L L6 N55B30A Gas
  • 2019 BMW X6 xDrive35i A/C Condenser
    Automatic AWD Sport Utility 3.0L L6 N55B30A Gas

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by Josh
Do you need to pre-fill this condenser with refrigerant oil? If so, what is the exact amount required per spec? I couldn’t find anything in the part description.
Answer (Posted by FCP Euro Products Team)
The condenser does not need to be filled completely before installation, but BMW specifies adding 30 mL (approximately 1.0 fl oz) of the vehicle-specified refrigerant oil when replacing this condenser because it includes the receiver-drier. The oil is normally added during professional evacuation and recharge; the exact oil type must be confirmed from the vehicle’s A/C label or by VIN, since applications may use different refrigerants and compressor oils.
