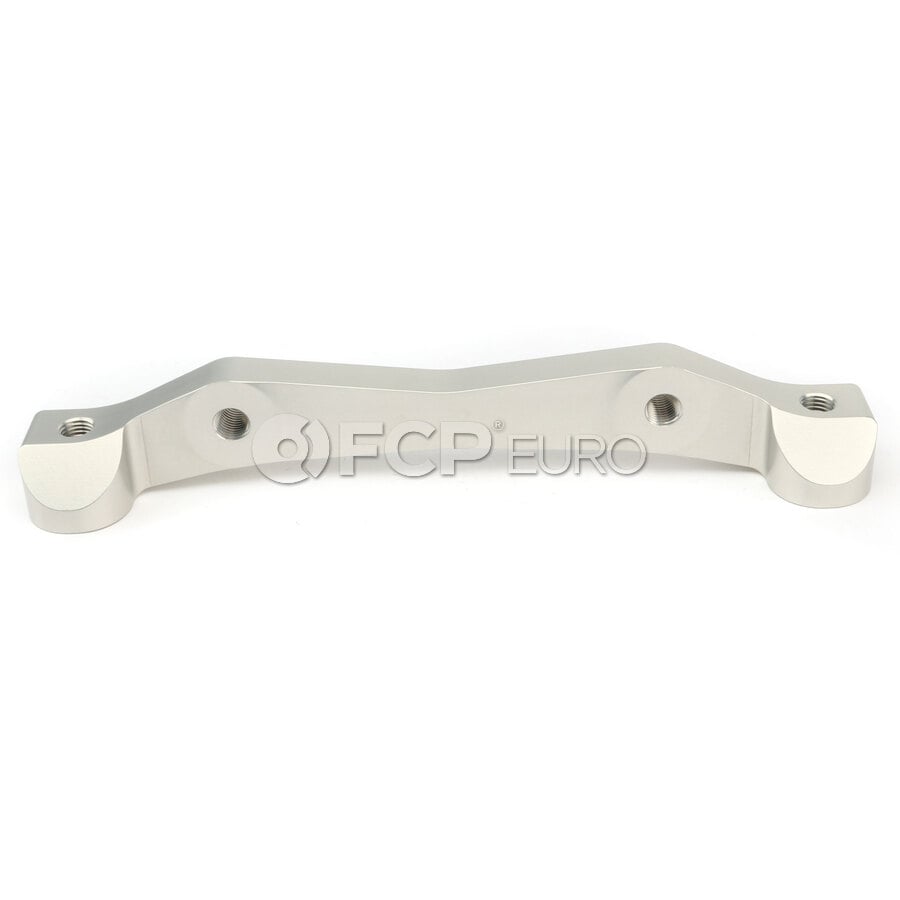

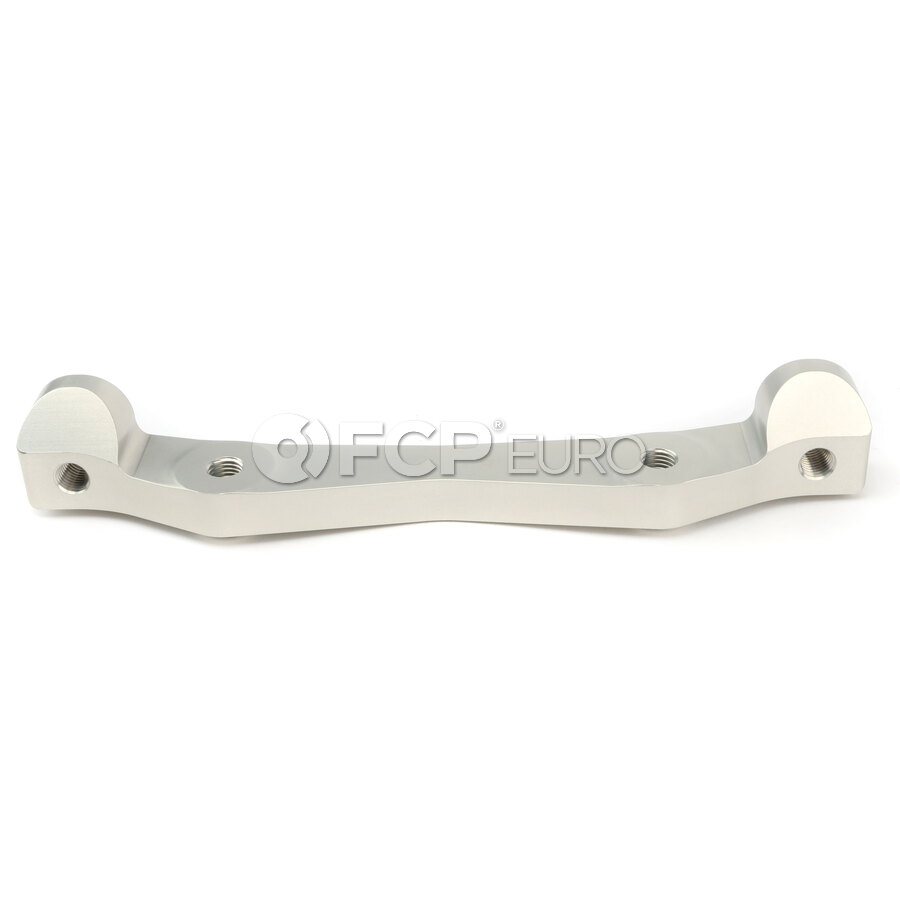

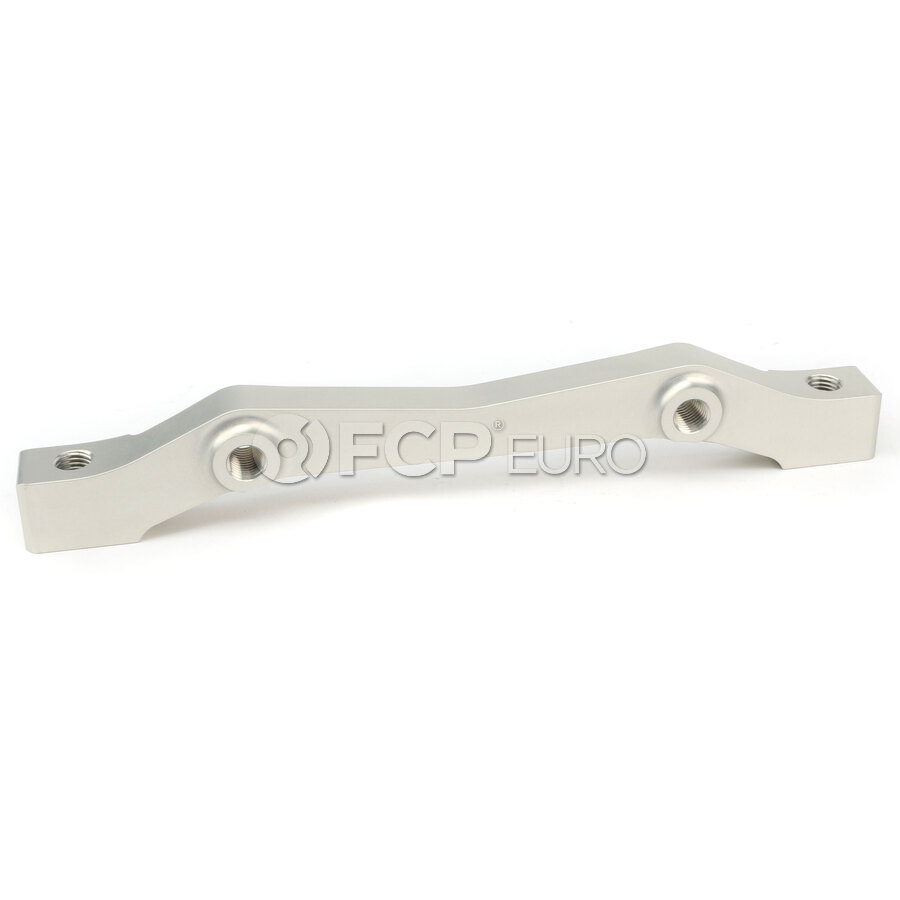

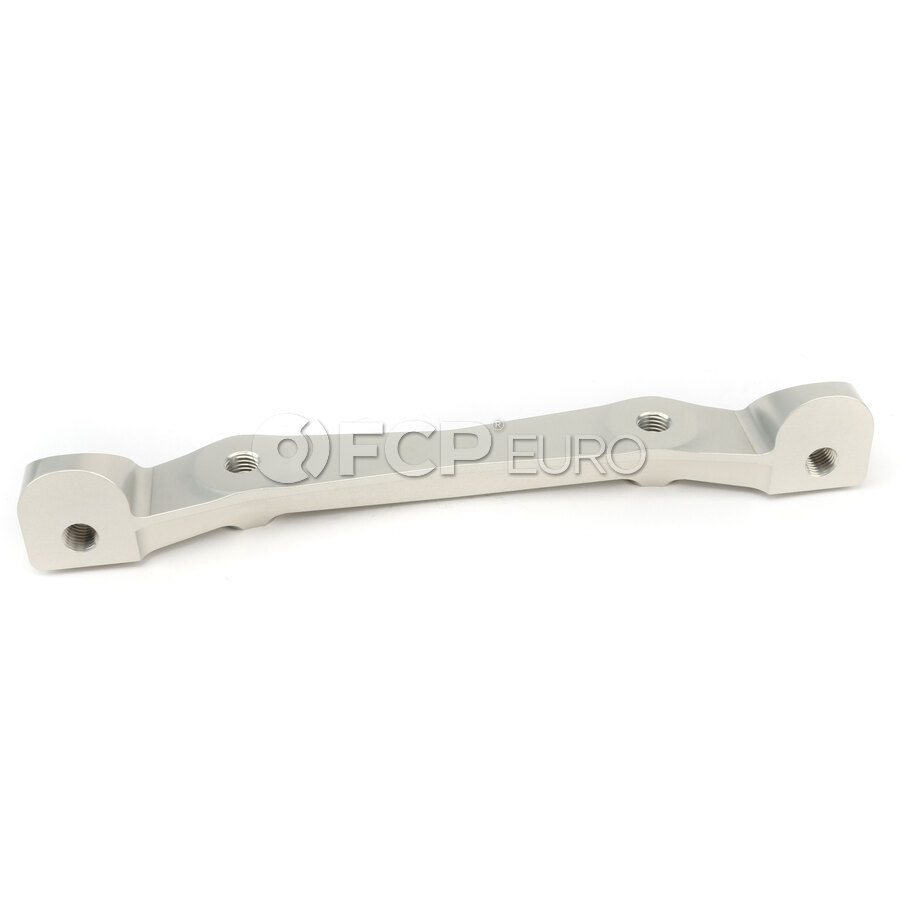

BMW 6-Piston Caliper Adapter - FCP Euro 34118089937ADPT

Sold individually, 2 of these brackets are required per car

Featured in the upgrade kit on our G01 X3 project car, as well as our G2X big brake kit This caliper bracket allows for the retrofitting of G8X M2/M3/M4 or F90 M5 front brake calipers onto other G-chassis BMWs.

📘 PLEASE READ: CALIPER INFO

🧩 Calipers Required (choose your color):

When searching for used calipers, it can be helpful to search by “F90 M5 brake calipers” or similar, instead of direct OE numbers.

These caliper brackets are the same dimensions as the brackets on an F95 X5M, which are not available to purchase on their own from Brembo.

🔩 Torque Specifications

Please use the included blue thread locker on the E-torx mounting bolts that attach the caliper to the adapter bracket.

• Caliper bracket to suspension knuckle: 120 Nm
• Caliper to caliper bracket (E14 head): 120 Nm

INSTALLATION NOTE: You will likely need to modify/ upgrade your front dust shields in order to fit these rotors and calipers. For example, on our G01 X3 M40i project car, we utilized enlarged front brake dust shields found on the X3M. For example, a 5 series will likely require M5 dust shields, etc.

NOTE: Does not fit all G-chassis BMWs. As this is a part which includes custom applications of OEM parts, we do not guarantee fitments on all platforms.
