More Audi VW Subframe Mount Insert Kit - 034Motorsport 0346010039
034Motorsport
SKU: MTO-0346010039

Audi VW Subframe Mount Insert Kit - 034Motorsport 0346010039

A3 Quattro, Golf, R32, TT Quattro

Save for later
Available
Ships in 5 business days
MAP
Price each: $157.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
MTO-0346010039
FCP Euro ID:
522341
Made in:
United States
Quality:
Performance

OE Numbers

N/A

MFG Numbers

034-601-0039, 0346010039

Product Information

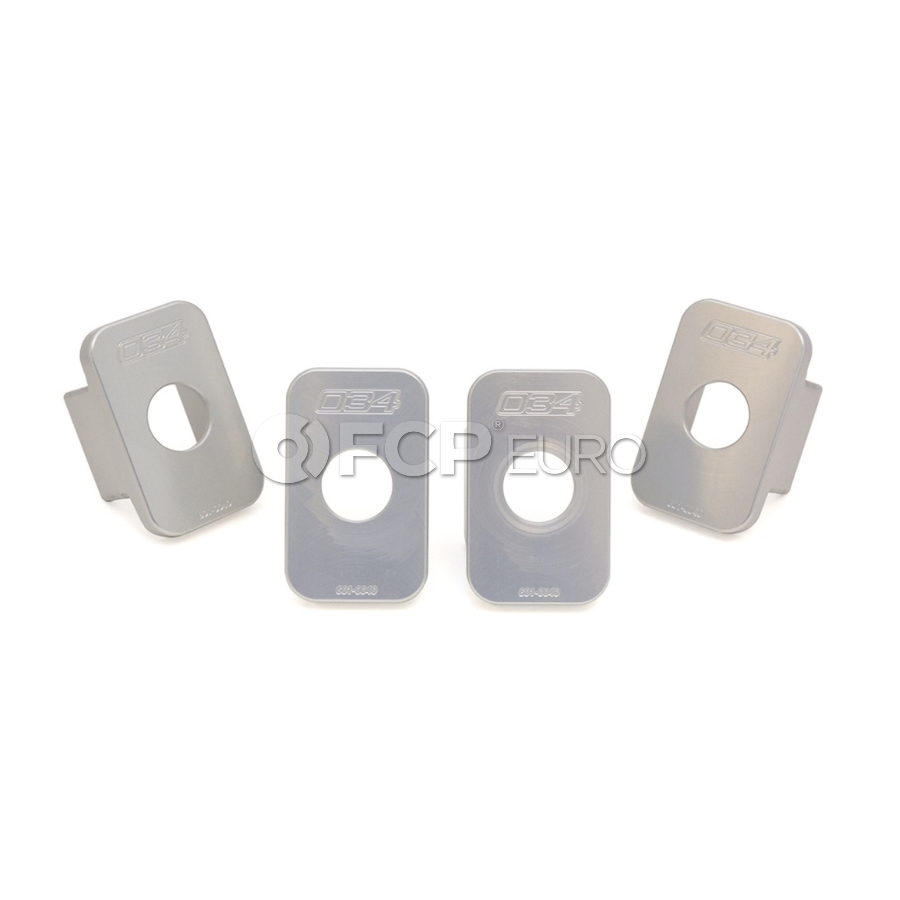

034Motorsport is pleased to present Billet Aluminum Rear Subframe Mount Inserts for the 8J/8P Audi TT/TTS/TTRS & A3/S3/RS3 Quattro, MkV/MkVI Volkswagen R32 & Golf R!

Audi/Volkswagen vehicles equipped with Haldex AWD utilize rubber subframe bushings which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. This precisely engineered billet aluminum insert kit is designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.

Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

These inserts were tested extensively by 034Motorsport and independent Audi/Volkswagen enthusiasts before release. Installation is very simple, can be performed in under an hour, and is completely reversible.

Features:

  • T6-6061 Billet Aluminum Construction
  • CNC-Machined In-House
  • Clear Anodized Finish for Durability
  • Engineered to Fill Voids In Factory Rear Subframe Mounts
  • Helps Maintain Proper Suspension Geometry When Cornering
  • Reduces Rear Subframe Movement During Launches & Acceleration
  • Improves Shifting Feel, Resulting in Crisper Shifts
  • Virtually No Additional NVH Transfer Inside Cabin
  • Easy, Straightforward Installation

What's Included:

  • 034 Motorsport Billet Aluminum 8J/8P & MkV/MkVI AWD Rear Subframe Mount Insert - (Set of 4)

Please Note: The four factory rear subframe bolts can be reused at the torque specified in our Installation Guide. If you wish to purchase new stretch factory hardware, the part number for these bolts is N10505301.

Fits These Cars

Audi A3 Quattro

  • 2006 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 3.2L V6 BUB Gas
  • 2007 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 3.2L V6 BUB Gas
  • 2008 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 3.2L V6 CBRA Gas
  • 2009 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 2.0L L4 CCTA Gas
  • 2009 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 3.2L V6 CBRA Gas
  • 2010 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 2.0L L4 CCTA Gas
  • 2011 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 2.0L L4 CCTA Gas
  • 2012 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 2.0L L4 CCTA Gas
  • 2013 Audi A3 Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 2.0L L4 CCTA Gas

Audi TT Quattro

  • 2008 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 3.2L V6 CBRA Gas
  • 2008 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Convertible 3.2L V6 CBRA Gas
  • 2008 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 3.2L V6 CBRA Gas
  • 2008 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Coupe 3.2L V6 CBRA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CCTA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Convertible 2.0L L4 CCTA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CCTA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Coupe 2.0L L4 CCTA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 3.2L V6 CBRA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Convertible 3.2L V6 CBRA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 3.2L V6 CBRA Gas
  • 2009 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Coupe 3.2L V6 CBRA Gas
  • 2010 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CCTA Gas
  • 2010 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CCTA Gas
  • 2011 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CETA Gas
  • 2011 Audi TT Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CETA Gas
  • 2012 Audi TT Quattro Premium Plus Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2012 Audi TT Quattro Premium Plus Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2012 Audi TT Quattro Prestige Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2012 Audi TT Quattro Prestige Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2013 Audi TT Quattro Premium Plus Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2013 Audi TT Quattro Premium Plus Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2013 Audi TT Quattro Prestige Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2013 Audi TT Quattro Prestige Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CETA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012

Volkswagen R32

  • 2008 Volkswagen R32 Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Hatchback 3.2L V6 CBRA Gas

Audi TTS Quattro

  • 2009 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CDMA Gas
  • 2009 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CDMA Gas
  • 2010 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CDMA Gas
  • 2010 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CDMA Gas
  • 2011 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CDMA Gas
  • 2011 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CDMA Gas
  • 2012 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CDMA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2012 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CDMA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2013 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Convertible 2.0L L4 CDMA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012
  • 2013 Audi TTS Quattro Subframe Mount Insert Set (Rear)
    Automatic Dual Clutch AWD Coupe 2.0L L4 CDMA Gas
    Notes: Only for Models Up To Production Range: 05-28-2012

Audi TT RS Quattro

  • 2012 Audi TT RS Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Coupe 2.5L L5 CEPB Gas
  • 2013 Audi TT RS Quattro Subframe Mount Insert Set (Rear)
    Manual AWD Coupe 2.5L L5 CEPB Gas
