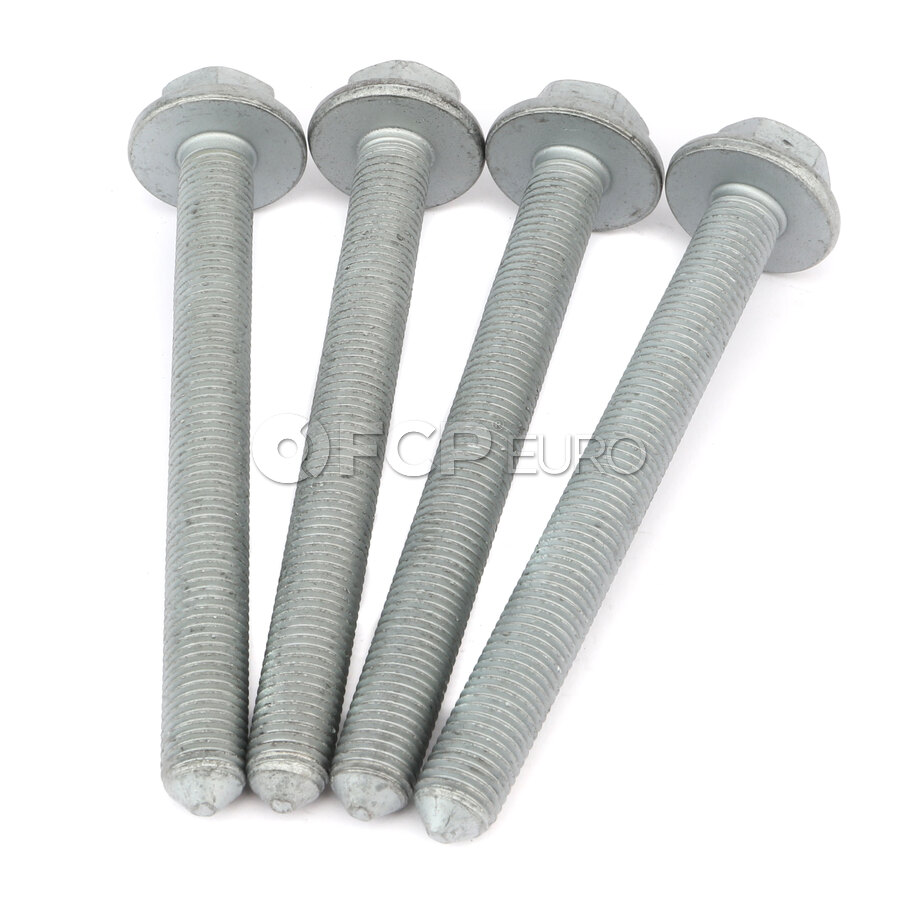

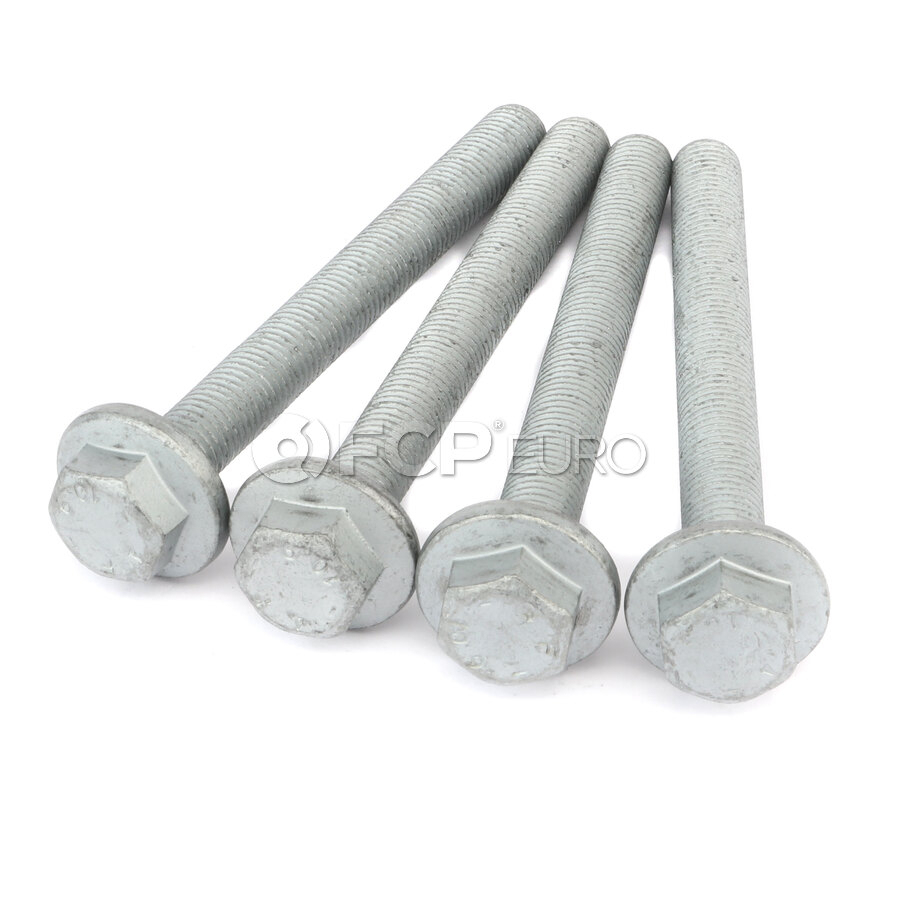

Audi VW Subframe Mount Bolt Kit - 034Motorsport 034601Z008

Product Information

A subframe mount bushing (also referred to simply as a subframe mount) is a vibration-isolating bushing used to connect the front and rear subframe to the vehicle’s main body or unibody. The subframe itself serves as a structural framework to mount key assemblies such as the suspension, engine, and transmission. Because the drivetrain and suspension are mounted to the subframe, they naturally transmit vibrations to the body of the car. The subframe mount acts as an additional cushion, absorbing vibrations, shocks, and road noise while allowing some flexibility in the subframe’s movement. This helps reduce stress on the vehicle’s body and provides a smoother, more comfortable ride.

There are a few common types of subframe mounts. In an OE application such as a stock vehicle, the mount is typically made of solid rubber, voided rubber (some holes to increase flexibility), or occasionally hydraulic-filled rubber. In performance and race applications, minimizing movement in the subframe is important to maintain correct suspension geometry during high G-loads, so going to polyurethane mounts or reinforcements is a popular upgrade.

Aging or torn subframe mounts can cause several issues, including poor handling or tracking of the wheels, inability to maintain an alignment with abnormal tire wear, and bangs or clunks when transferring load front to back, like when braking or accelerating. Inspect the mounts for cracks or tears, or leaks if the mount is hydraulic.

• Bangs and Clunks: If you are experiencing clunks or bangs when going over bumps, or when braking or accelerating is a sign that the entire subframe is moving around excessively and the mounts may be bad.
• Increased Vibration (NVH): Subframe mount bushings are designed to isolate vibrations from the engine and suspension. When they go bad, they will not effectively absorb NVH, and you will feel more vibrations transferred to the cabin.
• Handling and alignment issues: Since the suspension is connected to the subframe, the mounts must be in good shape. If they aren't, the suspension will have more freedom of movement independent from the car body/frame, and it may also be difficult to maintain an alignment.
• Excess Movement: With the car securely off the ground, use a lever like a pry bar between the subframe and the body of the car. If there is excess movement and it is easy to shift the subframe, the mounts should be replaced.

About 034Motorsport

034Motorsport was founded by Javad Shadzi in 2005, with a passion for bringing motorsport-quality performance upgrades and tuning to Audi and Volkswagen vehicles. The company has since evolved and grown to meet the expanding needs of enthusiasts, but the underlying passion for innovation, performance, and quality remains. We are dedicated to providing our customers with only the best performance products, tuning, and service for their Audi or Volkswagen.

034Motorsport is owned and operated by enthusiasts like you! This means you can expect knowledgeable advice and enthusiastic customer service every time. When we aren't at work, you can find us at local car meets, Audi Club Track Days, or at home wrenching on our own cars.

034Motorsports prides themselves on developing the finest track-proven and street-friendly performance upgrades for Audi and Volkswagen enthusiasts. The 034Motorsport Performance Facility in Fremont, CA is home to our engineering, manufacturing, and tuning departments. Staffed by highly-skilled enthusiasts, these departments work in unison to design, test, build, and calibrate the latest in performance upgrades for Audi and Volkswagen applications. Unlike other companies that merely drop-ship parts or outsource development, they do it all under one roof to ensure that 034Motorsport products are the highest quality on the market.
