Audi Throttle Body Inlet System - APR MS100198

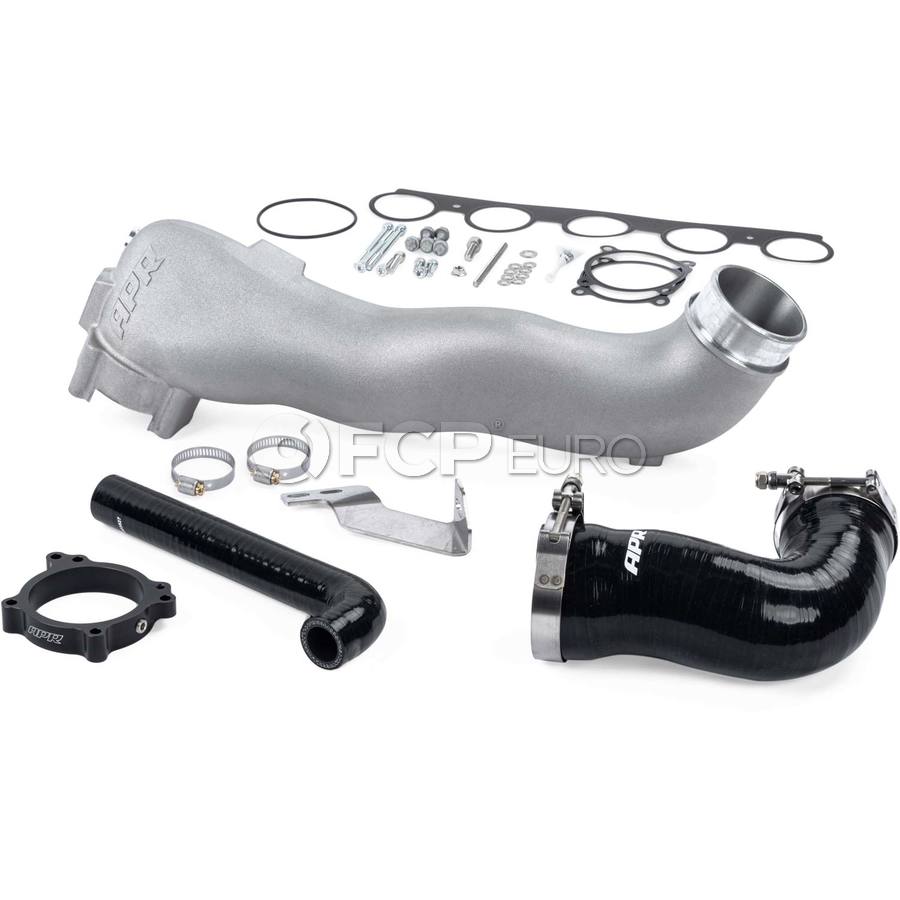

The APR Throttle Body Inlet System is a comprehensive upgrade to the factory charge pipe system from the intercooler outlet to the throttle body. We replace all components and provide a new, larger, free flowing system that flows roughly 34% more than stock! This was achieved by increasing the cross sectional area of the system and by reducing the tight radius bend directly in front of the throttle body.

Our system does away with two potential boost leak points thanks to our single cast design. We've upgraded the factory rubber intercooler outlet hose to a multi-ply wire-reinforced silicone design with strong t-bolt clamps that resist boost leaks better than their stock counterparts. Our new billet throttle body to manifold adapter provides a convenient boost and vacuum reference point which can be used for a gauge, or anything else in that suits your build. Lastly the system comes complete with new throttle body and intake manifold gaskets, which are common problematic leak point many never know to address.

This comprehensive system is much larger than stock thanks to the sweeping design of the cast inlet pipe, and oversized silicone hose. However, despite being dramatically larger than stock, the complete system is a negligible 2.4 lbs over stock! Simply put, the APR system is a complete upgrade from start to finish, flows better than stock and our competition, and is the only throttle body inlet system you'll ever need!

Features:

• Flows 34% more than stock
• Full system from intercooler to throttle body
• Full length oversized cast aluminum throttle body pipe with sweeping transitions
• Eliminates 2 boost leak points
• Multi-ply wire-reinforced fluorosilicone-lined intercooler outlet hose with EZ-flow stepped lips
• Oversized setup starting at the intercooler outlet hose at approximately 72mm vs 64mm
• Billet aluminum throttle body adapter with boost and vacuum reference point
• High strength t-bolt clamps
• New intake manifold gasket, throttle body gaskets, o-rings, and one time use bolts
• CNC-bent and laser cut mounting bracket
• Silicone diverter valve reroute hose
• Full instructions and APR support included
• Compatible with 2019+ vehicles with optional adapter

EMISSIONS:

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Note: 2019+ model year vehicles require the MS100198-A adapter unless the vehicle already has our full intake system with CI100038-G diverter valve adapter. On some European models, the MAP sensor in the manifold has the bolt hole opposite of the connector, rather than off to the side of the sensor, and as such, is not compatible with this part.

Installation:

The installation guide can be found HERE!
