Audi Upgraded Primary Radiator - 034Motorsport 0341021005

If you drive your B9/B9.5 Audi S4/S5, RS4/RS5 & C8 S6/S7 on track, push it hard on backroads, or even during daily commutes in hot climates, the 034Motorsport Radiator Upgrade is the perfect solution to help regulate and maintain optimal engine coolant temperature. High-performance driving, especially with added power, can push your engine to generate excessive heat that the factory main radiator may struggle to dissipate. This can lead to elevated coolant temperatures, reducing the effectiveness of your vehicle’s cooling system and potentially impacting performance. The 034Motorsport Radiator Upgrade is designed to address these challenges, ensuring your EA839 2.9TT or 3.0T stays cool no matter the conditions.

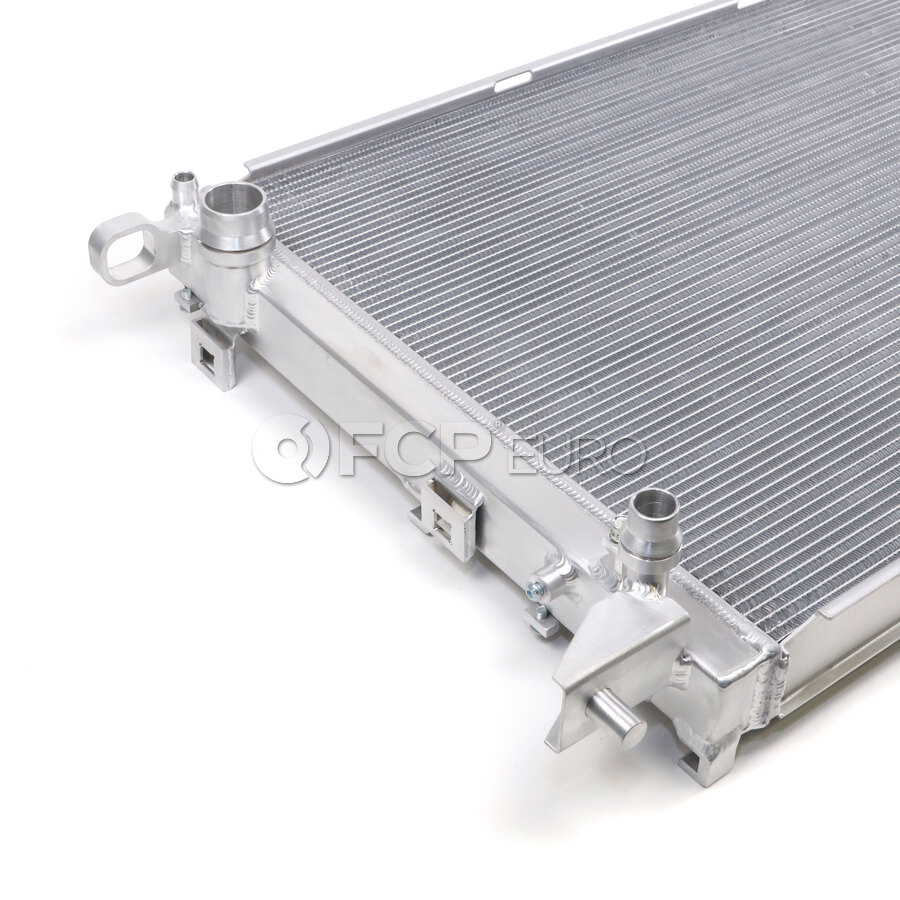

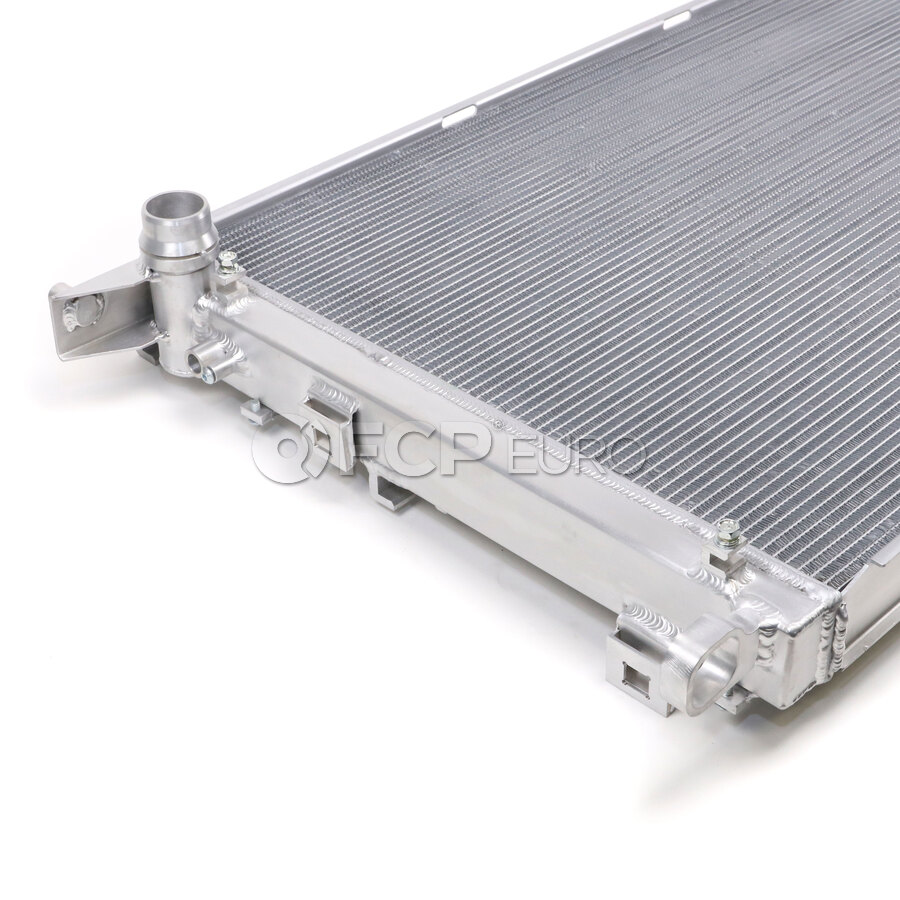

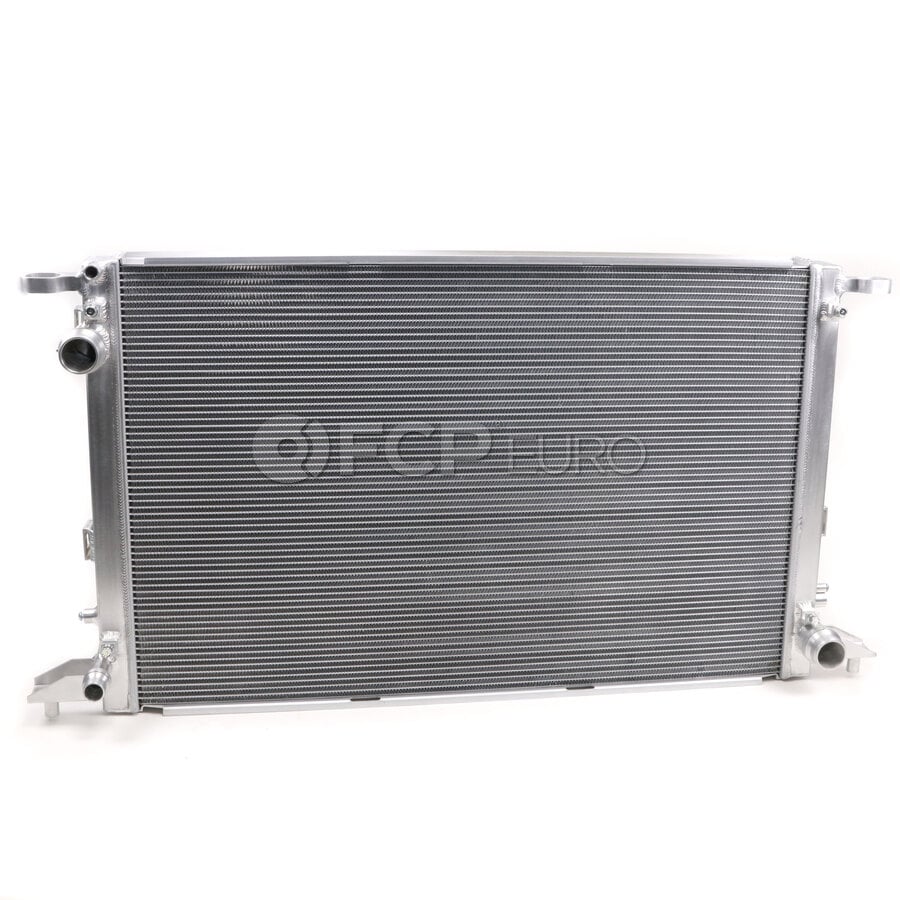

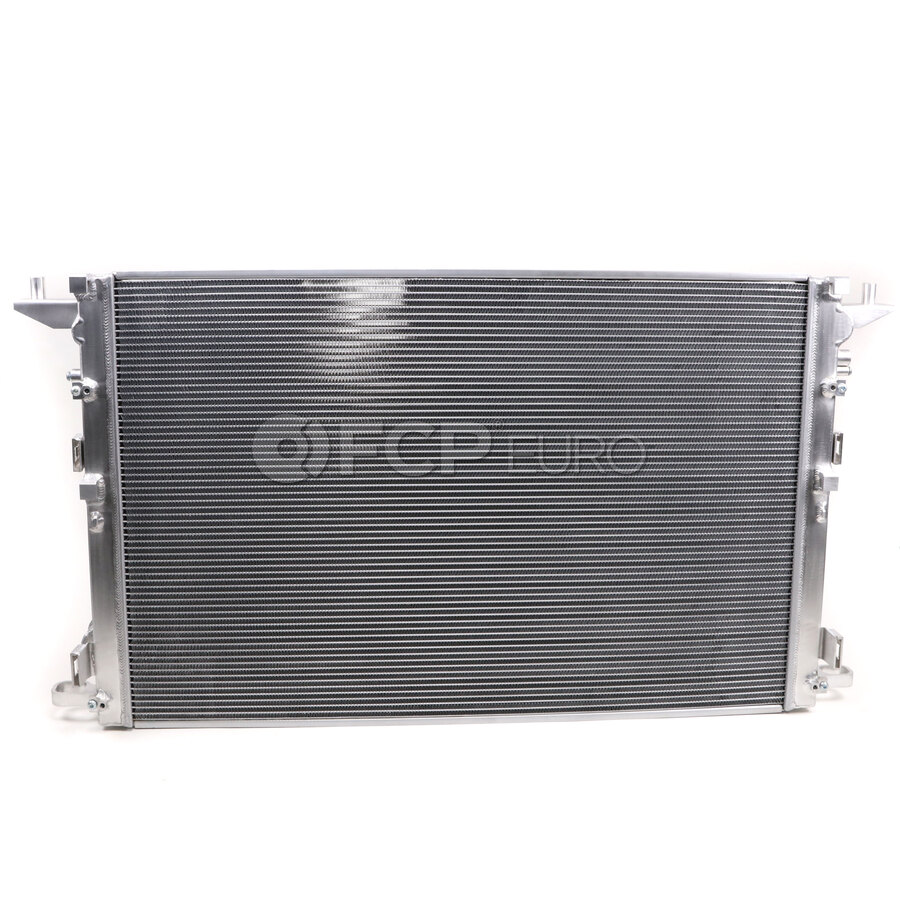

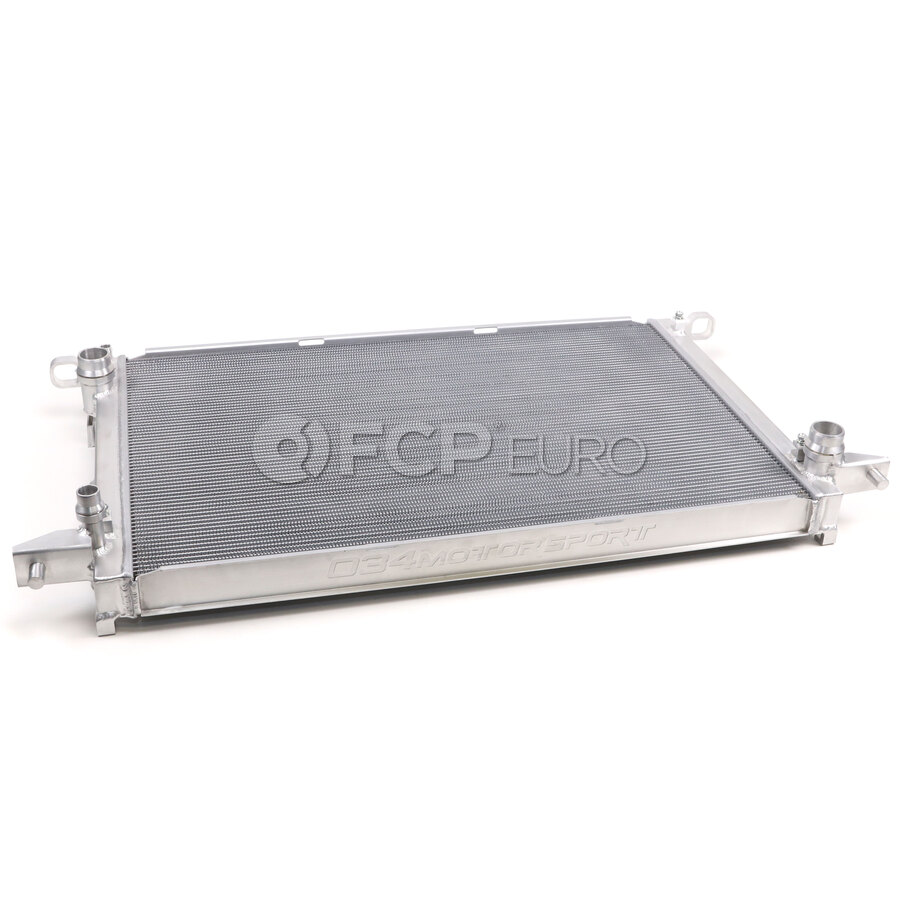

The 034Motorsport Radiator Upgrade is designed to replace your factory radiator with the larger and more efficient 034Motorsport Radiator, engineered in collaboration with the cooling experts at CSF Radiators. The 034Motorsport Radiator Upgrade utilizes an all-aluminum construction, engineered to be a drop-in replacement for the factory radiator. Featuring a thicker performance radiator core and re-engineered billet aluminum end tanks to improve the efficiency of coolant flow, the 034Motorsport Radiator Upgrade increases the coolant capacity by 40% and improves heat transfer from the coolant to the air. This improvement in capacity results in a 16% improvement in cooling capacity by allowing your vehicle to retain the optimal temperature during high-performance driving and mitigating temperatures from rising!

Not only is it larger, but the 034Motorsport Radiator Upgrade utilizes 65 individual 2-row B-tube technology cooling tubes that carry coolant across the radiator core to help disperse heat, significantly reducing recovery time between pulls! CSF’s “B-tubes” are carefully formed and seam-brazed for a stronger, more efficient design than traditional welded “O” tubes. This allows for thinner, lighter aluminum with improved cooling. The seam-brazed inlet increases heat transfer surface area by ~15%, delivering the efficiency of two smaller tubes within the same space. This improved tube design over the factory is integral to enhancing the cooling process of the 034Motorsport Radiator Upgrade.

034Motorsport Engineers extensively tested the 034Motorsport Radiator Upgrade on 034Motorsport's Development B9 S4 & RS5 on backroads and at multiple racetracks. Whether you’re looking to tackle backroad and track adventures or live in a higher-temperature climate, the Radiator Upgrade provides the cooling performance you need to keep your engine running at its best, lap after lap, mile after mile, regardless of the ambient temperature!

Additional Cooling Upgrades for B9/B9.5 Audi S4/S5:

When looking to further improve the cooling performance of your Audi B9 S4/S5, consider pairing the 034Motorsport Radiator Upgrade with the Auxiliary Radiator Upgrade Kit, which replaces the factory side-mounted radiator with an upgraded unit from CSF Radiators!

Features:

• All Aluminum Construction
• Billet Aluminum End Tanks With Machined Inlet & Outlet, and Mounting Provisions
• 100% Tig Welded
• Direct, Drop-In Installation, Compatible with OEM Accessories
• 40% Increase in Radiator Coolant Capacity Over Factory Radiator (OEM: 2.5L Coolant Capacity / 034: 3.5L Coolant Capacity)
• Increased Core Thickness Over Factory Radiator (OEM: 35mm / 034: 42mm)
• 65 2-Row B-Tubes with 5mm Fin Height
• 16% Increase in Cooling Capacity
• Manufactured by CSF Specifically for 034Motorsport
