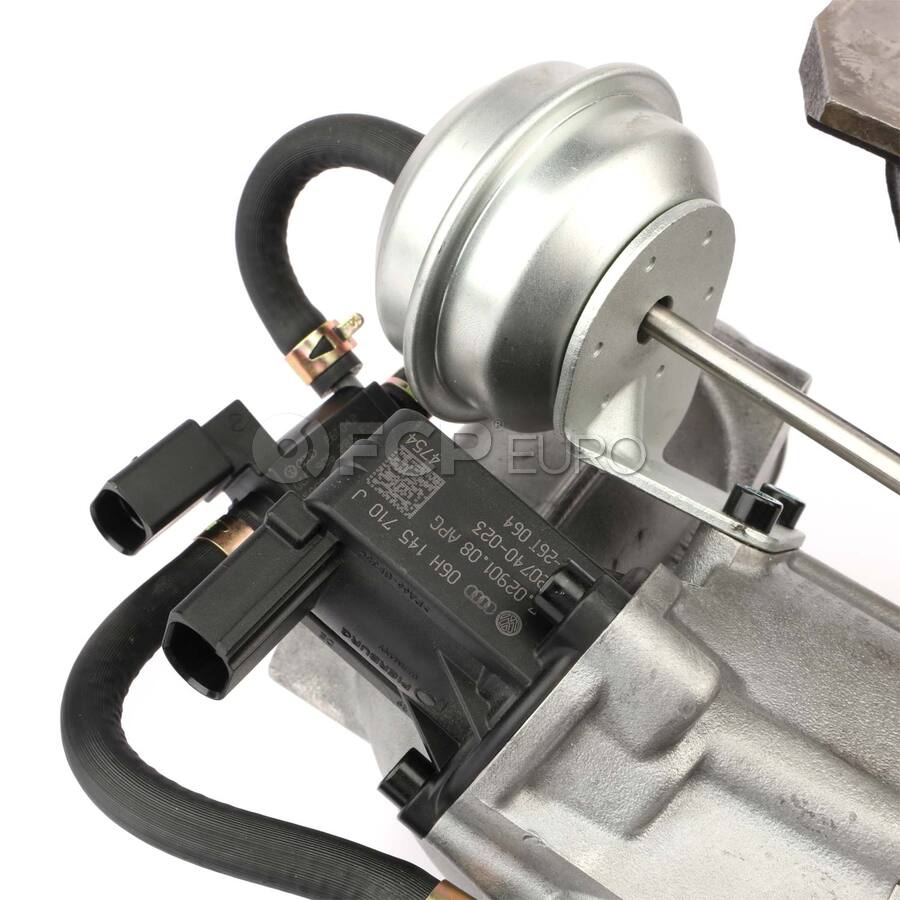

Audi Turbocharger Kit - Genuine Audi J0A145703SX

Genuine Audi Turbocharger Kit - Remanufactured

Audi Genuine Remanufactured Parts are produced to provide high performing parts at a competitive price while reducing waste. These are OEM parts that are disassembled, cleaned, and inspected by an authorized third party. Components are validated against the factory specifications and replaced as required. Wear items, such as bearings and seals, are replaced 100% of the time to help ensure high quality.

Benefits:

• Parts are remanufactured using the factory specifications as a guideline helping ensure the performance and durability exceed aftermarket alternatives.
• All components are inspected and validated against the factory specification during the re-manufacturing process to help ensure quality.
• Each finished part is tested to help ensure you can count on Audi Genuine Remanufactured Parts to restore your vehicle’s performance.
• Easy to use packaging to simplify core returns

Kit Contents:

Exhaust Manifold to Cylinder Head:

• Manifold to Cylinder Head - Gasket (1)
• Manifold Lock Nuts (5)

Turbocharger to Catalytic Converter:

• Turbocharger to Catalytic Converter - Gasket (1)
• Exhaust Studs (4)
• Exhaust Lock Nuts (4)

Turbocharger Support Bracket:

• Bracket to Turbocharger - Bolt (1)
• Bracket to Engine Block - Bolt (1)

Turbocharger Misc.:

• Vacuum Line - Ear Crimp Clamp (1)

Turbocharger Oil Feed:

• Oil Inlet Hose (1)
• Banjo Bolt (1)
• Crush Washer (2)
• Oil Inlet Hose Bolt (2)

Turbocharger Oil Return:

• Oil Outlet Hose Gaskets (2)
• Oil Outlet Hose Bolts (4)

Turbocharger Coolant Feed and Return:

• Crush Washer (6)

Installation Documentation:

J0A-145-703-SX
