Audi DSG Transmission Service Kit - Genuine Audi G055529A2KT

Audi DSG Transmission Service Kit

This Transmission Service Kit was created to service the DL382 7-Speed Transmission (0CL / 0CK / 0CJ / 0HL / 0DK) found in B9 A4/A5, 80A Q5, and C8 A6/A7 models.

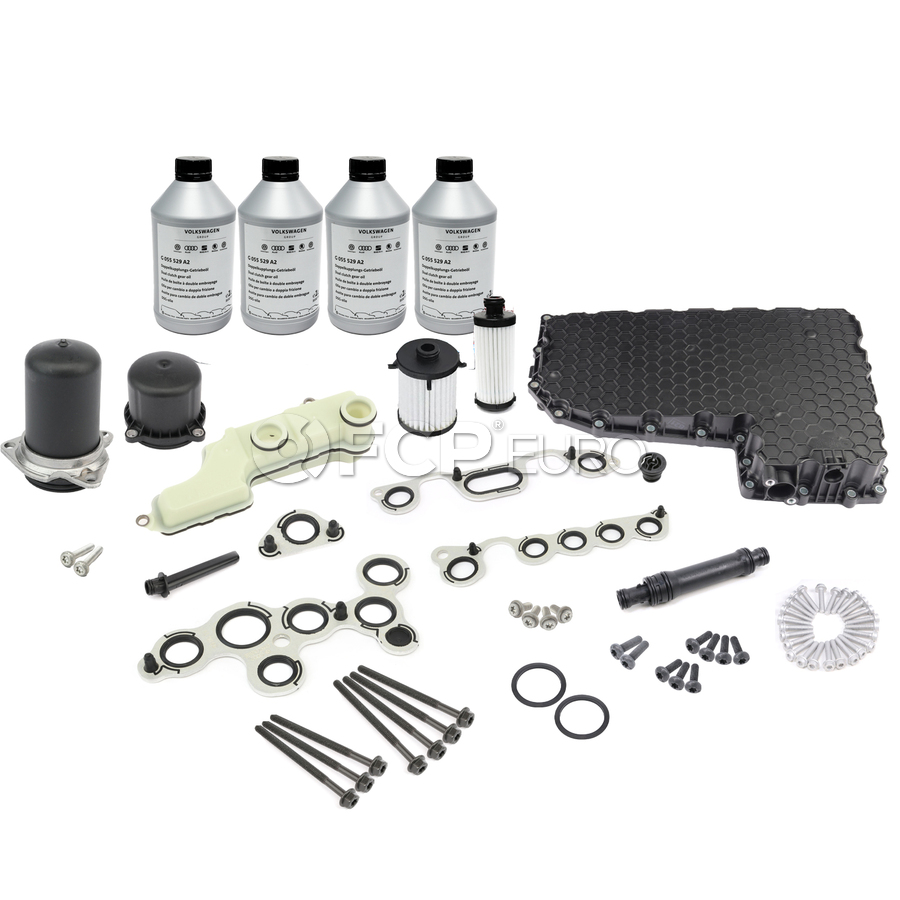

This Kit Includes:

• 4L of Genuine DSG Transmission Fluid
• DSG Transmission Drain Plug
• DSG Transmission Fill Plug
• Low Pressure Transmission Filter
• High Pressure Transmission Filter
• Low Pressure Transmission Filter Cover
• High Pressure Transmission Filter Cover
• Transmission Pan with Integrated Magnets
• Transmission Valve Body Gaskets
• All Necessary Hardware

Please Note:

In this Kit, you will notice (2) 0CK-927-523 - Mechatronic Connector Seals included. Audi states that a second sealing ring is optional, if the sealing ring has been replaced due to a leak.

To perform this service you will need the following tools:

• A scan tool that has the capability to read the transmissions temperature / disable the pump / etc. We recommend any Audi enthusiast to own a Ross-Tech scan tool found HERE! that has that capability and much more.
• CTA Tools ATF Filling Adapter - CTA-7430
• Specialty Tool T40199 (M6x100MM Threaded Rod) - Not needed, yet recommended to help guide the Mechatronic Unit into the housing.
• Specialty Tool T40305 - Not needed, yet recommended to assist in removal and reinstallation of the Mechatronic Unit Connector.

While performing this service, it may be necessary to remove the subframe hardware to gain access to the Transmission. Listed below is a Suspension Subframe Mounting Kit that was assembled to be purchased separately, if needed.

• A4/A4 Quattro/A4 Allroad/A5 Quattro/A5 Sportback - Suspension Subframe Mounting Bolt Kit - KIT-N91156101KT
• Q5/Q5 PHEV/Q5 Sportback - Suspension Subframe Mounting Bolt Kit - KIT-N91247202KT2
• A6/A6 Allroad/A7 - Suspension Subframe Mounting Bolt Kit - KIT-N91247202KT3
