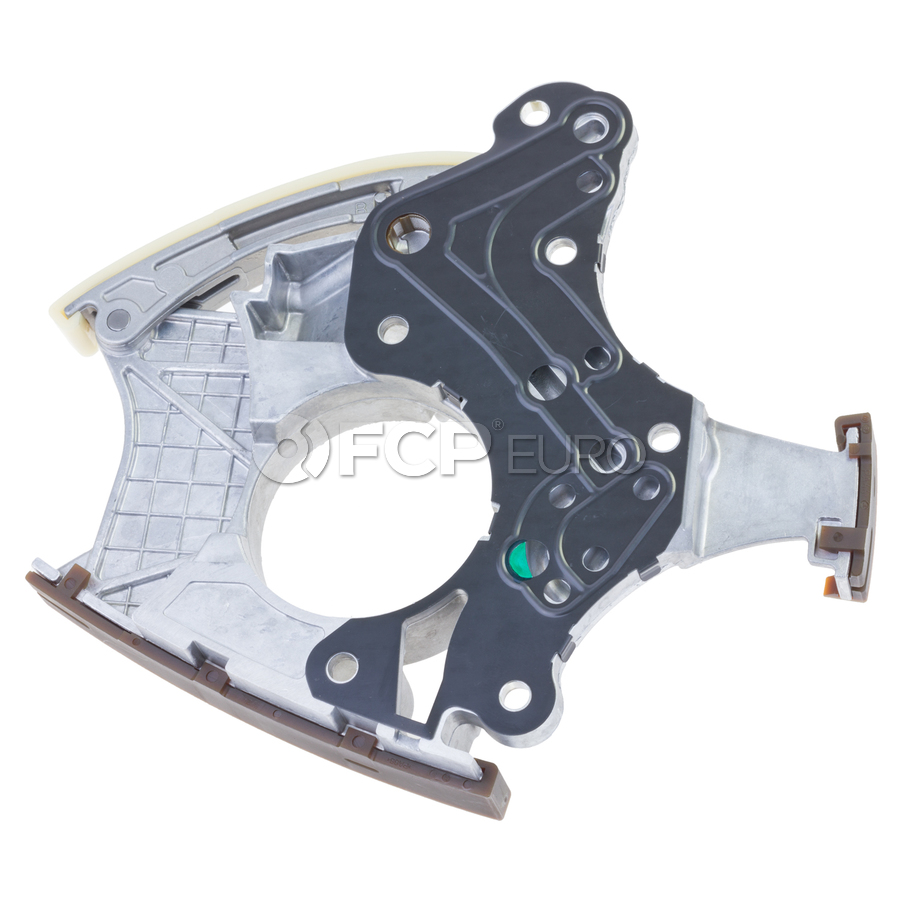

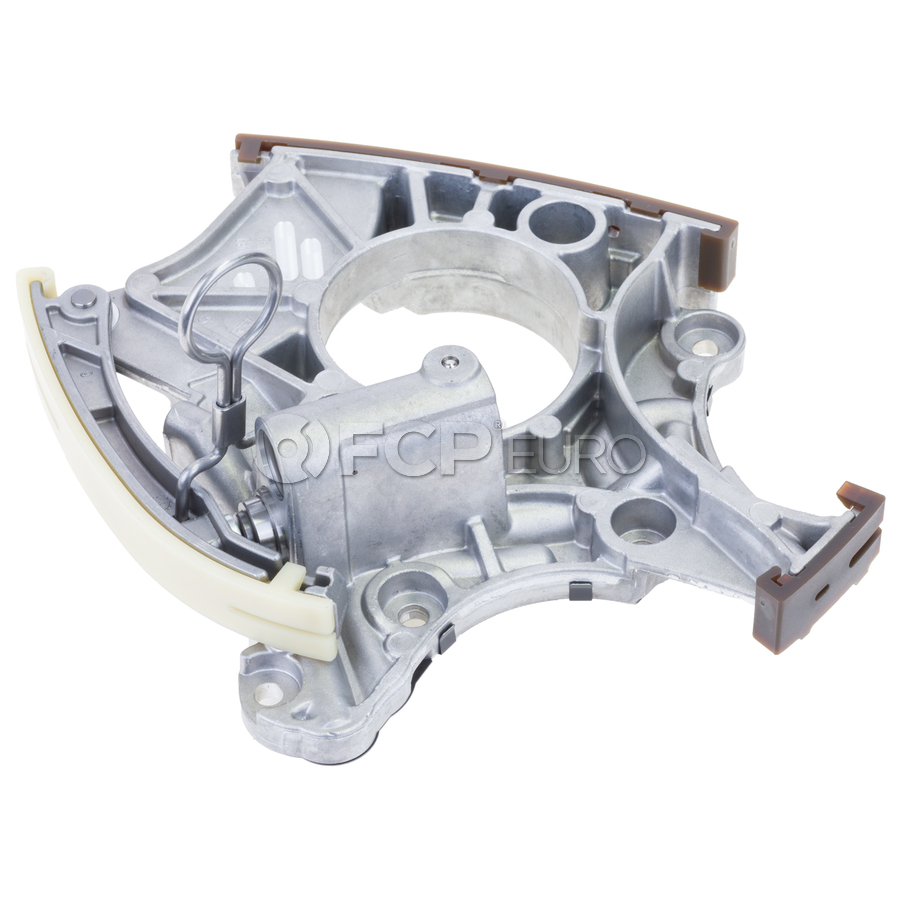

More Audi VW Timing Chain Tensioner - INA 06E109217H
Audi VW Timing Chain Tensioner - INA 06E109217H Audi VW Timing Chain Tensioner - INA 06E109217H Audi VW Timing Chain Tensioner - INA 06E109217H
INA
SKU: INA-5510049100

Audi VW Timing Chain Tensioner - INA 06E109217H

A4, A4 Quattro, A6, A6 Quattro, RS4

Save for later
1 Rating
Available
In Stock
Price each: $160.44
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
INA-5510049100
FCP Euro ID:
511800
GTIN / UPC:
0670774381928
Made in:
Slovakia
Quality:
OE

OE Numbers

06E109217H, 06E109217AN

MFG Numbers

5510049100, ZT00491

Product Information

This timing chain tensioner from INA is an OEM replacement for the one found on your Audi/VW. The timing chain tensioner is responsible for keeping tension against the timing chain preventing any slack in the chain from occurring. If the timing chain tensioner fails, the chain will develop slack which could possibly allow the engine to jump timing which could lead to catastrophic engine damage. Common fault symptoms could be a rattling noise from your engine's timing system, rough running, or a no-start condition. This tensioner is located on the upper left part of the chain.

Engine Timing Chain Tensioner

An Engine Timing Chain Tensioner preloads the timing chain to prevent slack in the timing chain system. Too much chain slack will result in derailment of the timing chain which could cause engine failure. Engine timing chain tensioners are typically oil fed so it is vital to verify you have adequate oil volume and pressure when troubleshooting the timing chain tensioner. Common failure systems include chain rattle or slap on startup, or camshaft/crankshaft correlation fault codes.

Engine Timing Chain Tensioner Failure Symptoms
  • Rattling or Clanking Noise: One of the most common symptoms of a failing timing chain tensioner is a noticeable rattling, clanking, or ticking noise, especially on startup. This is because the tensioner may no longer be maintaining proper tension on the chain, causing it to become loose and hit surrounding components.
  • Check Engine Light: A failing tensioner can cause timing issues that may trigger the vehicle’s check engine light. Common faults codes will correlate to a camshaft/ crankshaft fault as these sensors will detect that the timing is off.
  • Valvetrain or piston damage: As the timing being off significantly enough in an interference engine can cause the valvetrain to come into contact with the piston surface

About INA

Almost every modern passenger car contains an INA engine and transmission component. INA is a global manufacturer of OEM (Original Equipment Manufacturer) roller bearings, linear motion, engine components, plain bearings and precision components meaning that the original parts removed from your car will most likely have INA stamped right on it.

Today INA is a division of the Schaeffler Group, which also includes FAG and LuK, they are the second-largest bearing manufacturer in the world. Their bearings are used in the space shuttle and the Millennium Wheel in London. Schaeffler has manufacturing facilities all around the world including Danbury CT. We offer INA's full line of OE and OEM components for your European vehicle.

INA Timing Components

The timing drive is crucial for the perfect interaction between the camshaft and crankshaft. Power transmission is possible by means of a timing chain or toothed belt. Schaeffler has more than 100 years of experience in the field of chain drives and works continuously on the further development of its products in 18 research and development centers around the globe. Schaeffler is also a leading manufacturer of idler pulleys and mechanical belt tensioners for dry belt drives and belts in oil. The INA program for the independent aftermarket includes repair solutions with all relevant components for time-saving and professional repairs.

Technology leader in valve train

Irrespective of which future technologies will one day be up to date, road traffic cannot be imagined without classic combustion engines for the time being. In order to reduce consumption and emissions, an effective combustion process in the engine is crucial. The valve train is an important lever for achieving this. With its INA brand, Schaeffler is a pioneer when it comes to technical advancements in the valve train.

Fits These Cars

Audi A4

  • 2005 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 2.0L L4 BPG Gas
  • 2005 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Manual FWD Sedan 2.0L L4 BPG Gas
  • 2006 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic FWD Sedan 2.0L L4 BPG Gas
  • 2006 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 2.0L L4 BPG Gas
  • 2006 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Manual FWD Sedan 2.0L L4 BPG Gas
  • 2006 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic FWD Sedan 3.2L V6 BKH Gas
  • 2006 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 3.2L V6 BKH Gas
  • 2006 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Manual FWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Manual FWD Sedan 3.2L V6 BKH Gas
  • 2008 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 3.2L V6 BKH Gas
  • 2008 Audi A4 Engine Timing Chain Tensioner (Left Upper)
    Manual FWD Sedan 3.2L V6 BKH Gas

Audi A4 Quattro

  • 2005 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 2.0L L4 BPG Gas
  • 2005 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Wagon 2.0L L4 BPG Gas
  • 2005 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2005 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Wagon 3.2L V6 BKH Gas
  • 2005 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 2.0L L4 BPG Gas
  • 2005 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 2.0L L4 BPG Gas
  • 2005 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2005 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 3.2L V6 BKH Gas
  • 2006 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 2.0L L4 BPG Gas
  • 2006 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Wagon 2.0L L4 BPG Gas
  • 2006 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2006 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Wagon 3.2L V6 BKH Gas
  • 2006 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 2.0L L4 BPG Gas
  • 2006 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 2.0L L4 BPG Gas
  • 2006 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2006 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2007 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Wagon 3.2L V6 BKH Gas
  • 2007 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A4 Quattro Cabriolet Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Convertible 3.2L V6 BKH Gas
  • 2008 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2008 Audi A4 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Wagon 3.2L V6 BKH Gas
  • 2008 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2008 Audi A4 Quattro Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 3.2L V6 BKH Gas
  • 2008 Audi A4 Quattro Cabriolet Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Convertible 3.2L V6 BKH Gas
  • 2009 Audi A4 Quattro Cabriolet Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Convertible 3.2L V6 BKH Gas

Audi A6 Quattro

  • 2005 Audi A6 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2006 Audi A6 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2006 Audi A6 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A6 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2007 Audi A6 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas
  • 2008 Audi A6 Quattro Avant Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Wagon 3.2L V6 BKH Gas
  • 2008 Audi A6 Quattro Engine Timing Chain Tensioner (Left Upper)
    Automatic AWD Sedan 3.2L V6 BKH Gas

Audi A6

  • 2006 Audi A6 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 3.2L V6 BKH Gas
  • 2007 Audi A6 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 3.2L V6 BKH Gas
  • 2008 Audi A6 Engine Timing Chain Tensioner (Left Upper)
    Automatic CVT FWD Sedan 3.2L V6 BKH Gas

Audi RS4

  • 2007 Audi RS4 Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 4.2L V8 BNS Gas
  • 2008 Audi RS4 Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Sedan 4.2L V8 BNS Gas
  • 2008 Audi RS4 Cabriolet Engine Timing Chain Tensioner (Left Upper)
    Manual AWD Convertible 4.2L V8 BNS Gas

Product Reviews

1 Review

5.0
Average rating
Leave a review
John
on Fri, Jan 25 at 05:37PM
OE part
This is a quality tensioner. It’s the same as the one that was replaced.

Questions & Answers

Ask a question
Question Posted by a customer
Does this tensioner come with the gasket?
Answer (Posted by FCP Euro Products Team)
No a gasket would not be included with this tensioner.
