SKU: KIT-06K109158BPK3

Audi Timing Chain Kit - FCP Euro 06K109158BPK3

Q5

Save for later
Available
Ships in 1 business day
Price each: $790.72
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-06K109158BPK3
FCP Euro ID:
Quality:
OEM

OE Numbers

06K109158, 06K109158AA, 06K109158AD, 06K109158BE, 06K109158BP, 06K109158H, 06K109158L, 06K109158AF, 06K109158BJ, 06H109509AA, 06H109509Q, 06K109469M, 06K109469N, 06K109158A, 06H109158H, 06H109158D, 06K109158BS, 06K109158AM, 06H109509P, 06H109469N, 06H109469AQ, 06H109469AH, 06H109467AP, 06H109467AT, N91130301, PAF008944, N91130401, N10544904, 06K109507F, 06K103144D, N91232801, 06K103483, 06L103483A, 06K103583, 06K109210, 06K109210AF, 06K109210AJ, 06K109210AE, N91096705, WHT003463, D176501A1, WHT009475, 4L1955425C, WHT001760, PAF009475, 06H109467N

MFG Numbers

50052407, 0011017374, 001-10-27346, 0011027346, 0011027347, 51006003, 50052405, 5520179100, 0011017378, 001-10-17378, 5520180100, ZG0180, 107156, 872.370, 872370, 231.851, 231851, 06K109467K

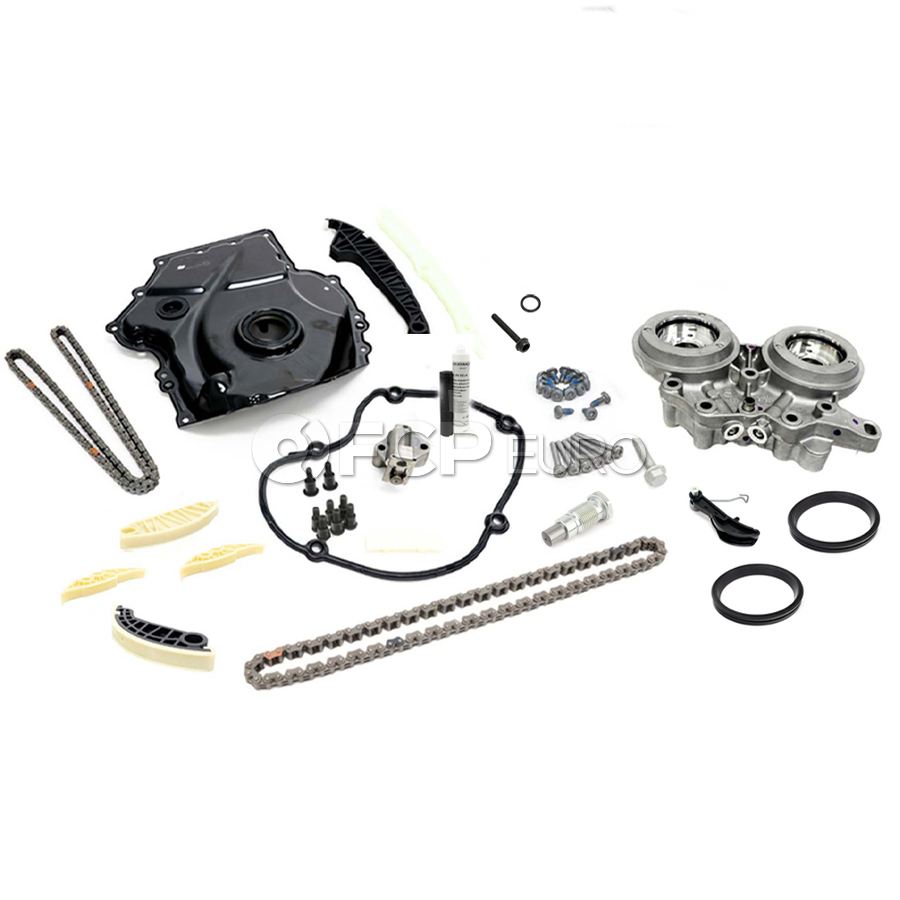

This Kit Includes

Qty Part SKU Brand Price
1 Engine Timing Chain IWI-50052407 $129.99
1 Engine Timing Chain Guide BBR-0011017374 $16.89
1 Engine Timing Chain Guide BBR-0011027346 $18.69
1 Engine Timing Chain Guide BBR-0011027347 $3.79
1 Engine Balance Shaft Chain IWI-50052405 $140.51
1 Engine Balance Shaft Chain Guide INA-5520179100 $5.89
1 Engine Balance Shaft Chain Guide BBR-0011017378 $13.89
1 Engine Balance Shaft Chain Guide INA-5520180100 $3.87
1 Engine Balance Shaft Chain Tensioner FEB-107156 $71.99
2 Engine Timing Chain Guide Bolt VAG-N91130301 $11.58
6 Engine Timing Chain Guide Bolt OES-N91130401 $12.54
1 Bolt VAG-N10544904 $5.73
1 Engine Oil Pump Chain Tensioner VAG-06K109507F $59.98
1 Engine Camshaft Bracket VAG-06K103144D $104.77
6 Bolt VAG-N91232801 $4.74
1 Engine Timing Cover Gasket ELR-872370 $30.29
1 Engine Timing Cover ELR-231851 $67.97
15 Engine Timing Cover Bolt VAG-N91096705 $8.85
1 Engine Oil Dipstick Tube Seal VAG-WHT003463 $1.19
1 Engine Oil Pan Gasket VAG-D176501A1 $25.99
1 Engine Crankshaft Pulley Bolt VAG-WHT009475 $8.29
1 Engine Timing Chain Tensioner BOR-06K109467K $43.29

Product Information

This kit is designed for the infamous P0016 Cam/Crank Correlation Code.

If you are experiencing a slow crank or no start we recommend you to scan the vehicle for faults first. If fault P0016 Cam/Crank Correlation fault shows its more than likely time to replace your timing chain. We recommend you to check base timing, perform cylinder compression and performed cylinder leak down. If you find low compression or cylinder leak we recommend you to use a bore-scope to check intake & exhaust valves for damage. If the valves are bent you will need to replace them as well.

Diagnosis Procedures To Check Before Repairing Your Timing Chain:

  • Scan Vehicle For Faults
  • Check Base Timing
  • Cylinder Compression Test
  • Cylinder Leak Down Test

This Kit Includes:

  • Camshaft Timing Chain
  • Camshaft Timing Chain Guides
  • Camshaft Timing Chain Tensioner
  • Camshaft Bracket
  • Upper Timing Chain Cover Gaskets
  • Lower Timing Chain Cover
  • Crankshaft Pulley Bolt
  • Balanceshaft Timing Chain
  • Balanceshaft Timing Chain Guides
  • Balanceshaft Timing Chain Tensioner
  • Sealant
  • New Hardware

Note:

During this repair, it will be necessary to drain the engine oil and remove the coolant lines to access the timing chains. We suggest reviewing the engine oil change kits and coolant alternatives available to guarantee that the repair is executed correctly.

Engine Timing Chain Kit

An engine timing chain is a crucial component in an internal combustion engine that synchronizes the rotation of the crankshaft and camshafts. It ensures that the engine's valves open and close at the proper times during each cylinder's intake and exhaust strokes, maintaining optimal engine performance. Timing chains are typically made of metal and are designed to last for the life of the engine, though they can wear out or become damaged over time. Damaged or stretched chains can impact the timing on an engine and overwork the tensioner, failures in this system can cause catastrophic engine failure and costly repairs.

Engine Timing Chain Kit Failure Symptoms
  • Noise: A common symptom of a failing timing chain is a rattling or slapping noise coming from the engine, especially during startup or acceleration. This noise may be more pronounced at idle or startup
  • Poor Engine Performance: If the timing chain is stretched, it can lead to decreased power, acceleration problems, or sluggish performance

About FCP Euro

FCP Euro offers quality parts, a hand-curated catalog, an unbeatable Lifetime Replacement Guarantee, all backed by one of the best customer service teams in the business. FCP Euro kits are hand-crafted and thoroughly researched to be complete solutions for the job. Our kits will contain a combination of parts from multiple brands that meet our high-quality standards.

Our online catalog features over 350,000 OE, OEM, and Genuine replacement parts including Volvo Parts, BMW Parts, Audi Parts, VW Parts, Mercedes Parts, Porsche Parts, and Saab Parts from a wide variety of top-quality manufacturers. Visit our OE Academy to learn more about brand quality and view interactive examples of exactly why so many customers and enthusiasts have come to love our catalog over the years.

Everything we sell is backed by our Lifetime Replacement Guarantee (yes, it's real!), which includes consumables and wear and tear items like brake pads, gaskets, rotors, filters, wiper blades, and everything else we sell! When you order a part from us, you'll never have to pay for it again.

Fits These Cars

Audi Q5

  • 2018 Audi Q5 Premium Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DAYB Gas
  • 2018 Audi Q5 Premium Plus Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DAYB Gas
  • 2018 Audi Q5 Prestige Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DAYB Gas
  • 2019 Audi Q5 Premium Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2019 Audi Q5 Premium Plus Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2019 Audi Q5 Prestige Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2020 Audi Q5 Premium Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2020 Audi Q5 Premium Plus Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2020 Audi Q5 Prestige Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2020 Audi Q5 Titanium Premium Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2020 Audi Q5 Titanium Premium Plus Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas
  • 2020 Audi Q5 Titanium Prestige Engine Timing Chain Kit
    Automatic Dual Clutch AWD Sport Utility 2.0L L4 DJYA Gas

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by Stephen
Which tool kit gets used for this generation of engine?
Answer (Posted by FCP Euro Products Team)
Unfortunately I do not have a timing tool for the 4th gen engines at this time.
Question Posted by Stephen
Does the CTA Timing Tool Kit 1023 also work with this timing chain set?
Answer (Posted by FCP Euro Products Team)
No, that tools is for early Gen 2 engines not for the newer motors.
