More Audi Timing Chain Kit - Genuine Audi 06K109158BEKT
Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT Audi Timing Chain Kit - Genuine Audi 06K109158BEKT
Genuine VW Audi
SKU: KIT-06K109158BEKT

Audi Timing Chain Kit - Genuine Audi 06K109158BEKT

A4, A4 Quattro, A5, A5 Quattro, A6

For Models W/ CAED Engine Code

Save for later
Available
Ships in 1 business day
Price each: $982.38
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-06K109158BEKT
FCP Euro ID:
Quality:
Genuine

OE Numbers

06H109467N, 06H109467T, 06H109467AB, 06K109467K, 06H109509AA, 06H109509Q, 06K109469M, 06K109469N, 06K109210, 06K109210AF, 06K109210AE, 06H103483C, 06H103144J, 06H103144F, 06H103144G, 06H103144H, 06H103144K, N10554001, N10554005, N91130301, PAF008944, N91130401, N01473910, N10572403, 06K109158, 06K109158AA, 06K109158AD, 06K109158BE, 06K109158BP, N10470705, N10470703

MFG Numbers

TCV0158, N/A

This Kit Includes

Qty Part SKU Brand Price
1 Engine Timing Chain Tensioner VAG-06K109467K $77.38
1 Engine Timing Chain Guide VAG-06H109509Q $27.23
1 Engine Timing Chain Guide VAG-06K109469M $30.78
1 Engine Timing Chain Guide VAG-06K109469N $21.93
1 Engine Timing Cover CRP-TCV0158 $269.42
1 Engine Timing Cover Gasket VAG-06H103483C $36.71
1 Engine Camshaft Bracket VAG-06H103144K $292.54
2 Torx Bolt OES-N10554005 $5.70
1 Engine Timing Chain Guide Bolt VAG-N91130301 $5.79
2 Engine Timing Chain Guide Bolt OES-N91130401 $4.18
1 Seat Belt Height Adjuster Screw VAG-N10572403 $1.88
1 Engine Timing Chain VAG-06K109158BP $195.10
6 Engine Water Pump Bolt OES-N10470705 $13.74

Product Information

This kit is designed for the infamous P0016 Cam/Crank Correlation Code.

If you are experiencing slow crank or no start we recommend you to scan the vehicle for faults first. If fault P0016 Cam/Crank Correlation fault shows its more then likely its time to replace your timing chain. We recommend you to check base timing, perform cylinder compression, and performed cylinder leak down. If you find low compression or cylinder leak we recommend you to use a bore-scope to check intake & exhaust valves for damage. If the valves are bent you will need to replace them as well.

Diagnosis Procedures To Check Before Repairing Your Timing Chain:

  • Scan Vehicle For Faults
  • Check Base Timing
  • Cylinder Compression Test
  • Cylinder Leak Down Test

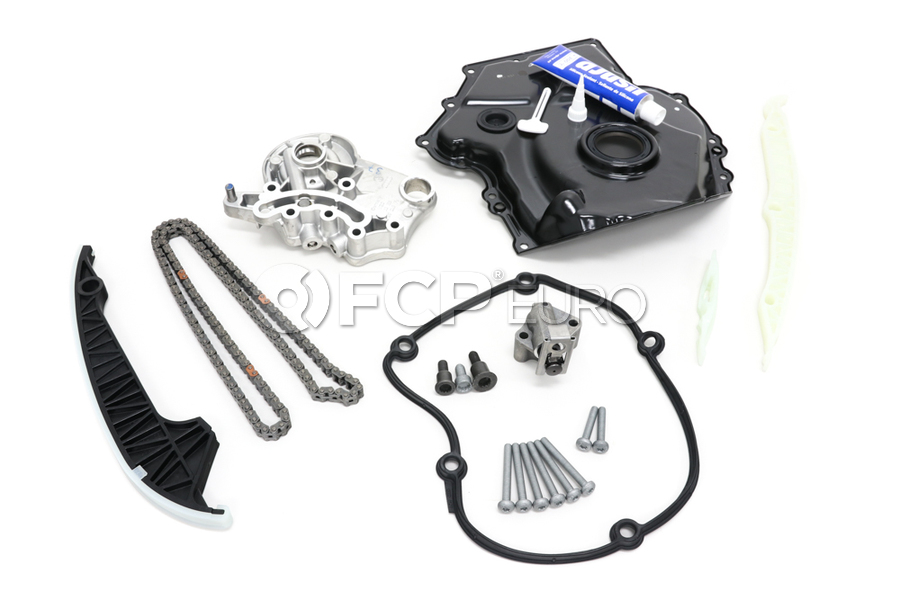

This Timing Chain Kit Includes:

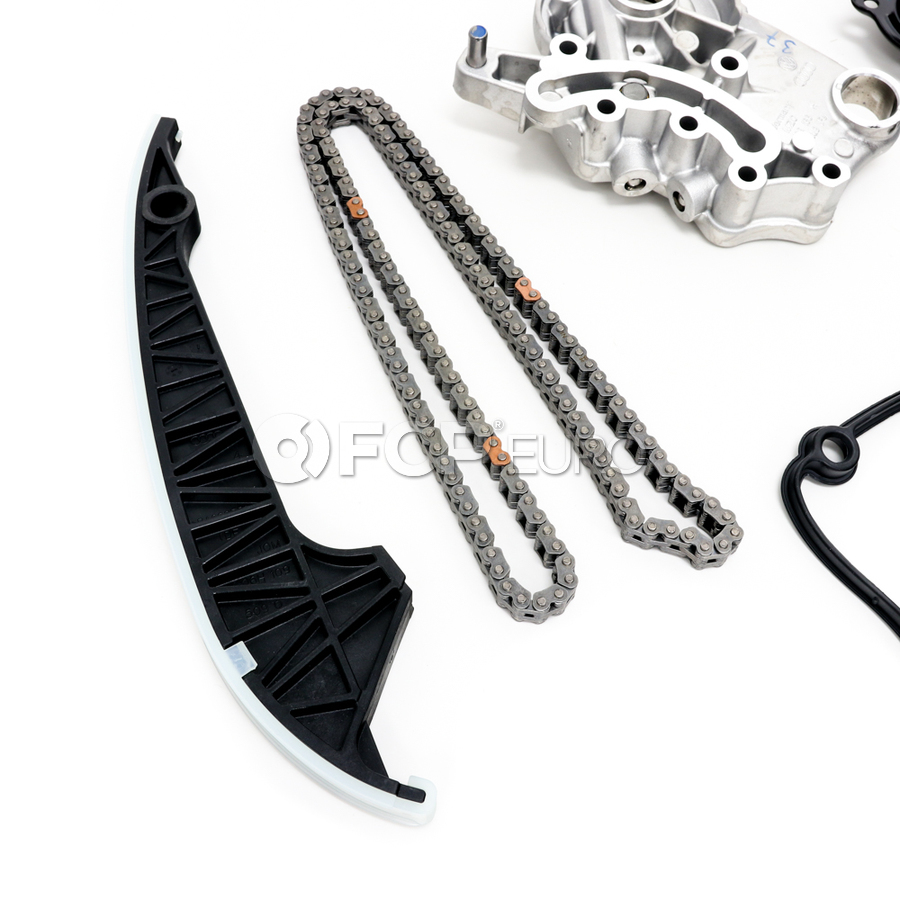

  • Timing Chain (Camshafts To Crank Shaft)

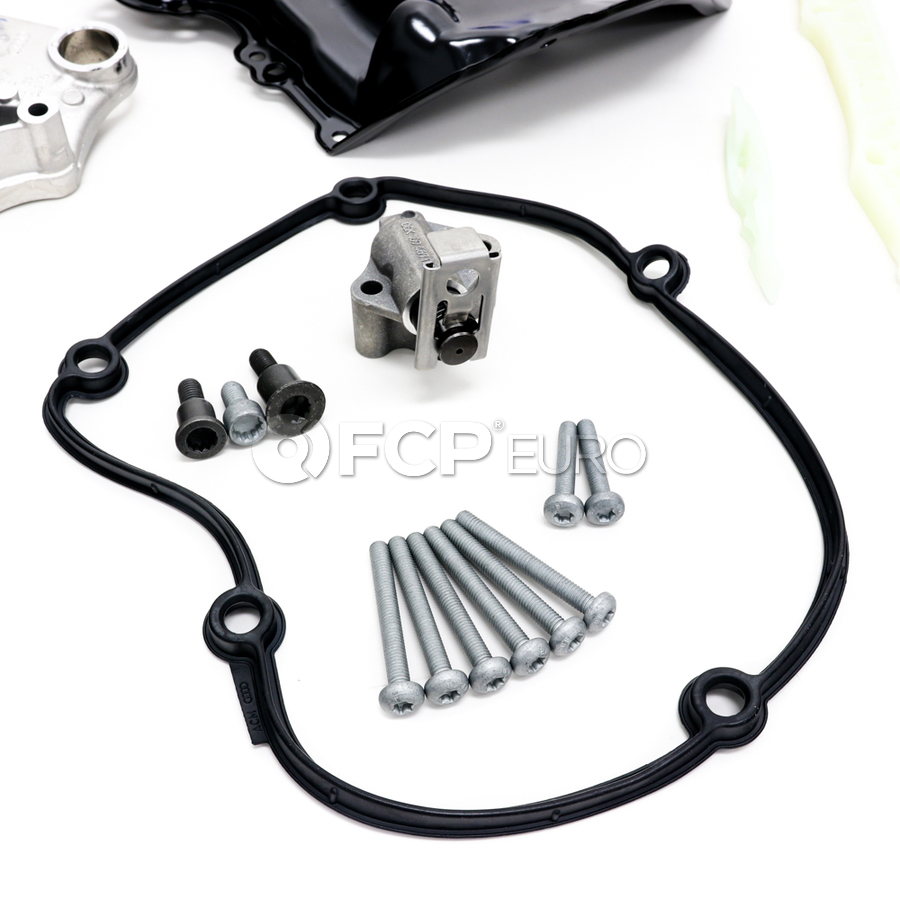

  • Timing Chain Tensioner (Updated Version)

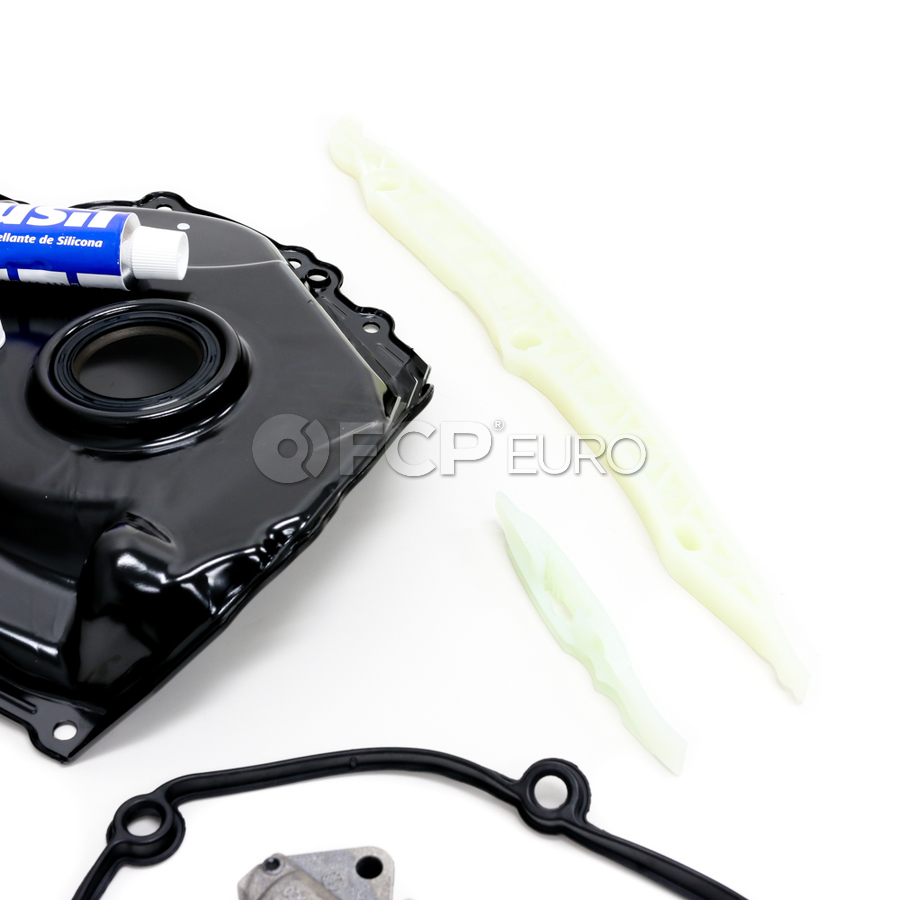

  • Guide Rails

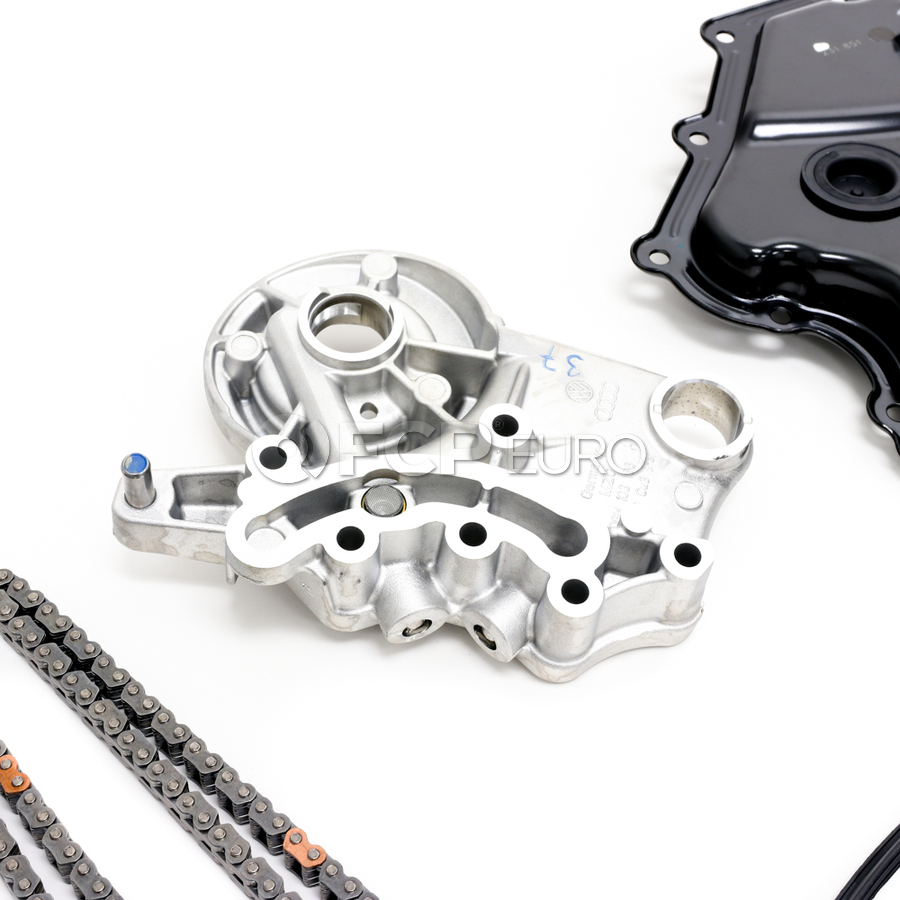

  • Cambridge

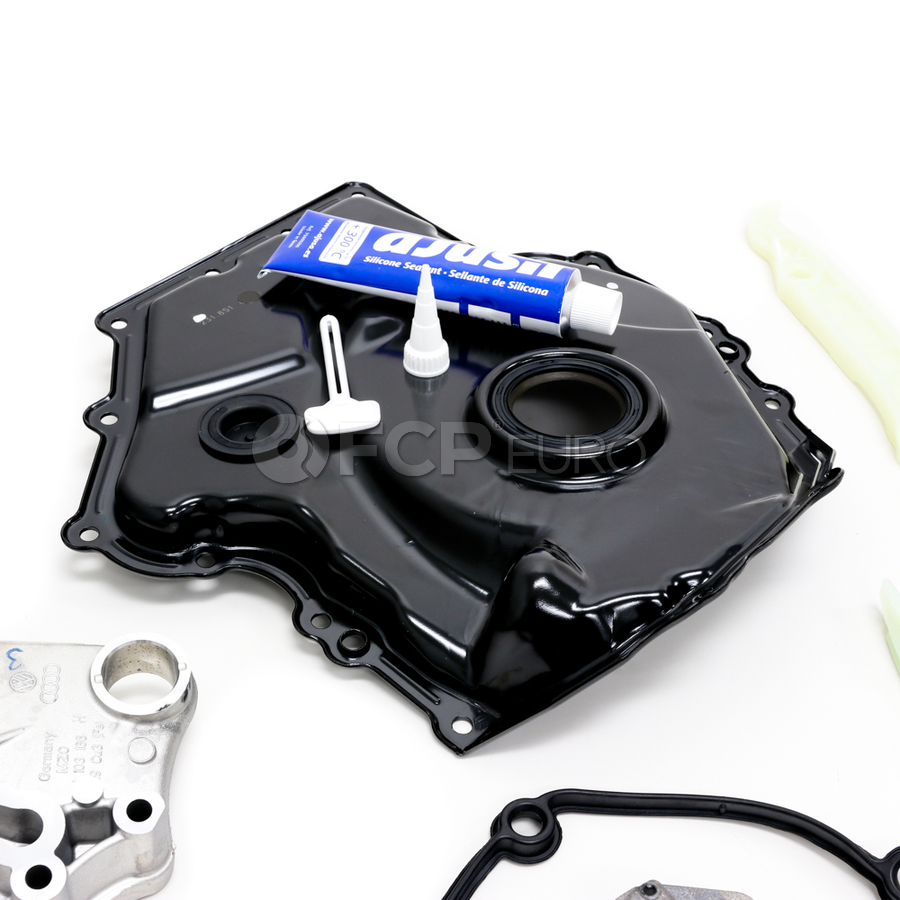

  • Upper Timing Chain Cover Gasket
  • Lower Timing Chain Cover
  • New Hardware To Complete Timing Chain Service
  • Sealant To Seal Lower Timing Chain Cover

Torque Specs:

  • Timing Chain Tensioner Bolts (9 Nm)
  • Timing Chain Tensioner Guide Bolt (20 Nm)
  • Timing Chain Guide Bolts (20 Nm)
  • Cambridge Bolts T30 (9 Nm)
  • Cambridge Bolt Triple Square M6 (8 Nm + 90°) M8 (20 Nm + 90°)
  • Cambridge Bolt That Requires Special Tool T10325 or T103252/1A LEFT HAND THREAD (35 Nm)
  • Lower Timing Chain Cover Bolts (8 Nm)
  • Crankshaft Bolt (150 Nm + 90°)
Engine Timing Chain Kit

An engine timing chain is a crucial component in an internal combustion engine that synchronizes the rotation of the crankshaft and camshafts. It ensures that the engine's valves open and close at the proper times during each cylinder's intake and exhaust strokes, maintaining optimal engine performance. Timing chains are typically made of metal and are designed to last for the life of the engine, though they can wear out or become damaged over time. Damaged or stretched chains can impact the timing on an engine and overwork the tensioner, failures in this system can cause catastrophic engine failure and costly repairs.

Engine Timing Chain Kit Failure Symptoms
  • Noise: A common symptom of a failing timing chain is a rattling or slapping noise coming from the engine, especially during startup or acceleration. This noise may be more pronounced at idle or startup
  • Poor Engine Performance: If the timing chain is stretched, it can lead to decreased power, acceleration problems, or sluggish performance

About Genuine VW Audi

The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VAG to build your car are available as replacement parts under the “Genuine VAG” brand. Manufactured under the direction of VAG, expect excellent quality and a premium price since these parts are available exclusively through the VAG Dealership network.

You may not realize this, but the parts that make up your VAG are not necessarily manufactured by VAG. No cause for concern, as VAG designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VAG for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VAG parts box and find an OEM branded part inside, simply with the addition of a VAG logo.

Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.

Fits These Cars

Audi A4

  • 2014 Audi A4 Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Premium Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Premium Plus Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Prestige Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2016 Audi A4 Premium Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2016 Audi A4 Premium Plus Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas

Audi A4 Quattro

  • 2014 Audi A4 Quattro Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2014 Audi A4 Quattro Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Quattro Premium Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Quattro Premium Plus Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Quattro Prestige Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A4 Quattro Prestige Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAED Gas
  • 2016 Audi A4 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2016 Audi A4 Quattro Premium Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAED Gas
  • 2016 Audi A4 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2016 Audi A4 Quattro Premium Plus Engine Timing Chain Kit
    Manual AWD Sedan 2.0L L4 CAED Gas

Audi A5 Quattro

  • 2014 Audi A5 Quattro Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2014 Audi A5 Quattro Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas
  • 2014 Audi A5 Quattro Cabriolet Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Engine Timing Chain Kit
    Manual AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Manual AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Prestige Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Prestige Engine Timing Chain Kit
    Manual AWD Convertible 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Prestige Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2015 Audi A5 Quattro Prestige Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Engine Timing Chain Kit
    Manual AWD Convertible 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Manual AWD Convertible 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2016 Audi A5 Quattro Premium Plus Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas
  • 2017 Audi A5 Quattro Sport Engine Timing Chain Kit
    Automatic AWD Convertible 2.0L L4 CAED Gas
  • 2017 Audi A5 Quattro Sport Engine Timing Chain Kit
    Manual AWD Convertible 2.0L L4 CAED Gas
  • 2017 Audi A5 Quattro Sport Engine Timing Chain Kit
    Automatic AWD Coupe 2.0L L4 CAED Gas
  • 2017 Audi A5 Quattro Sport Engine Timing Chain Kit
    Manual AWD Coupe 2.0L L4 CAED Gas

Audi A6

  • 2014 Audi A6 Premium Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2014 Audi A6 Premium Plus Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A6 Premium Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A6 Premium Plus Engine Timing Chain Kit
    Automatic CVT FWD Sedan 2.0L L4 CAED Gas

Audi A6 Quattro

  • 2014 Audi A6 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2014 Audi A6 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A6 Quattro Premium Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas
  • 2015 Audi A6 Quattro Premium Plus Engine Timing Chain Kit
    Automatic AWD Sedan 2.0L L4 CAED Gas

Product Reviews

There are no reviews yet. Be the first to leave a review.

Questions & Answers

Ask a question
Question Posted by Nyland
Will this work on the Audi a6 c7 2015 ea888gen 2 tfsi engine?
Answer (Posted by FCP Euro Products Team)
Yes, this kit fits a 2015 Audi A6 C7 2.0T with the CAED engine code. Please verify the engine code or send the full VIN to service@fcpeuro.com before ordering, especially if the vehicle is a non-US-market model.
