More Watch Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3
Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3 Watch
Febi Bilstein
SKU: KIT-06K109158ADKT3

Audi Timing Chain Kit - Febi Bilstein 06K109158ADKT3

Q5

Save for later
Available
In Stock
Price each: $1,049.51
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KIT-06K109158ADKT3
FCP Euro ID:
Quality:
OE

OE Numbers

06K109158, 06K109158AA, 06K109158AD, 06K109158BE, 06K109158BP, 06K109158AC, 06K109158BK, 06H109158E, 06H109158, 06H109158M, 06K109158F, 06K109158H, 06K109158L, 06K109158AF, 06K109158BJ, 06H109509AA, 06H109509Q, 06H109469AP, 06H109469AJ, 06H109467N, 06H109467T, 06H109467AB, 06K109467K, 06K109158A, 06H109158H, 06H109158D, 06K109158BS, 06H109469N, 06H109469AQ, 06H109469AH, 06H109509P, 06H109467AJ, 06H109467AF, 06H109467AR, 06H109467BA, 06K109210, 06K109210AF, 06K109210AE, 06H103483C, 06H103144J, 06H103144F, 06H103144G, 06H103144H, 06H103144K

MFG Numbers

45956, 45953, 46276, 101796, TCV0158, 240.290, 240290, 50007669

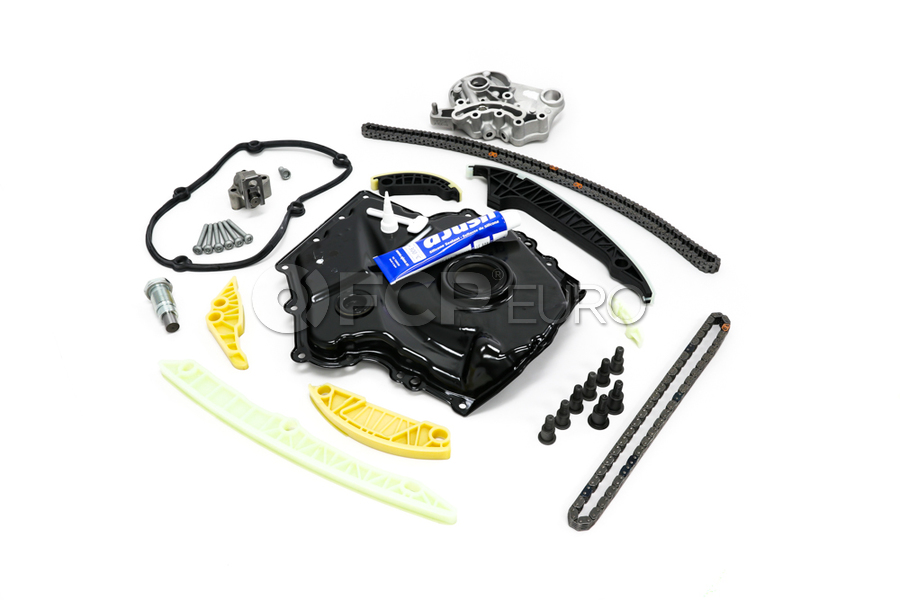

This Kit Includes

Qty Part SKU Brand Price
1 Engine Timing Chain FEB-45956 $91.05
1 Engine Timing Chain Guide VAG-06H109509Q $27.23
1 Engine Timing Chain Guide VAG-06H109469AP $23.83
1 Engine Timing Chain Tensioner VAG-06K109467K $77.30
1 Engine Balance Shaft Chain FEB-45953 $97.99
1 Engine Balance Shaft Chain Guide VAG-06H109469AQ $28.13
1 Engine Balance Shaft Chain Guide VAG-06H109469AH $20.54
1 Engine Balance Shaft Chain Guide VAG-06H109509P $25.41
1 Engine Balance Shaft Chain Tensioner FEB-101796 $98.99
1 Engine Timing Cover CRP-TCV0158 $269.42
1 Engine Timing Cover Gasket ELR-240290 $19.44
1 Engine Camshaft Bracket KOB-50007669 $217.89
2 Engine Timing Chain Guide Bolt VAG-N91130301 $11.58
6 Engine Timing Chain Guide Bolt OES-N91130401 $12.54
1 Seat Belt Height Adjuster Screw VAG-N10572403 $1.88
6 Engine Water Pump Bolt OES-N10470705 $13.74
1 Engine Timing Chain Guide VAG-06H109469T $12.55

Product Information

This kit is designed for the infamous P0016 Cam/Crank Correlation Code.

If you are experiencing slow crank or no start we recommend you to scan the vehicle for faults first. If fault P0016 Cam/Crank Correlation fault shows its more then likely its time to replace your timing chain. We recommend you to check base timing, perform cylinder compression, and performed cylinder leak down. If you find low compression or cylinder leak we recommend you to use a bore-scope to check intake & exhaust valves for damage. If the valves are bent you will need to replace them as well.

Diagnosis Procedures To Check Before Repairing Your Timing Chain:

  • Scan Vehicle For Faults
  • Check Base Timing
  • Cylinder Compression Test
  • Cylinder Leak Down Test

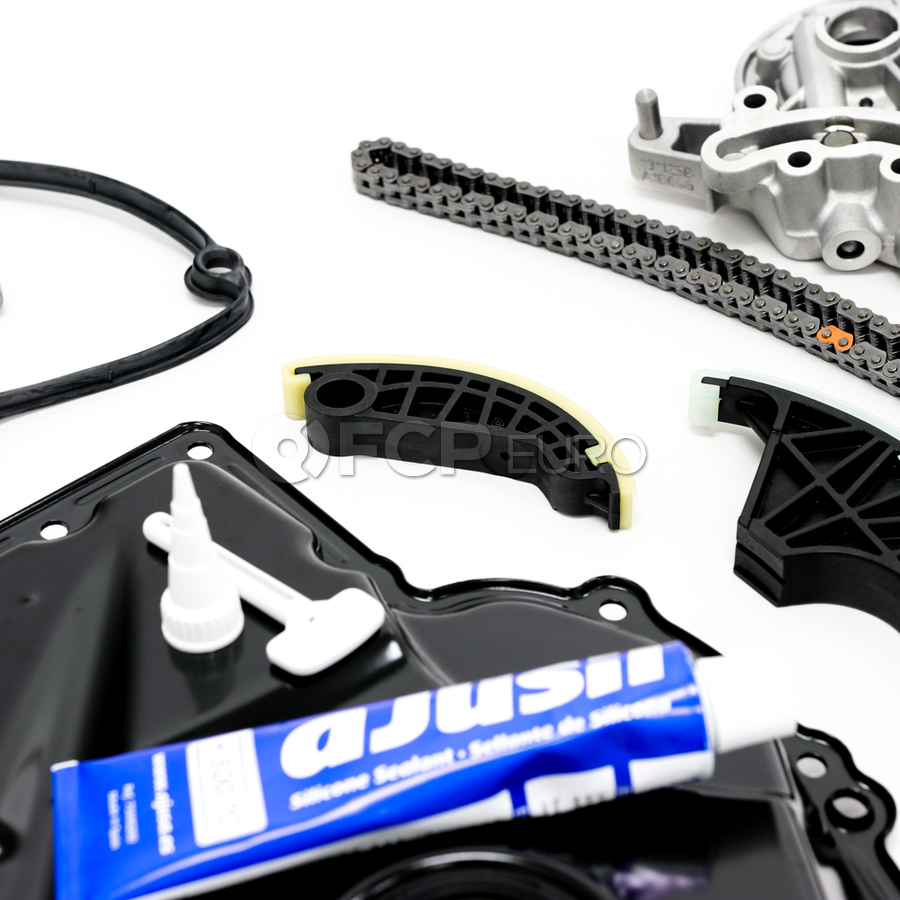

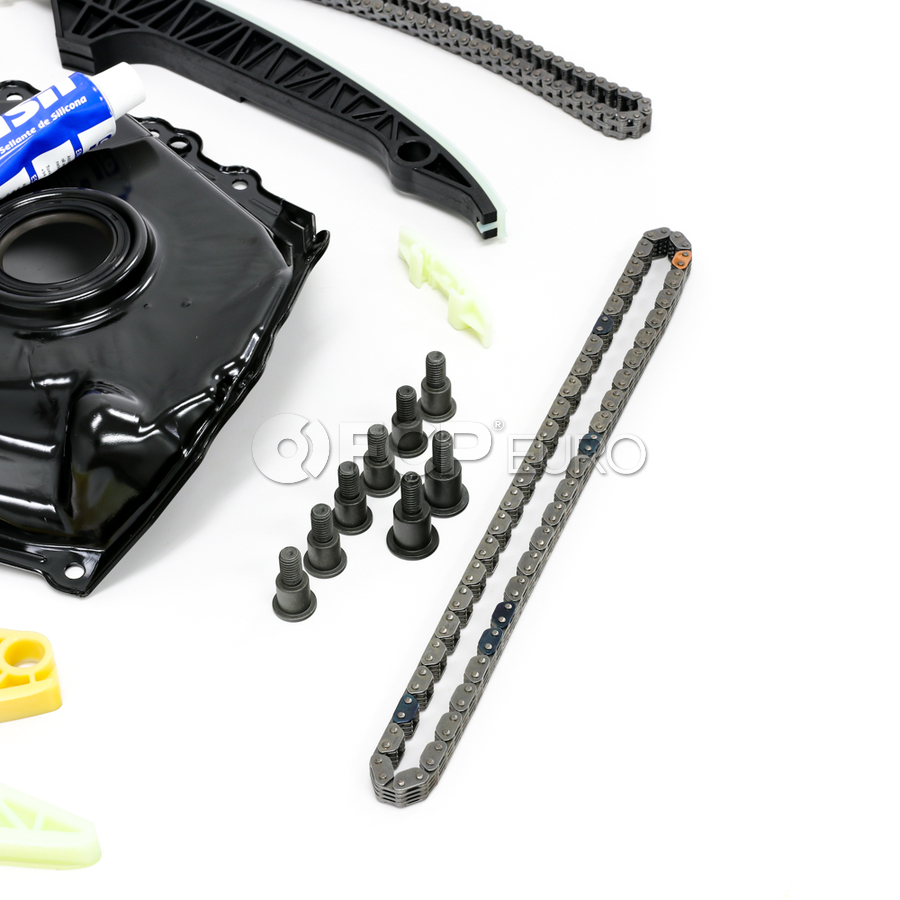

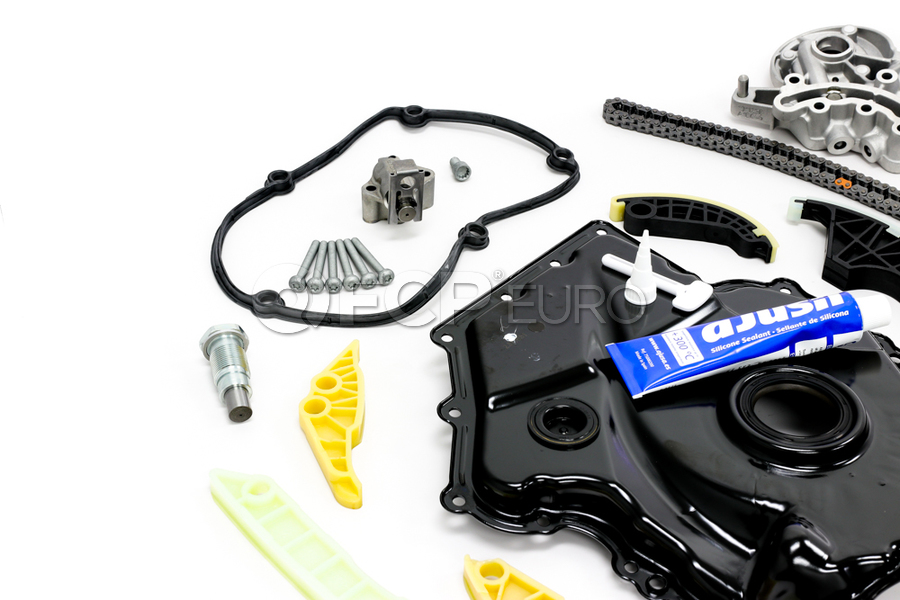

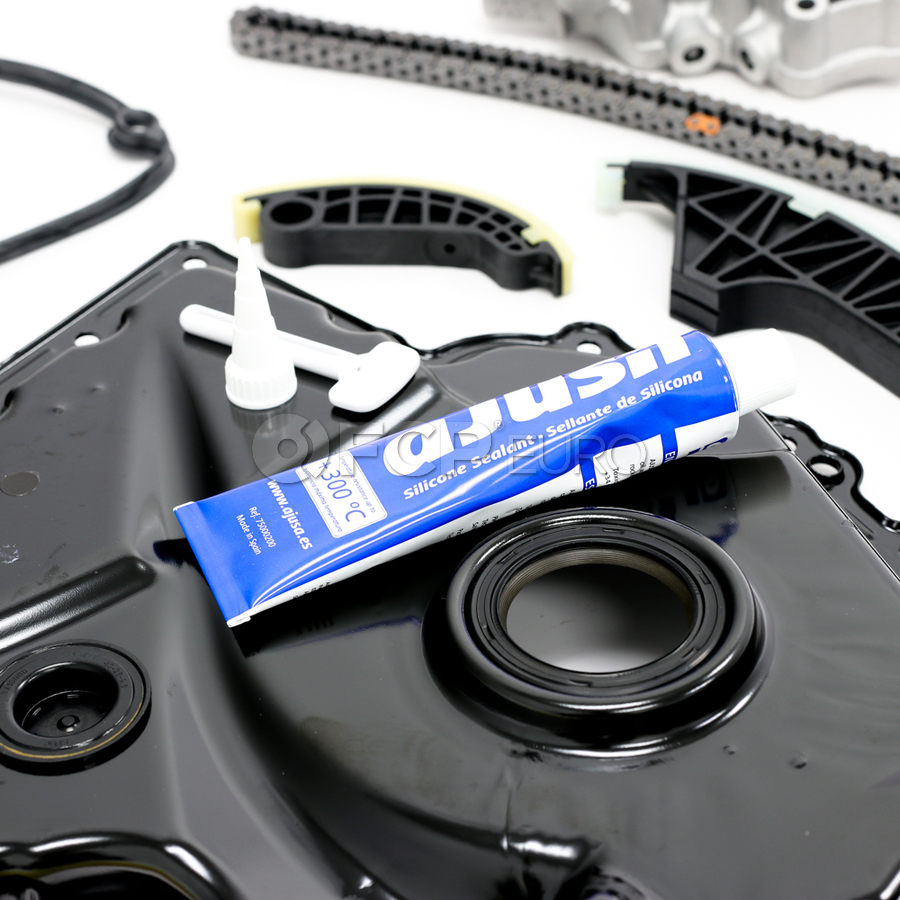

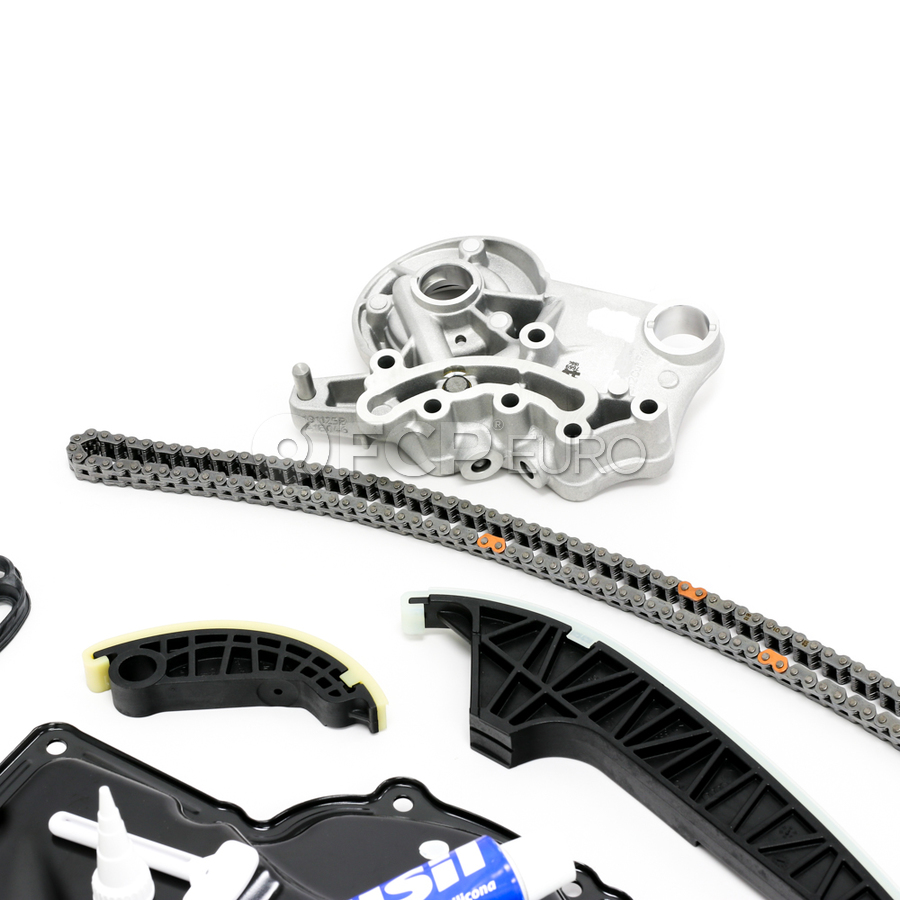

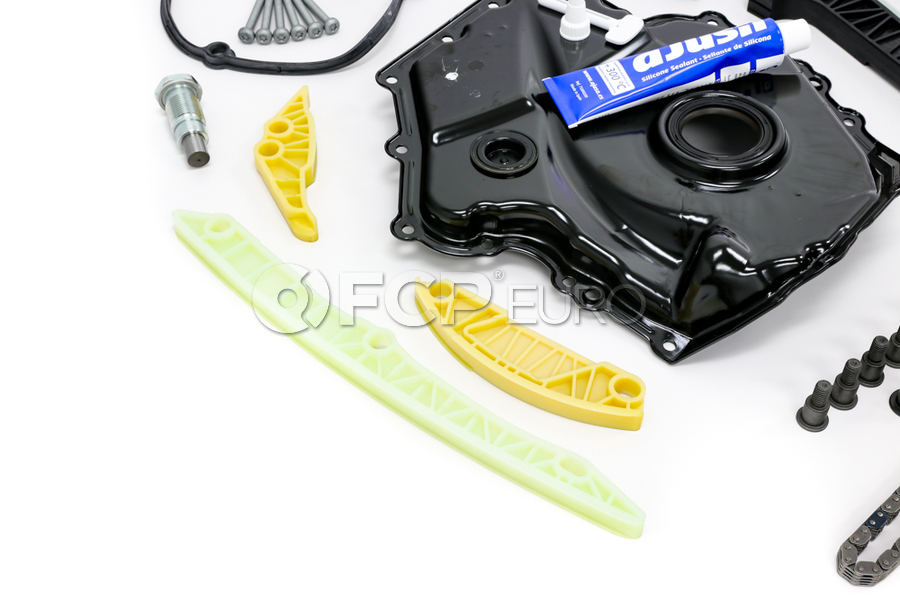

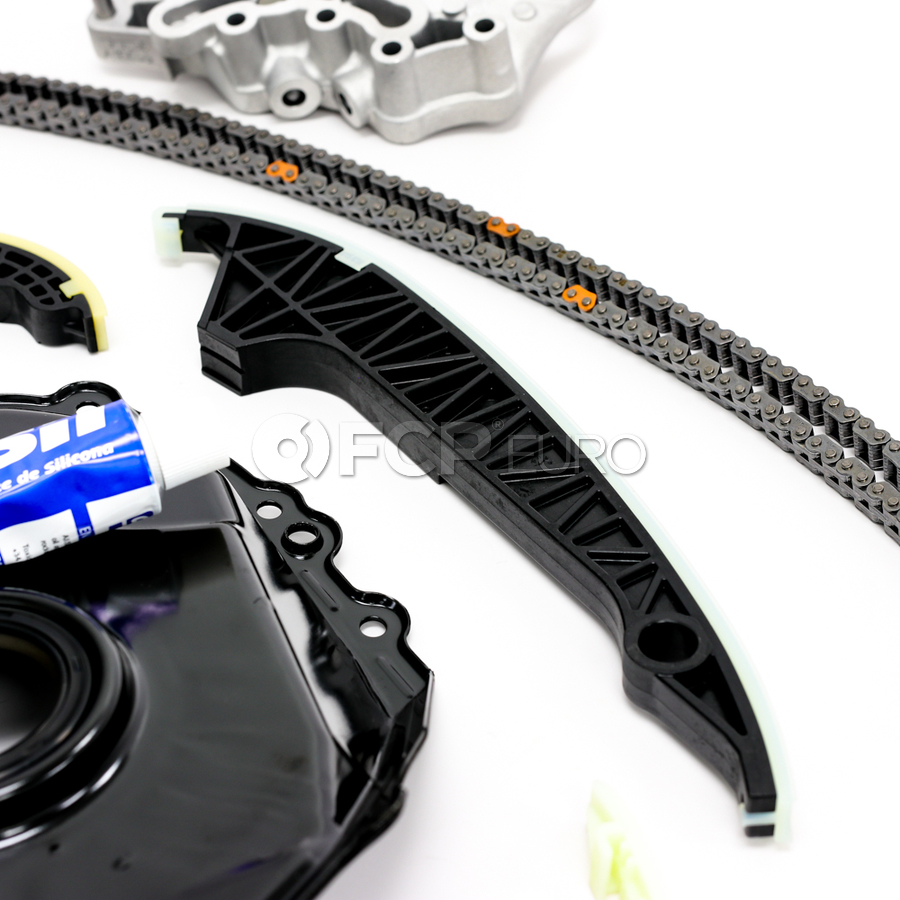

This Timing Chain Kit Includes:

  • Timing Chain (Camshafts To Crank Shaft)
  • Timing Chain Tensioner (Updated Version)
  • Timing Chain For Balanceshafts
  • Guide Rails
  • Cambridge
  • Upper Timing Chain Cover Gasket
  • Lower Timing Chain Cover
  • New Hardware To Complete Timing Chain Service
  • Sealant To Seal Lower Timing Chain Cover

Torque Specs:

  • Timing Chain Tensioner Bolts (9 Nm)
  • Timing Chain Tensioner Guide Bolt (20 Nm)
  • Timing Chain Guide Bolts (20 Nm)
  • Cambridge Bolts T30 (9 Nm)
  • Cambridge Bolt Triple Square M6 (8 Nm + 90°) M8 (20 Nm + 90°)
  • Cambridge Bolt That Requires Special Tool Camshaft Adjusting Socket LEFT HAND THREAD (35 Nm)
  • Lower Timing Chain Cover Bolts (8 Nm)
  • Crankshaft Bolt (150 Nm + 90°)
  • Balanceshaft Timing Chain Guides (20 Nm)
  • Balanceshaft Timing Chain Tensioner (85 Nm)
Engine Timing Chain Kit

An engine timing chain is a crucial component in an internal combustion engine that synchronizes the rotation of the crankshaft and camshafts. It ensures that the engine's valves open and close at the proper times during each cylinder's intake and exhaust strokes, maintaining optimal engine performance. Timing chains are typically made of metal and are designed to last for the life of the engine, though they can wear out or become damaged over time. Damaged or stretched chains can impact the timing on an engine and overwork the tensioner, failures in this system can cause catastrophic engine failure and costly repairs.

Engine Timing Chain Kit Failure Symptoms
  • Noise: A common symptom of a failing timing chain is a rattling or slapping noise coming from the engine, especially during startup or acceleration. This noise may be more pronounced at idle or startup
  • Poor Engine Performance: If the timing chain is stretched, it can lead to decreased power, acceleration problems, or sluggish performance

About Febi Bilstein

Ferdinand Bilstein’s febi brand is a global leader in the replacement parts market, known for offering high-quality alternatives to original equipment (OE) parts. With a range of over 50,000 technical replacement parts for passenger cars, light commercial vehicles, and trucks, febi ensures that consumers and professionals have access to reliable solutions for maintaining and repairing vehicles. The brand is committed to staying at the forefront of automotive technology, providing parts for hybrid, electric, and hydrogen-powered vehicles, and continuously expanding its product offerings to meet the demands of the evolving aftermarket. febi’s global presence spans over 170 countries, supported by advanced logistics centers that ensure fast delivery and product availability worldwide.

A strong focus on quality sets febi apart, as their products match or exceed OE standards, backed by rigorous quality control and in-house manufacturing capabilities. febi offers comprehensive repair solutions for all major vehicle brands and models, ensuring that critical parts are readily available for professional workshops. With a deep-rooted tradition in mobility and a future-oriented approach, febi is a trusted partner in keeping vehicles performing optimally, regardless of their powertrain or application.

Fits These Cars

Audi Q5

  • 2013 Audi Q5 Hybrid Prestige Engine Timing Chain Kit
    Automatic AWD Sport Utility 2.0L L4 CHJA Full hybrid ev-gas (fhev)
  • 2014 Audi Q5 Hybrid Prestige Engine Timing Chain Kit
    Automatic AWD Sport Utility 2.0L L4 CHJA Full hybrid ev-gas (fhev)
  • 2015 Audi Q5 Hybrid Prestige Engine Timing Chain Kit
    Automatic AWD Sport Utility 2.0L L4 CHJA Full hybrid ev-gas (fhev)
  • 2016 Audi Q5 Hybrid Prestige Engine Timing Chain Kit
    Automatic AWD Sport Utility 2.0L L4 CHJA Full hybrid ev-gas (fhev)
