More Audi Suspension Kit - Bilstein 48-153690
Bilstein Clubsport
SKU: BIL-48153690

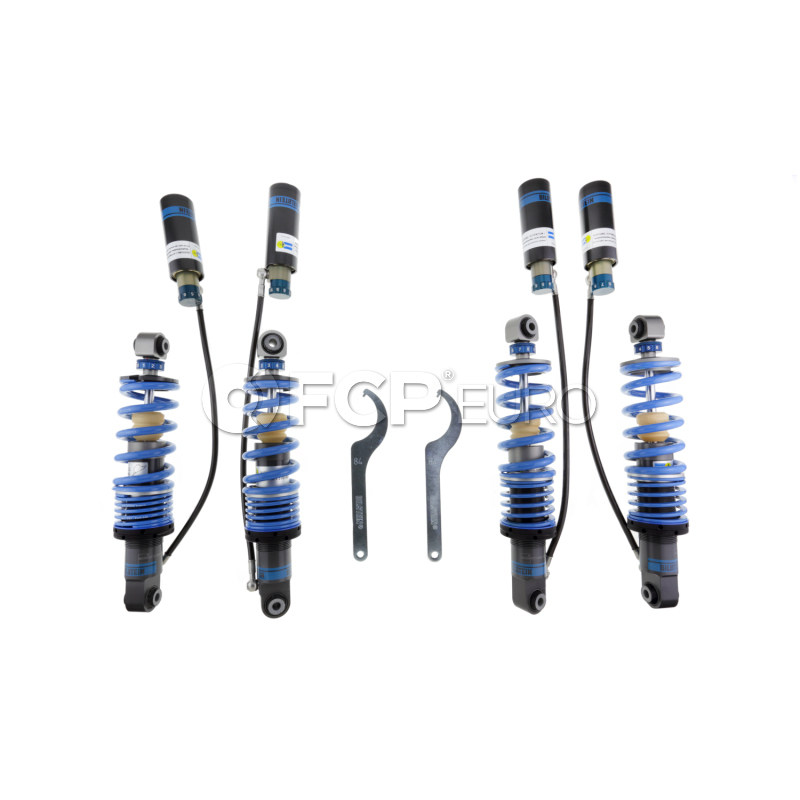

Audi Suspension Kit - Bilstein 48-153690

R8

Save for later
Unavailable
No Longer Available
Price each: $5,560.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
BIL-48153690
FCP Euro ID:
186756
GTIN / UPC:
00651860624709
Made in:
Germany
Quality:
Performance

OE Numbers

N/A

MFG Numbers

48153690, 48-153690

Product Information

Bilstein Clubsport

  • Front Lowered Height: 10-25mm, up to 940kg Axle Load
  • Rear Lowered Height: 20-35mm, up to 1095kg Axle Load
Coilover Set

Suspension coilovers are a type of car suspension system that combines a coil spring and a shock absorber (damper) into a single, integrated unit. The name comes from “coil” (the spring) and “over” (meaning the shock is inside or over the spring). Coilovers are typically adjustable, allowing you to change ride height, stiffness, and sometimes damping settings, depending on the model.

Benefits of Coilovers:

  • Adjustable ride height: Coilover suspension typically features a threaded adjustable spring platform, allowing adjustment of ride height for better handling, aesthetics, or clearance.
  • Improved Handling and Stability: Coilovers usually offer better cornering performance and reduced body roll compared to stock suspension.
  • Customizable Ride Comfort: Many coilovers allow you to tune stiffness and damping to balance comfort and performance.
  • Better Weight Distribution: Some coilovers can be adjusted corner-by-corner to fine-tune handling balance.
  • Enhanced Appearance: Lowering the car can improve the stance and overall look.
  • Versatility for Different Driving Conditions: Ideal for street, track, or off-road setups depending on the coilover design.

About Bilstein Clubsport

The Bilstein Clubsport suspension system is a fully street-legal, TÜV-certified high-end coilover package that is also designed for uncompromising use in the fields of racing and clubsport. This kit combines the tried-and-tested Bilstein mono-tube gas pressure technology with the highest levels of engineering from the field of motorsport.

The 2-way adjustable suspension system, complete with an integrated reservoir, provides a significant weight advantage for racing and clubsport use compared to systems with external reservoirs. Rebound and compression forces can be adjusted independently via the two easily accessible motorsport-proven aluminum adjustment dials inside the vehicle, enabling the suspension setup to be changed quickly and accurately at all times.

With 10 click positions for rebound and 10 click positions for compression, a wide range of handling options can be selected in just seconds, allowing for instant back-to-back set-up modification and testing. The combination of adjustable wheel camber and ride height with the 100 possible valving settings, make it possible to fine-tune the suspension setup based on the specific racetrack, weather conditions, and vehicle weight, as well as driver and tire specifications.

Product Benefits:

  • 2-way damping force adjuster for independent adjustment of rebound and compression forces
  • Aluminum adjustment wheels with clearly identified tuning settings from 1 (soft) to 10 (hard)
  • Color-coding: red for rebound force, blue for compression force
  • Manually adjustable without additional tools
  • Wheel camber is adjustable by aluminum support bearing
  • Weight advantage by eliminating the need for an external oil reservoir
  • Bilstein-monotube technology developed through years of motorsport involvement
  • Spring plates and lock nuts made from special aluminum alloy
  • Quality built racing springs
  • Extremely easy to install and simple to use
  • Surface coating using Triple-C-Technology® for long-lasting corrosion resistance

Fits These Cars

Audi R8

  • 2008 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 BYH Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2009 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 BYH Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2009 Audi R8 Coilover Set
    Manual AWD Coupe 5.2L V10 BUJ Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2010 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 BYH Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2010 Audi R8 Coilover Set
    Manual AWD Coupe 5.2L V10 BUJ Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2011 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2011 Audi R8 Coilover Set
    Manual AWD Coupe 5.2L V10 BUJ Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2011 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2011 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 5.2L V10 BUJ Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2012 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2012 Audi R8 Coilover Set
    Manual AWD Coupe 5.2L V10 BUJ Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2012 Audi R8 GT Coilover Set
    Manual AWD Coupe 5.2L V10 CMPA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2012 Audi R8 GT Spyder Coilover Set
    Manual AWD Convertible 5.2L V10 CMPA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2012 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2012 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 5.2L V10 BUJ Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Coilover Set
    Manual AWD Coupe 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Plus Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 CTPA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Plus Coilover Set
    Manual AWD Coupe 5.2L V10 CTPA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2014 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Coilover Set
    Manual AWD Coupe 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Coilover Set
    Manual AWD Coupe 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Plus Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 CTPA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Plus Coilover Set
    Manual AWD Coupe 5.2L V10 CTPA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 4.2L V8 CNDA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
  • 2015 Audi R8 Spyder Coilover Set
    Manual AWD Convertible 5.2L V10 CTYA Gas
    Notes: Only for Models W/O Electronic Adjustable Suspension.
