More Audi Variant 5 Coilover Kit - KW Suspensions 309100AN
KW
SKU: KWS-309100AN

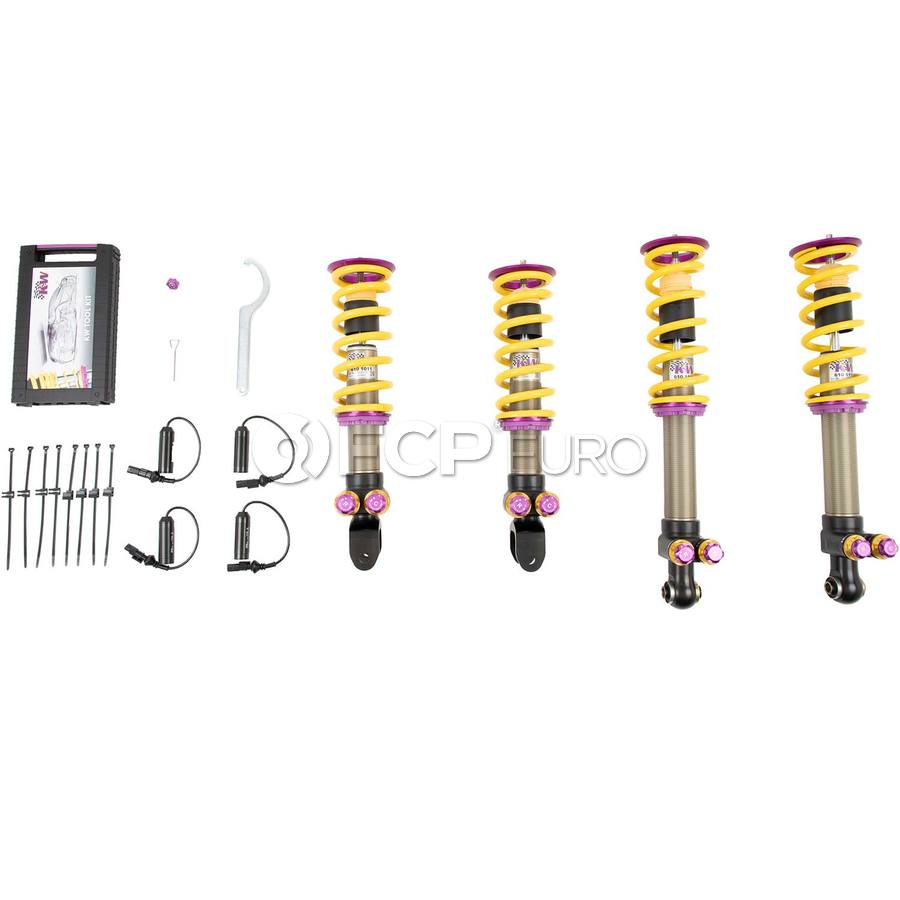

Audi Variant 5 Coilover Kit - KW Suspensions 309100AN

R8

4 Way Adjustable coilovers with low & highispeed compression & rebound control. Includes Mag Ride Delete Kit.

Save for later
Available
Ships in 2-3 weeks
MAP
Price each: $13,794.00
Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for your core charge, details regarding the return will be emailed to you once you place the order. Note: The customer is responsible for the cost of return shipping.
QTY
Make sure this fits your car
Validate fitment
To ensure fitment and browse only products that fit, please select a vehicle first.
What does this include?

Description

Details

SKU:
KWS-309100AN
FCP Euro ID:
897701
GTIN / UPC:
00840134913001
Made in:
Germany
Quality:
Performance

OE Numbers

N/A

MFG Numbers

309100AN

Product Information

By launching the new KW V5 coilover suspension, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and modular design with damper valves connected in series. The KW V5 assures precise and fast damping without delay in sports cars and super sports cars. The shock absorbers and valves react directly, even with small spring travel, minimal steering movements, and minor road undulations. Every driving maneuver and every input, such as those generated during braking, acceleration, steering, load changes, and undulations, are damped much more precisely. The KW Solid Piston dampers provide much more platform support to the chassis than conventional dampers and thus, depending on the vehicle body allow for lower spring rates to be used. The KW V5 with adjustable KW SPCLH-A (KW Solid Piston Compression Low- and Highspeed Adjustable) compression damping and the KW SPRLH-A (KW Solid Piston Rebound Low- and Highspeed Adjustable) rebound damping offers significant added values: more sensitive damping, cavitation-free function, precise high-frequency damping, low-pressure gas range from 6 to 10 bar and low hysteresis. The low- and high-speed valve units in the KW V5 coilover suspension, which are built-in series with different valve spring types and main valves, offer the freedom to individually adjust the compression and rebound damping with 13 exact clicks (14 characteristic curves) each in the low- and high-speed range. The KW Solid Piston Technology can also be used to cover a large force range when designing the characteristic curves; all the more reason to enable a completely new type of harmonious damping. The KW V5 allows a maximum or individual lowering within the tested adjustment range. Due to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the continuous lowering can be varied quickly and easily, even after the years.

Lowering Amount:

  • Front: 0" - 0.8"
  • Rear: 0.4" - 1.2"

Features:

  • Each damper is dyno tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.
  • KW suspensions V5 coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany.
  • Road legal motorsports technology featuring independent rebound and compression adjustability and application specific spring and damper tuning resulting in unparalleled street performance.

Fits These Cars

Audi R8

  • 2017 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 CSPB Gas
    Notes: For Models w/ Magnetic Ride
  • 2017 Audi R8 Plus Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 CSPA Gas
    Notes: For Models w/ Magnetic Ride
  • 2017 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 CSPB Gas
    Notes: For Models w/ Magnetic Ride
  • 2018 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 DKAB Gas
    Notes: For Models w/ Magnetic Ride
  • 2018 Audi R8 Plus Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 DKAA Gas
    Notes: For Models w/ Magnetic Ride
  • 2018 Audi R8 Plus Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 DKAA Gas
    Notes: For Models w/ Magnetic Ride
  • 2018 Audi R8 RWS Coilover Set
    Automatic Dual Clutch RWD Coupe 5.2L V10 DKAB Gas
    Notes: For Models w/ Magnetic Ride
  • 2018 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 DKAB Gas
    Notes: For Models w/ Magnetic Ride
  • 2020 Audi R8 Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 DKAC Gas
    Notes: For Models w/ Magnetic Ride
  • 2020 Audi R8 Performance Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 DKAA Gas
    Notes: For Models w/ Magnetic Ride
  • 2020 Audi R8 Performance Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 DKAA Gas
    Notes: For Models w/ Magnetic Ride
  • 2020 Audi R8 Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 DKAC Gas
    Notes: For Models w/ Magnetic Ride
  • 2021 Audi R8 Performance Coilover Set
    Automatic Dual Clutch AWD Coupe 5.2L V10 DKAA Gas
    Notes: For Models w/ Magnetic Ride
  • 2021 Audi R8 Performance Spyder Coilover Set
    Automatic Dual Clutch AWD Convertible 5.2L V10 DKAA Gas
    Notes: For Models w/ Magnetic Ride
