Audi Engine Oil Change Kit - Motul 079198405EKT77

High-performance 100% Synthetic lubricant specially designed for the latest generation of Diesel and Gasoline engines, Euro 4, 5 or 6 emission regulation compliant, requiring an engine oil with high HTHS (> 3.5 mPa.s) viscosity and "Mid SAPS" with reduced content of Sulfated Ash (≤ 0.8%), Phosphorus (0.07% ≤ x ≤ 0.09%) and Sulfur (≤ 0.3%). Compatible with catalytic converters (CAT), Diesel Particulate Filters (DPF), and SCR (Selective Catalyst Reduction). Approved and recommended engine oil for the latest generation of BMW, CHRYSLER, FIAT, MERCEDES, PORSCHE, and VAG (VW, Audi, Seat, Skoda) vehicles for its EFE - Extra Fuel Economy properties. Suitable also for any type of Diesel or Gasoline engine calling for ACEA C3 lubricant in 0W-30.Before use always refer to the owner manual or handbook of the vehicle.

OEM Approvals:

• BMW LL-04
• MERCEDES-BENZ MB-Approval 229.52
• PORSCHE C30
• VW 504 00 / 507 00

Standards

• ACEA C3

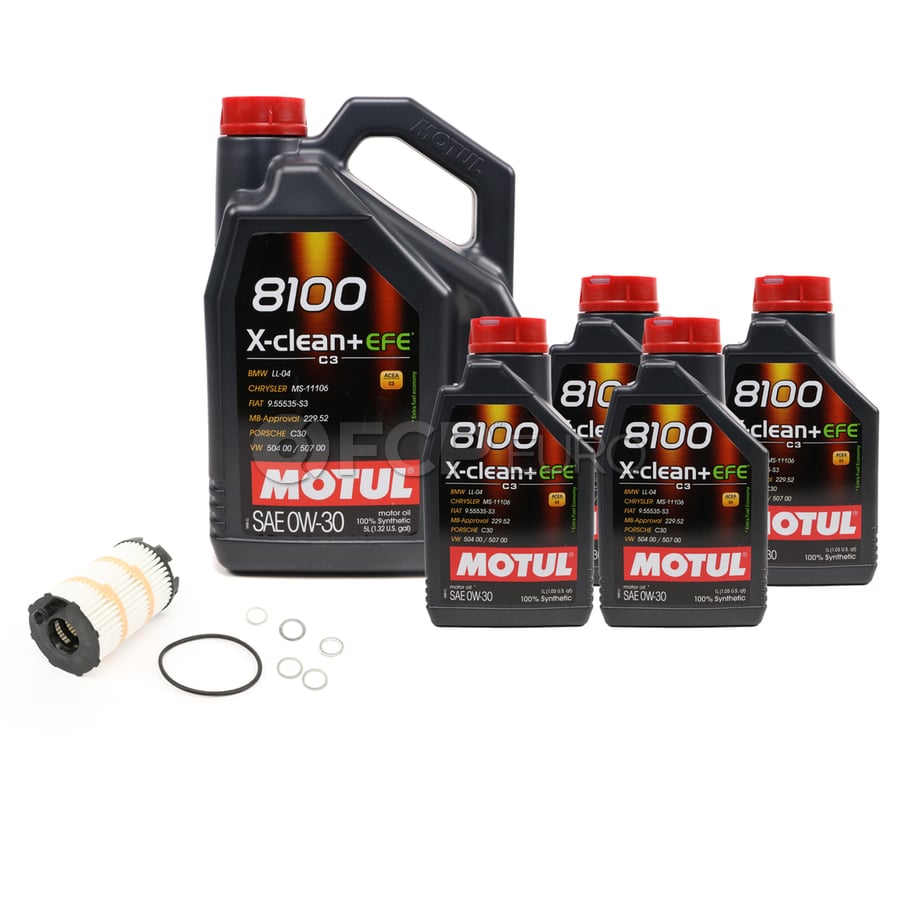

This Kit Includes:

• 9L of Motul 0W-30 8100 X-CLEAN+ EFE Engine Oil (8.3L / 8.8qt Filling Capacity)
• Engine Oil Filter
• Drain Plug Washers (SEE BELOW)

Oil Change Process and Torque Specifications

Drain Plug Opening Sequence:

• Loosen and Remove Oil Drain Plug from Oil Reservoir Line - Replace Seal (N-013-812-8) and Tighten Oil Drain Plug
• Loosen and Remove Oil Drain Plug from Sealing Flange - Replace Seal (N-013-806-3) and Tighten Oil Drain Plug
• Loosen and Remove Oil Drain Plug from Oil Pump (Lower) - Replace Seal (N-013-811-5) and Tighten Oil Drain Plug
• Loosen and Remove Oil Drain Plug from Oil Pump (Side) - Replace Seal (N-013-811-5) and Tighten Oil Drain Plug
• Loosen and Remove Oil Drain Plug from Oil Cooler - Replace Seal (N-013-815-7) and Tighten Oil Drain Plug

Torque Specification(s):

• Oil Reservoir Line Drain Plug - N-106-379-01 - 10 Nm
• Sealing Flange Drain Plug - N-911-194-01 - 12 Nm
• Oil Pump (Lower) Drain Plug - N-016-024-3 - 10 Nm
• Oil Pump (Side) Drain Plug - N-016-024-3 - 10 Nm
• Oil Cooler Drain Plug - N-029-701-4 - 22 Nm
• Oil Filter Housing Cover - 079-115-433-D - 25 Nm

Filling Procedure

• Fill the Oil Reservoir with 7L of Engine Oil.
• Start the engine and let it idle for about 30 seconds.
• Fill an additional 1.3L of Engine Oil in the Oil Reservoir.
• Verify Engine Oil Level via MMI after 2 minutes of idle, verifying Oil Temperature is between 100° to 110° and the vehicle has been turned off for an additional 2 minutes. Ensure the vehicle is on level ground while checking oil levels.
