Audi Air Intake Kit - 034Motorsport 0341081012

034Motorsport is pleased to introduce the P34 Cold Air Intake System for B9 Audi A4/Allroad & A5!

Significant effort went into developing this comprehensive performance intake solution for the longitudinal EA888 2.0T Gen 3 engine found in the latest generation Audi A4/Allroad & A5. Subsequently, the P34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful airbox design.

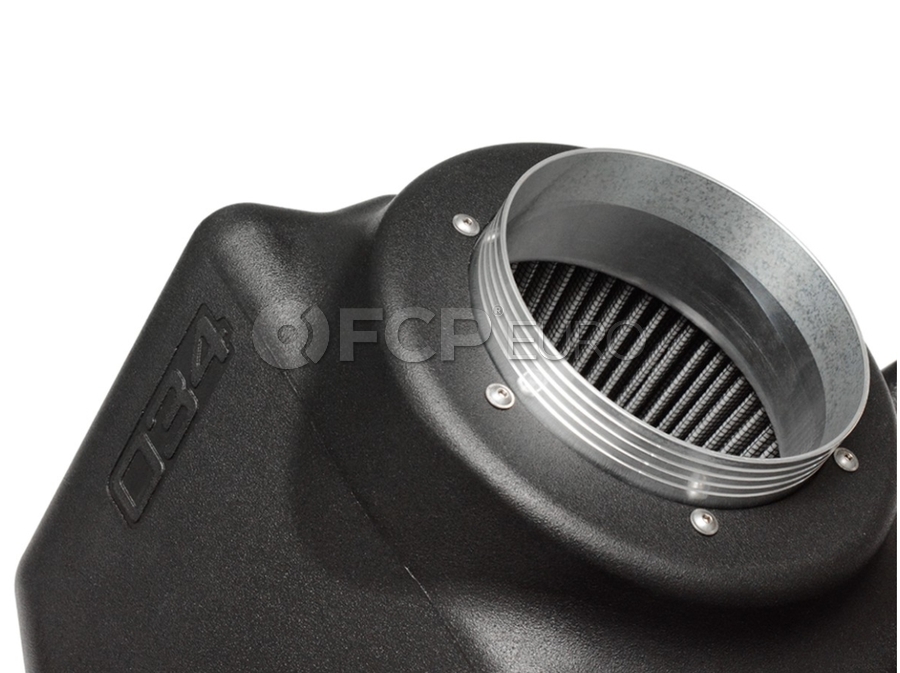

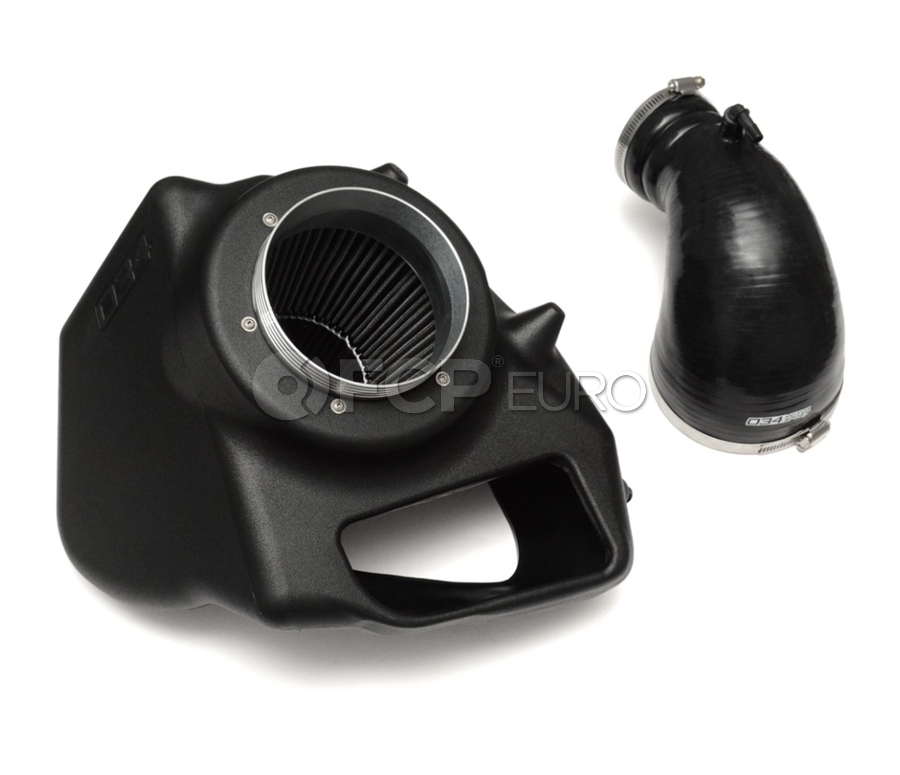

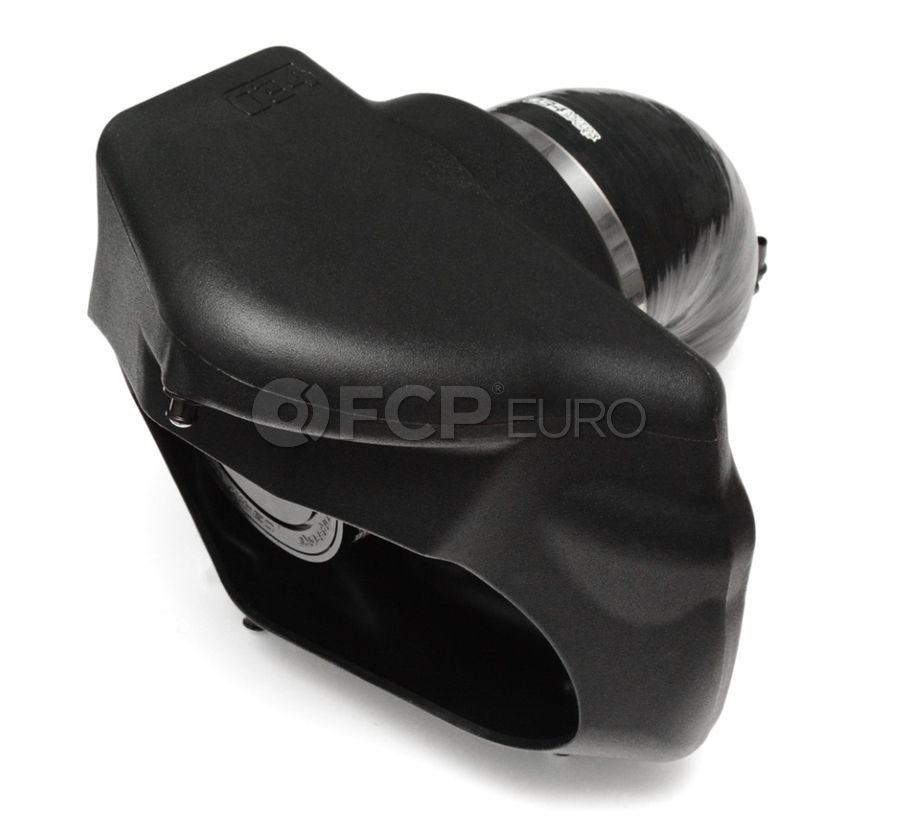

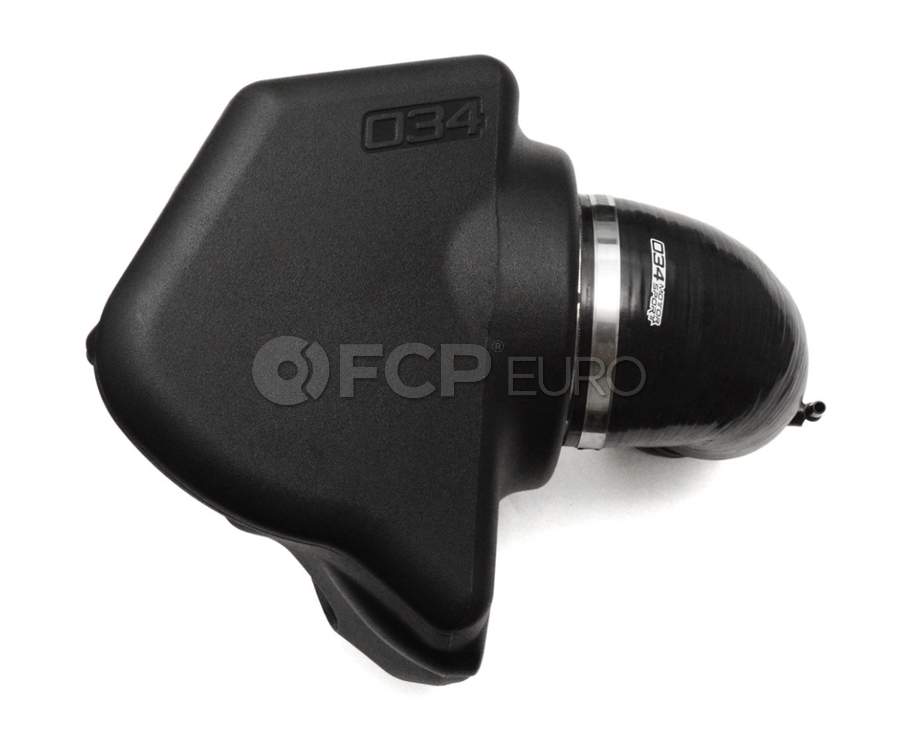

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the P34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a CNC-machined billet aluminum velocity stack feeding a reinforced silicone turbo inlet pipe.

P34 COLD AIR INTAKE SYSTEM FEATURES

• Developed In-House by 034Motorsport's Engineering Team
• Dyno-Proven Horsepower & Torque Gains
• Increased Airflow to Turbocharger Inlet
• Enhanced Engine & Induction Sounds
• Improved Throttle Response
• Superb Fit & Finish to Match Factory Engine Bay
• Stealthy OEM+ Design Utilizes Factory Inlet & Heat Shield

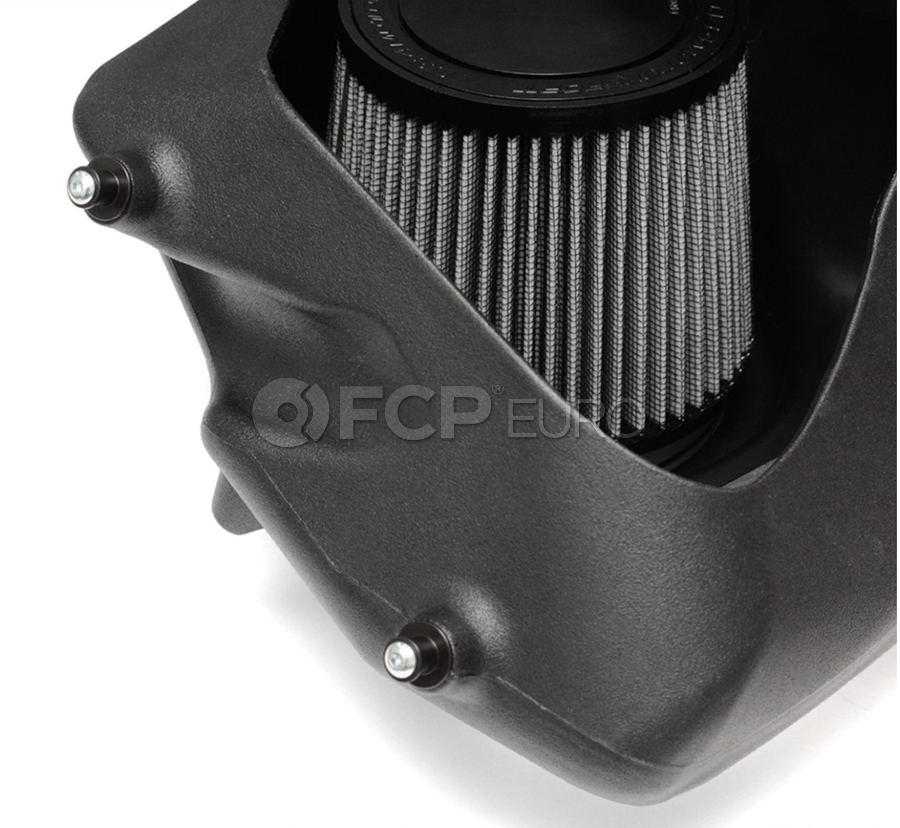

• Massive 5" Inlet Conical Air Filter
• CNC-Machined Billet Aluminum Velocity Stack
• Large-Diameter CFD-Optimized Turbo Inlet Hose
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

DYNO-PROVEN PERFORMANCE GAINS

The P34 Cold Air Intake System for B9 Audi A4/Allroad & A5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the fruition of this design approach, the P34 Cold Air Intake System yields a measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

PEAK HORSEPOWER & TORQUE

Stock Intake: 253 Horsepower / 270 Foot-Pounds of Torque P34 Intake: 262 Horsepower / 274 Foot-Pounds of Torque PEAK GAINS IN HORSEPOWER & TORQUE

Peak Horsepower Gain: 10 HP @ 6,100 RPM Peak Torque Gain: 8 FT-LBS @ 6,100 RPM PRESSURE DROP REDUCTION

Stock Intake: Peak Pressure Drop of 0.58 PSI at 6,300 RPM P34 Intake: Peak Pressure Drop of 0.10 PSI at 6,300 RPM

Installation Instruction

• PDF
